Doc# E149703 V.1.11 QS - 2
Shark® 200 Meter Quickstart

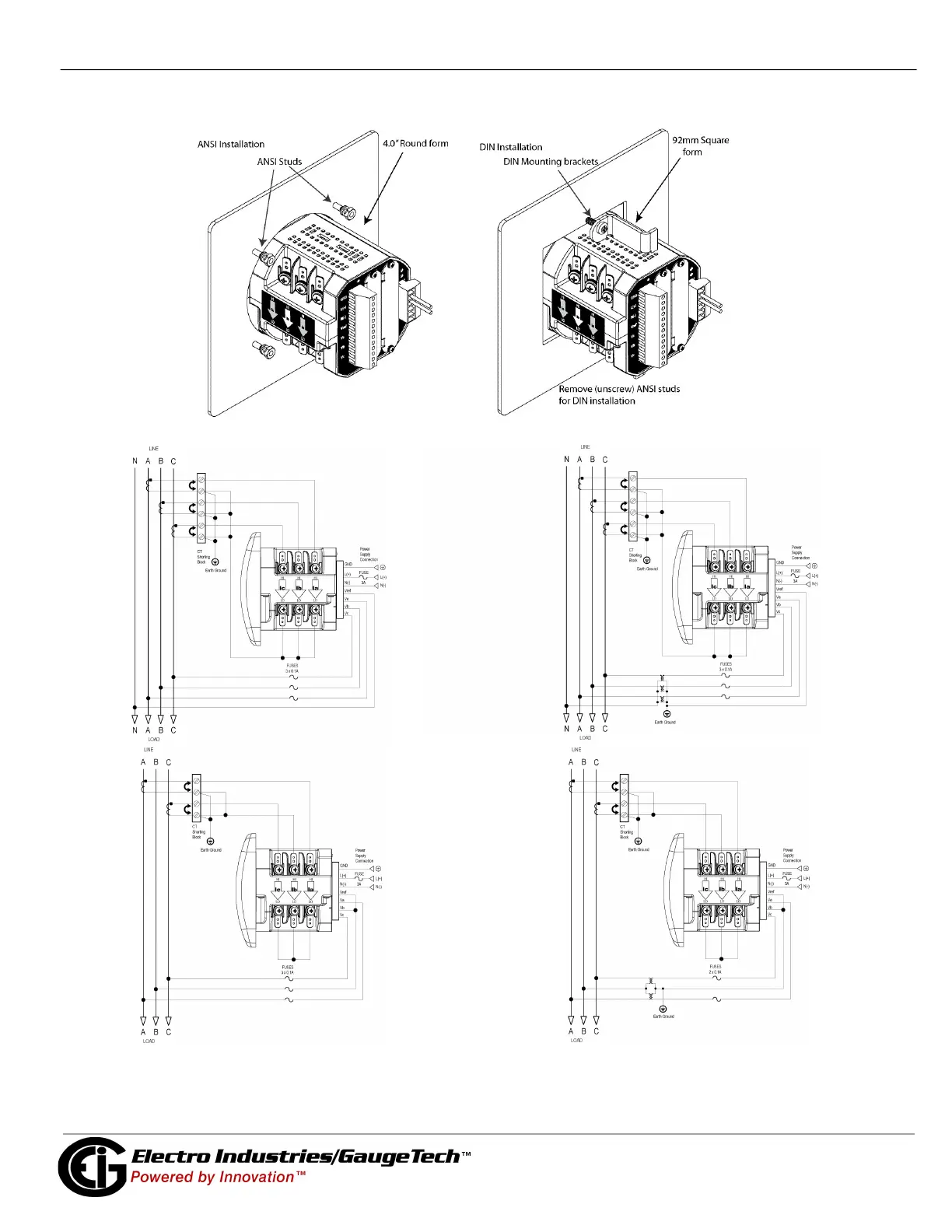

Mechanical Installation
Electrical Installation: Select diagram for your application.
NOTE: Other wiring configurations are available. See the Shark 200 meter User Manual (see page QS-
1 for the download link).
WYE direct, 3
phase, 4 wire
Delta direct, 3
phase, 3 wire
NOTE: Do not overtighten nuts. The maximum installation torque is 0.4 Newton-Meter.
WYE with PTs,
3 phase, 4 wire
Delta with PTs, 3
phase, 3 wire
