Sharkoon Quickstore Portable - Device Overview; Installing the Hard Disk Drive

QUICKSTORE PORTABLE USB3.0
A – QuickStore Portable in
  respectiveversion(black,
  mirrored,blue,redorsilver)
B – Backupbutton:
pressing this button starts
a backup process with the
  pre-denedsettings(see
  chapter7)
A – Case cover lock
A – Case cover
A – SATAconnector(dataand
  power)
B – HDD mounting bay
  (forone2.5"-SATAHDD)

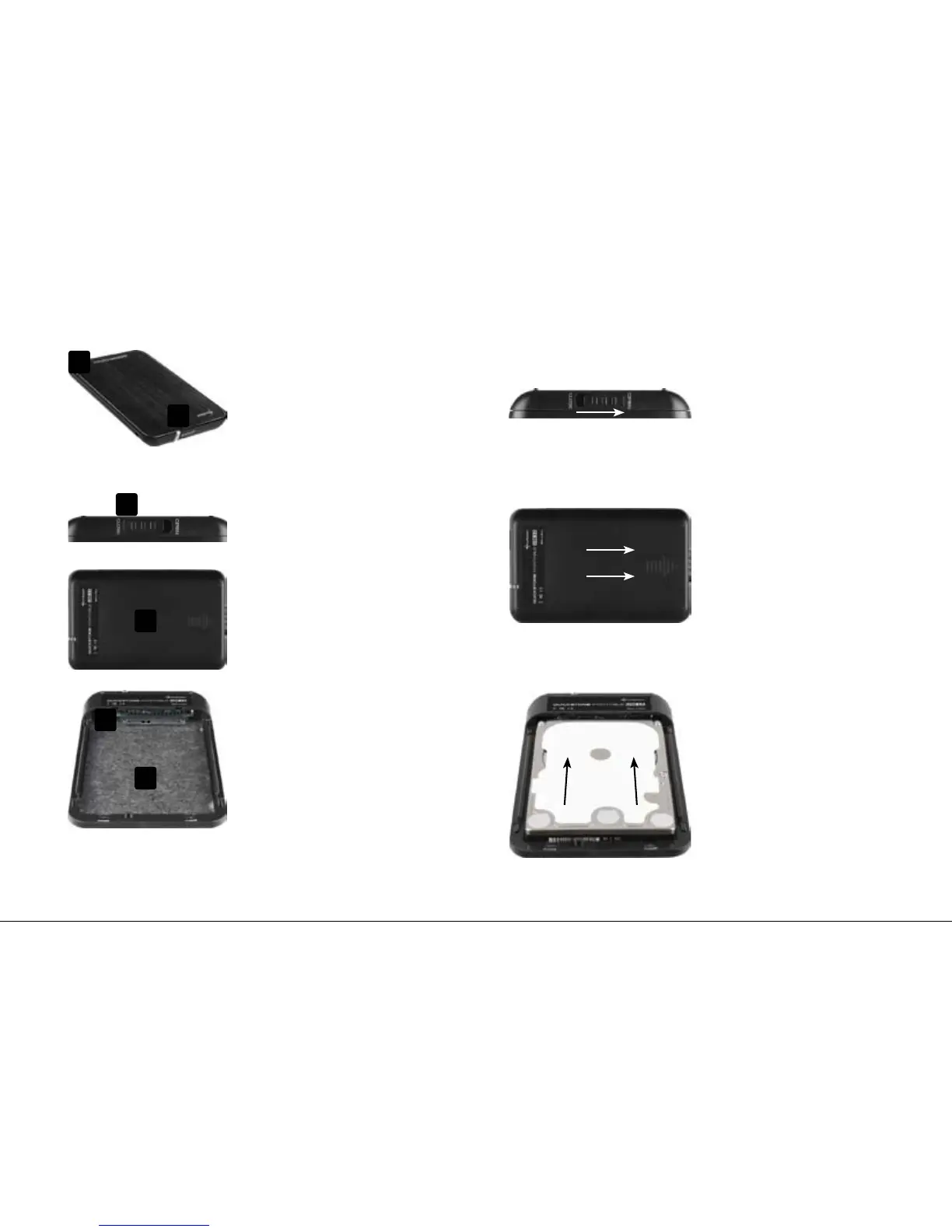

4. The device at a glance 5. Installing a SATA hard disk drive
1. Openthecasecoverlock(g.1).
fig. 1
2. Removethecasecoverfromthecasebody(g.2).
fig. 2
3. Slidea2.5"SATAHDDintotheHDDmountingbay(g.3).
fig. 3
A
A
A
A
B
B
