Sharkoon RGB FLOW User Manual

4-PORT ADDRESSABLE RGB CONTROLLER
MANUAL COLOR CONTROL

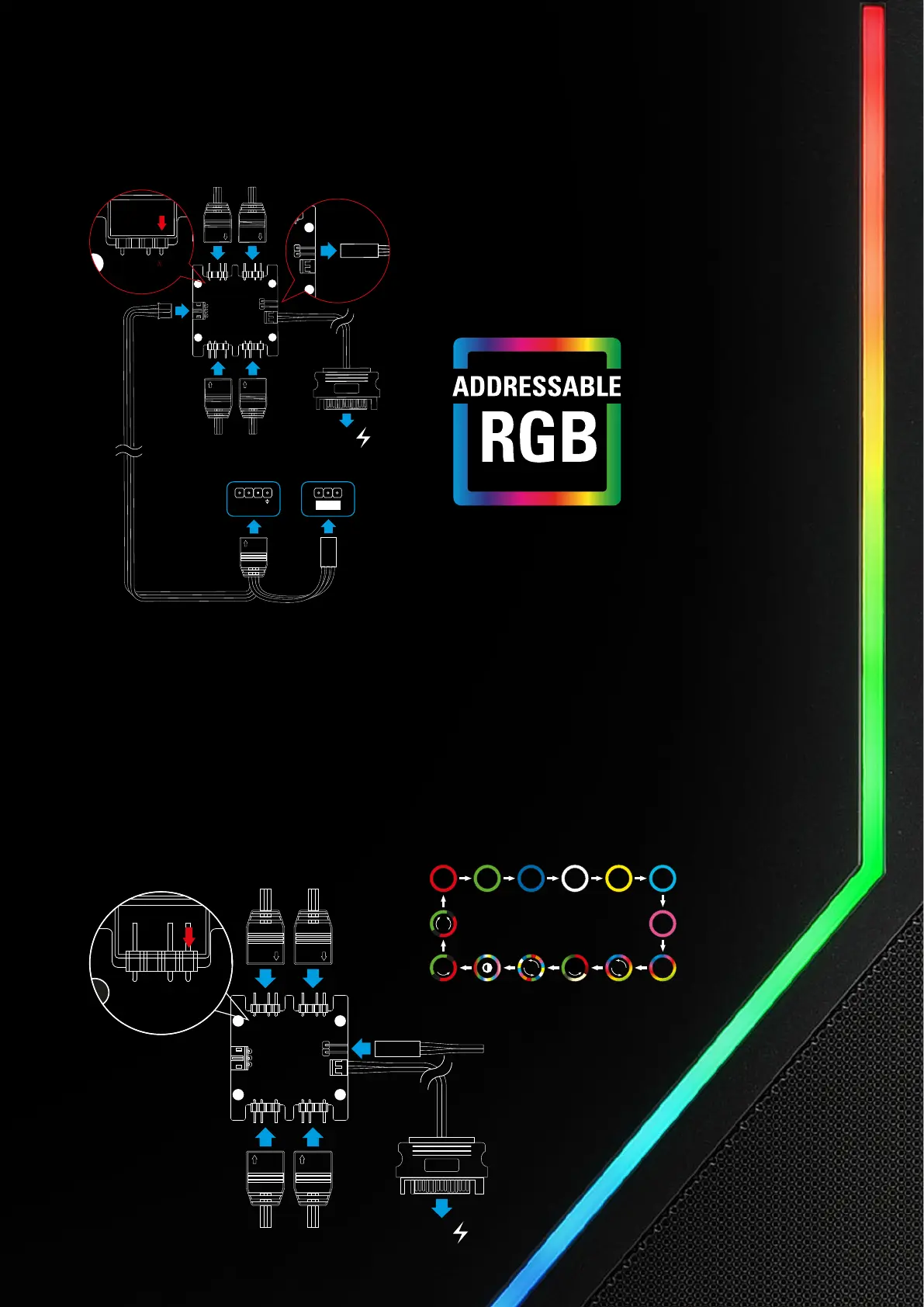

The RGB FLOW comes with a pre-installed RGB
controller. This allows up to four addressable LED
components to be controlled and synchronized via the
mainboard software. The controller is connected to the
power supply via a SATA connector and to either a
mainboard 4-pin or 3-pin header for addressable LEDs
with the configuration: 5V-D-coded-G or V-D-G.
The RGB FLOW also has a manual color control function for mainboards which do not have headers for
addressable LED components. With this, the RGB controller is not connected to the mainboard, but rather
connected to the power supply and the reset switch of the PC case. The switch’s reset function is then
replaced with a new function which allows up to fourteen lighting modes to be cycled through and selected,
or, if desired, the lighting can be turned off.
Red Green Blue White Yellow Cyan
Pink
RGB
Mode 1
RGB
Mode 2
RGB
Mode 3
RGB
Mode 4
RGB
Mode 5
RGB
Mode 6
RGB
Mode 7
DI G
5
V
DI G
5
V
DI G
5
V DI G
5
V
VDG
DI G
5
V
DI G
5
V
DI G
5
V
RESET SW
Addressable RGB LED
Fans/ Strips
Addressable RGB LED
Fans/ Strips
SATA
Mainboard
Addressable
RGB
Pin Header
+5V D
ADD_HEADER
or
V D G
DI G
5 V
DI G
5 V
DI G
5 V
DI G
5 V
DI G
5 V
RESET SW
SATA
Addressable RGB LED
Fans/ Strips
Addressable RGB LED
Fans/ Strips

Sharkoon RGB FLOW Specifications

Fan Configuration

front panel fan size	120 mm
top panel fan size	120 mm or 140 mm
rear panel fan size	120 mm

Compatibility

max height cpu cooler	16.5 cm
max length power supply	21.5 cm
radiators front panel	360 mm

Ports & Interfaces

usb 3.0 ports	2
usb 2.0 ports	1
audio port	Yes

Weight and Dimensions

weight	6.0 kg
dimensions	42.4 x 20.6 x 48.1 cm
max length graphics cards	35 cm
