Sharp 13N-M100 Service Manual

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code
26
13N-M100/150
CN13M10
SUPPLIED ACCESSORIES
RRMCG1324CESA J Infrared R/C Unit AT
(13N-M100, CN13M10)
RRMCG1324CESB J Infrared R/C Unit AT
(13N-M150)
TiNS-6895PEZZ R Operation Manual AD
(13N-M100/150)
TiNS-6967PEZZ R Operation Manual AF
(CN13M10)

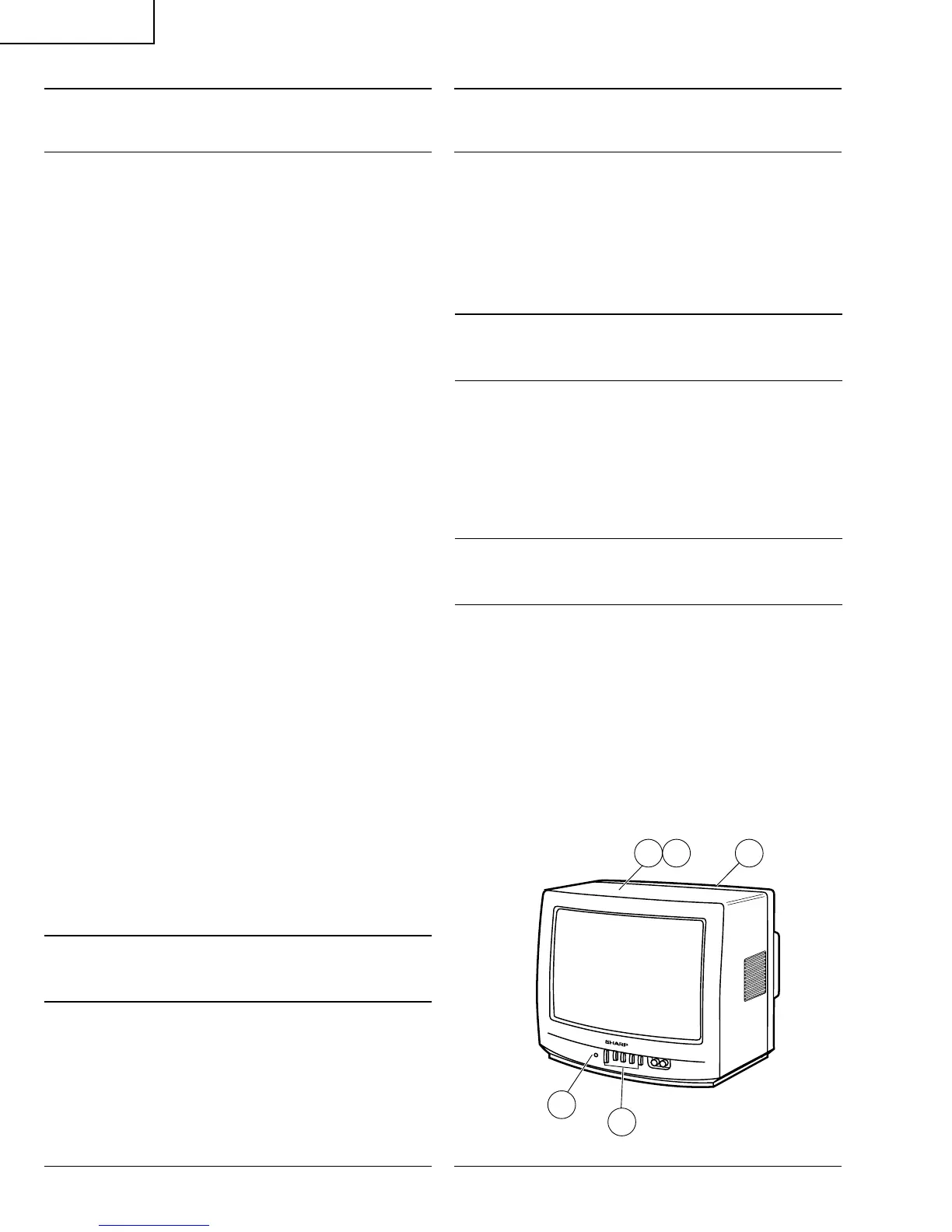

CABINET PARTS
1 CCABA2552WEV0 R Front Cabinet Ass’yAX
(13N-M100)
1 CCABA2552WEV2 R Front Cabinet Ass’yAX
(13N-M150)
1 CCABA2566WEV0 R Front Cabinet Ass’yAZ
(CN13M10)
1-1 Not Available – Front Cabinet —
1-2 GCOVA0078PEKA R R/C Cover AD
1-3 JBTN-0306PESA R Button AD
(13N-M100, CN13M10)
1-3 JBTN-0306PESB R Button (13N-M150) AD
2 GCABB2309PEKA R Rear Cabinet (13N-M100) AW
2 GCABB2309PEKB R Rear Cabinet (13N-M150) AW
2 GCABB2325PEKA R Rear Cabinet (CN13M10) AW
1
1-1
1-3
1-2
2
PWB-B: DUNTKA056WEV6
CRT UNIT
TRANSISTORS
Q852 VS2SC2229O/1E J 2SC2229 (O) AD
Q854 VS2SC2229O/1E J 2SC2229 (O) AD
Q856 VS2SC2229O/1E J 2SC2229 (O) AD
Q881 VS2SA1266-Y-1 J 2SA1266 (Y) AA
or
VS2SA1015-Y-1
DIODES
D881 RH-DX0475CEZZ J Diode AB
D882 RH-DX0475CEZZ J Diode AB
D885 RH-DX0475CEZZ J Diode AB
COIL
L851 VP-DF820K0000 J Peaking 82µH AB
CAPACITORS
[EL.··· Electrolytic]
C851 VCCCCY1HH151J J 150p 50V Ceramic AA
C852 VCCCCY1HH151J J 150p 50V Ceramic AA
C853 VCCCPA1HH151J J 150p 50V Ceramic AA
C854 RC-KZ0160GEZZ J 0.01 1.4kV Ceramic AC
or
RC-KZ0029CEZZ
C881 VCEA0A1CW106M J 10 16V EL. AB
C883 VCEA0A1CW336M J 33 16V EL. AB
RESISTORS
[M-Ox.··· Metal Oxide, M-Film··· Metal Film]
R852 VRD-RA2BE221J J 220 1/8W Carbon AA
R853 VRN-MD2AL121J J 120 1/10W M-Film AA
å R857 VRS-VV3AB123J J 12k 1W M-Ox. AA
R858 VRD-RM2HD332J J 3.3k 1/2W Carbon AA
R860 VRD-RA2BE221J J 220 1/8W Carbon AA
R861 VRN-MD2AL121J J 120 1/10W M-Film AA
å R865 VRS-VV3AB123J J 12k 1W M-Ox. AA
R866 VRD-RM2HD332J J 3.3k 1/2W Carbon AA
R867 VRN-MD2AL470J J 47 1/10W M-Film AA
R868 VRN-MD2AL221J J 220 1/10W M-Film AA
R869 VRN-MD2AL121J J 120 1/10W M-Film AA
å R873 VRS-VV3AB123J J 12k 1W M-Ox. AA
R874 VRD-RM2HD332J J 3.3k 1/2W Carbon AA
R881 VRN-MD2AL561J J 560 1/10W M-Film AA
R882 VRN-MD2AL391J J 390 1/10W M-Film AA
R883 VRD-RA2BE561J J 560 1/8W Carbon AA
R884 VRN-MD2AL152J J 1.5k 1/10W M-Film AA
R886 VRN-MD2AL431J J 430 1/10W M-Film AA
R887 VRD-RA2BE470J J 47 1/8W Carbon AA
R890 VRN-MD2AL470J J 47 1/10W M-Film AA
R891 VRN-MD2AL470J J 47 1/10W M-Film AA
MISCELLANEOUS PARTS
P851 QPLGN0541CEZZ J Plug, 5-pin (GBN) AB
P852 QPLGN0441CEZZ J Plug, 4-pin (YBN) AB
SC851 QSOCV0839CEZZ J CRT Socket AK
or
QSOCV0842CEZZ
PACKING PARTS
(NOT REPLACEMENT ITEM)
SPAKC6619PEZZ – Packing Case (13N-M100) —
SPAKC6620PEZZ – Packing Case (13N-M150) —
SPAKC6633PEZZ – Packing Case (CN13M10) —
SPAKP0031PEZZ – Wrapping Paper —
SPAKP0110PEZZ – Wrapping Paper —
SPAKX2630PEZZ – Buffer Material —
SSAKA0001PEZZ – Polyethylene Bag —
MISCELLANEOUS PARTS
å ACC701 QACCD3090CESA J AC Cord AK
or
QACCD3060CESA
or
QACCD3064CESA
SP1 VSP0080PBP8YA J Speaker, 32ohm AK
QCNW-2105PEZZ R Connecting Cord AF
QCNW-2106PEZZ R Connecting Cord AE
QCNW-2107PEZZ R Connecting Cord AE
