Sharp 13N-M100 Service Manual

6
13N-M100/150
CN13M10

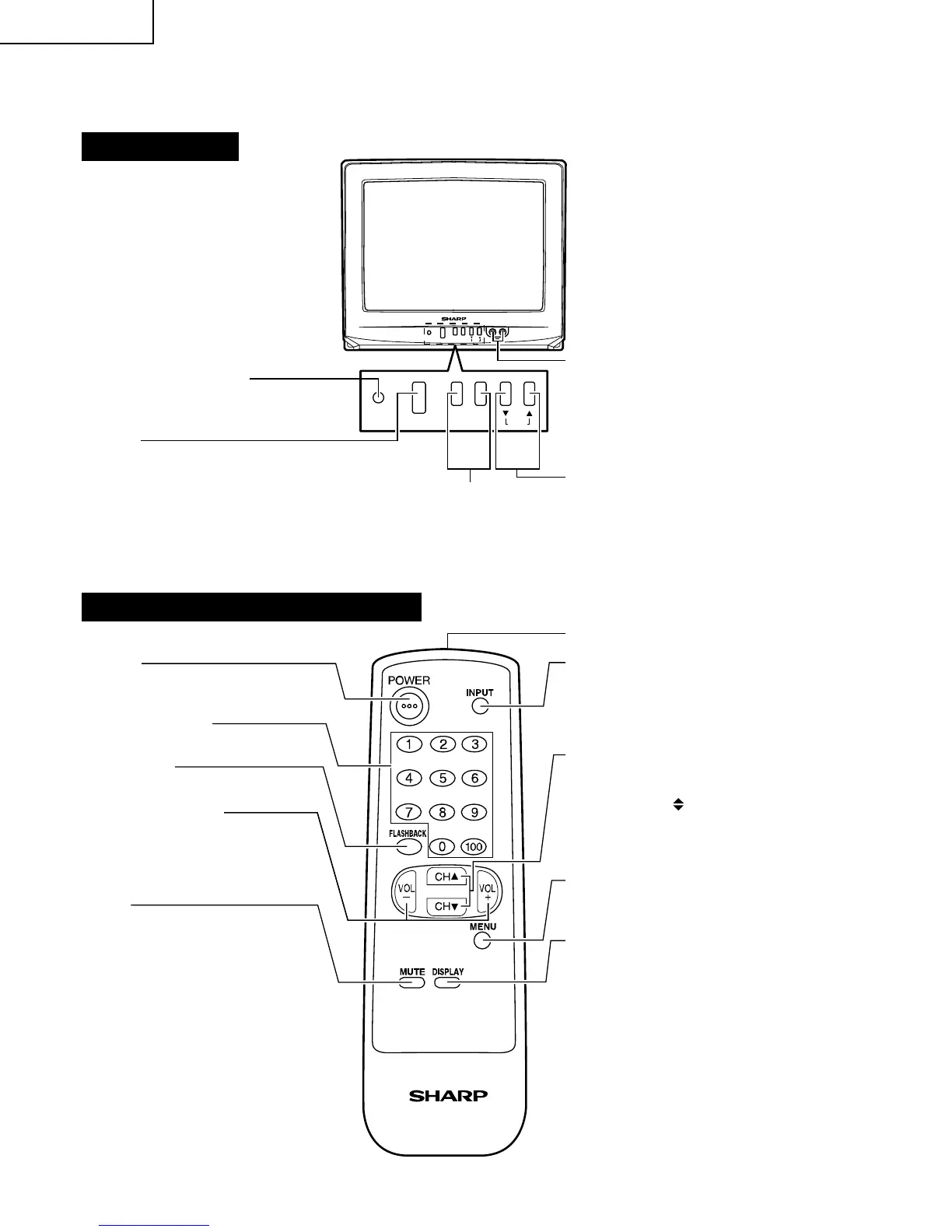

LOCATION OF USER'S CONTROL
TV
– VOL +
POWER
VIDEO IN AUDIO
MENU
– VOL +
POWER
CH
MENU
CH
Infrared Transmitter Window
INPUT
Press → Switch to external video input
mode.
Press again → Switch to TV mode.
CHANNEL UP/DOWN
( ) Selects next higher channel.
( ) Selects next lower channel.
• Moves the “
” mark of the MENU
screen.
MENU
Press → Accesses MAIN MENU.
Press again → Exits MAIN MENU.
DISPLAY
Press → Displays receiving channel for
four seconds.
Press again → Removes display.
• Temporarily displays receiving
channel when in Closed Caption
mode.
Basic Remote Control Functions
Front Panel
CHANNEL UP/DOWN – MENU
(
' ) Selects next higher channel.
(
"
'
"
) Selects next lower channel.
• Press both at the same time to
access the MAIN MENU screen.
SENSOR AREA FOR
REMOTE CONTROL
VOLUME UP/DOWN
(+) Increases sound.
(–) Decreases sound.
POWER
Press → On.
Press again → Off.
VIDEO/AUDIO IN TERMINALS
POWER
Press → On.
Press again → Off.
REMOTE KEYPAD
Accesses any channel from keypad.
FLASHBACK
Returns to previous channel.
VOLUME UP/DOWN
(+) Increases sound.
(–) Decreases sound.
• In menu mode, changes or selects
the TV
adjustments.
MUTE
Press → Mutes sound.
Press again → Restores sound.
• CLOSED CAPTION appears when
sound is muted.
