Sharp 21C-FX1C - Main Block Diagram - Part 1

4342
21C-FX1(C)/(G)
21C-FX5/FX8
21C-FX1(C)/(G)
21C-FX5/FX8
1 2 3 4 5 6 7 8 9 10
A
B
C
D
E
F
G
H
I
J
11 12 13 14 15 16 17 18 19

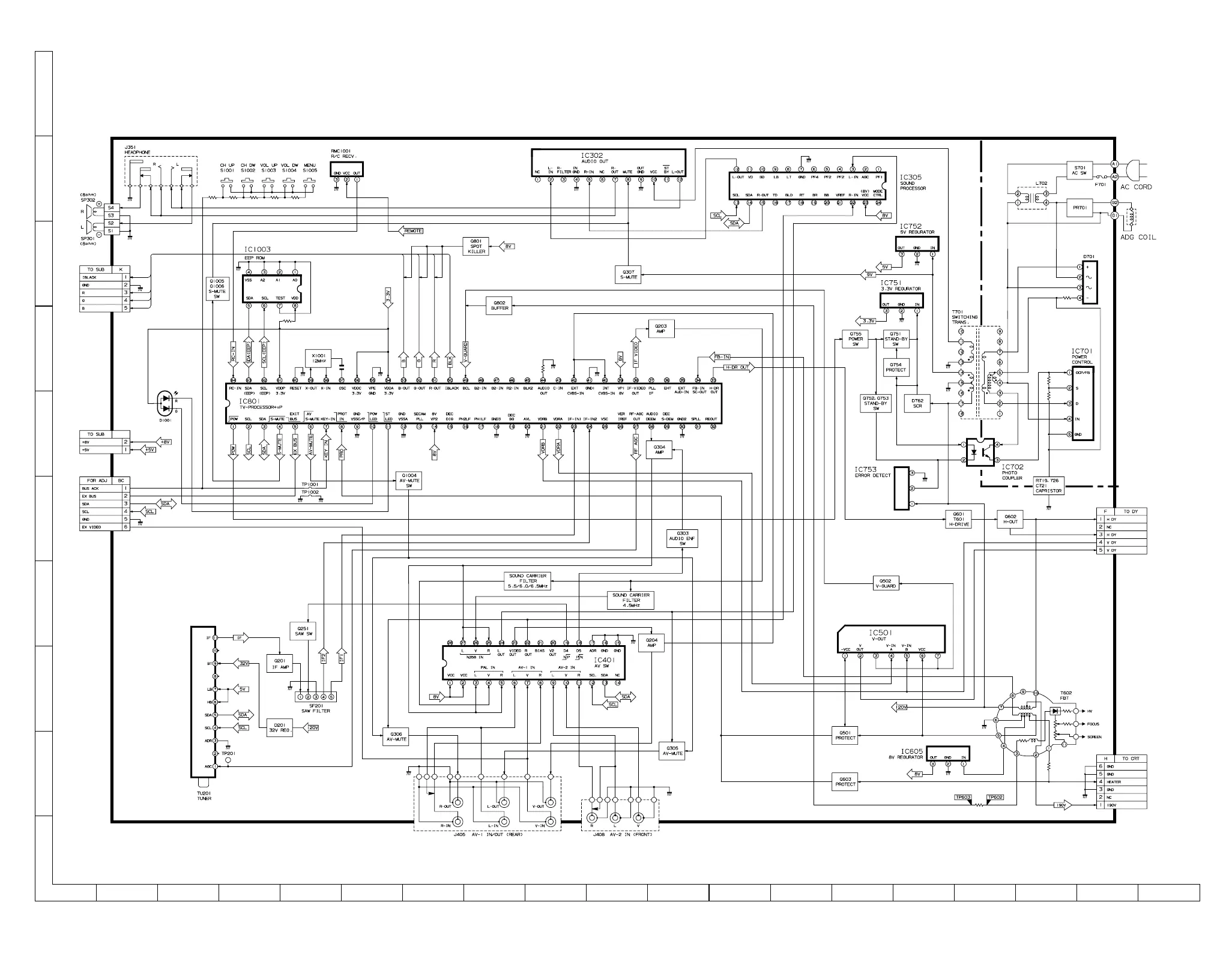

BLOCK DIAGRAM - 1/3:MAIN BLOCK
MODEL 21C-FX1(C)/1(G)
PWB-A MAIN BLOCK
