Ref. No. Part No. Description Code
Ref. No. Part No. Description Code
58
21C-FX1(C)/(G)
21C-FX5/FX8
SP301 VSP1206PB428A R Speaker AR
SP302 VSP1206PB428A R Speaker AR
CN301 QCNW-2448PEZZ R Connecting Cord, (S) AG
CN601 QCNW-2447PEZZ R Connecting Cord, (H) AF
CN801 QCNW-2446PEZZ R Connecting Cord, (K) AF
MISCELLANEOUS PARTS
SUPPLIED ACCESSORIES
RRMCG1587PESA R Infrared Remote Control Unit AP
(21C-FX1(C)/(G))
RRMCG1577PESA R Infrared Remote Control Unit AR
(21C-FX5)
RRMCG1586PESA R Infrared Remote Control Unit AQ
(21C-FX8)
TiNS-7632PEZZ R Opearation Manual (21C-FX1(C)) AK
TiNS-7633PEZZ R Opearation Manual (21C-FX1(G)) AR
TiNS-7578PEZZ R Opearation Manual(21C-FX5) AM
TiNS-7634PEZZ R Opearation Manual(21C-FX8) AM
ACCESSORIES (NOT REPLACEMENT ITEM)
TMAPC4040PEZZ - Service map (21C-FX1(G)) —
TCAUA0002PEZZ - Caution Card —
SPAKC6779PEZZ - Packing Case (21C-FX5) —
SPAKC6795PEZZ - Packing Case (21C-FX1(C)/(G)) —
SPAKC6797PEZZ - Packing Case (21C-FX8)
SPAKP0122PEZZ - Wrapping paper —
(21C-FX1(C)/FX5/FX8)
SSAKH0016PEZZ - Polyethylene Bag —
(21C-FX1(G))
SPAKX2790PEZZ - Buffer Material —
PACKING PARTS
< NOT REPLACEMENT ITEM >
CABINET PARTS
1 CCABA2704WEV0 R Front Cabinet Ass’y BM
(21C-FX1(C)/(G))
1 CCABA2682WEV0 R Front Cabinet Ass’y BM
(21C-FX5)
1 CCABA2706WEV0 R Front Cabinet Ass’y BM
(21C-FX8)
1-1 Not Available - Front Cabinet —
1-2 JBTN-0395PESA R Power Button AG
1-3 MSPRC0005PEFW R Power button Spring AB
1-4 GCOVA0145PESA R R/C Cover AD
1-5 HBDGB3142CESA R SHARP Badge AG
1-6 GDORF0196PESA R Door AN
1-7 PKAi-0007PE00 R Door Latch AE
1-8 HiNDP0294PESA R Indication Plate AE
2 CCABB2463WEV0 R Rear Cabinet Ass’y BA
2-1 Not Available - Rear Cabinet —

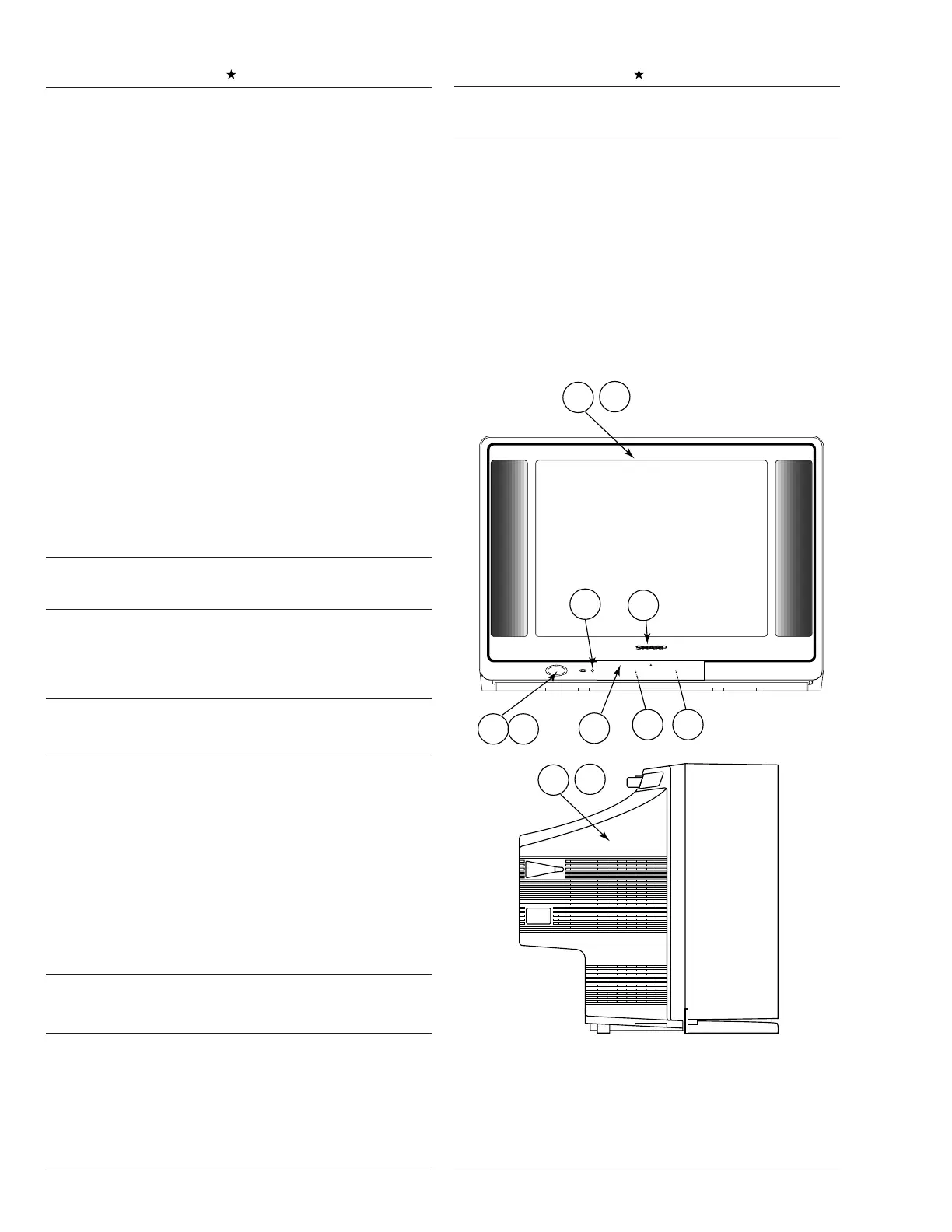

1
1-1
1-2 1-3
1-6
1-7
1-5
1-4
1-8
STEREO
PUSH OPEN
2
2-1
R2341 VRS-CY1JF181J R 180 1/16W Metal Oxide AA
R2342 VRS-CY1JF183J R 18k 1/16W Metal Oxide AA
R2343 VRS-CY1JF561J R 560 1/16W Metal Oxide AA
R2344 VRS-CY1JF102J R 1k 1/16W Metal Oxide AA
R2345 VRS-CY1JF183J R 18k 1/16W Metal Oxide AA
R2346 VRS-CY1JF102J R 1k 1/16W Metal Oxide AA
R2348 VRS-CY1JF221J R 220 1/16W Metal Oxide AA
R2349 VRS-CY1JF393J R 39k 1/16W Metal Oxide AA
R2350 VRS-CY1JF152J R 1.5k 1/16W Metal Oxide AA
R2351 VRS-CY1JF102J R 1k 1/16W Metal Oxide AA
R2352 VRS-CY1JF823J R 82k 1/16W Metal Oxide AA
R2353 VRS-CY1JF823J R 82k 1/16W Metal Oxide AA
R2354 VRS-CY1JF225J R 2.2M 1/16W Metal Oxide AA
R2355 VRS-CY1JF101J R 100 1/16W Metal Oxide AA
R2356 VRS-CY1JF102J R 1k 1/16W Metal Oxide AA
R2357 VRS-CY1JF122J R 1.2k 1/16W Metal Oxide AA
R2358 VRS-CY1JF392J R 3.9k 1/16W Metal Oxide AA
R2359 VRS-CY1JF151J R 150 1/16W Metal Oxide AA
R2361 VRS-CY1JF102J R 1k 1/16W Metal Oxide AA
R2362 VRS-CY1JF102J R 1k 1/16W Metal Oxide AA
MISCELLANEOUS PARTS
FB2300 RBLN-0062TAZZ R Ferrite Bead AB
FB2302 RBLN-0062TAZZ R Ferrite Bead AB
FB2303 RBLN-0067CEZZ R Ferrite Bead AC
FB2304 RBLN-0067CEZZ R Ferrite Bead AC
FB2305 RBLN-0062TAZZ R Ferrite Bead AB
FB2399 RBLN-0037CEZZ R Ferrite Bead AB
P2300 QPLGZ0610CEZZ R Plug, 6pin(N) AB
P2301 QPLGZ0810CEZZ R Plug, 8pin(M) AD
