14
21KF-80S

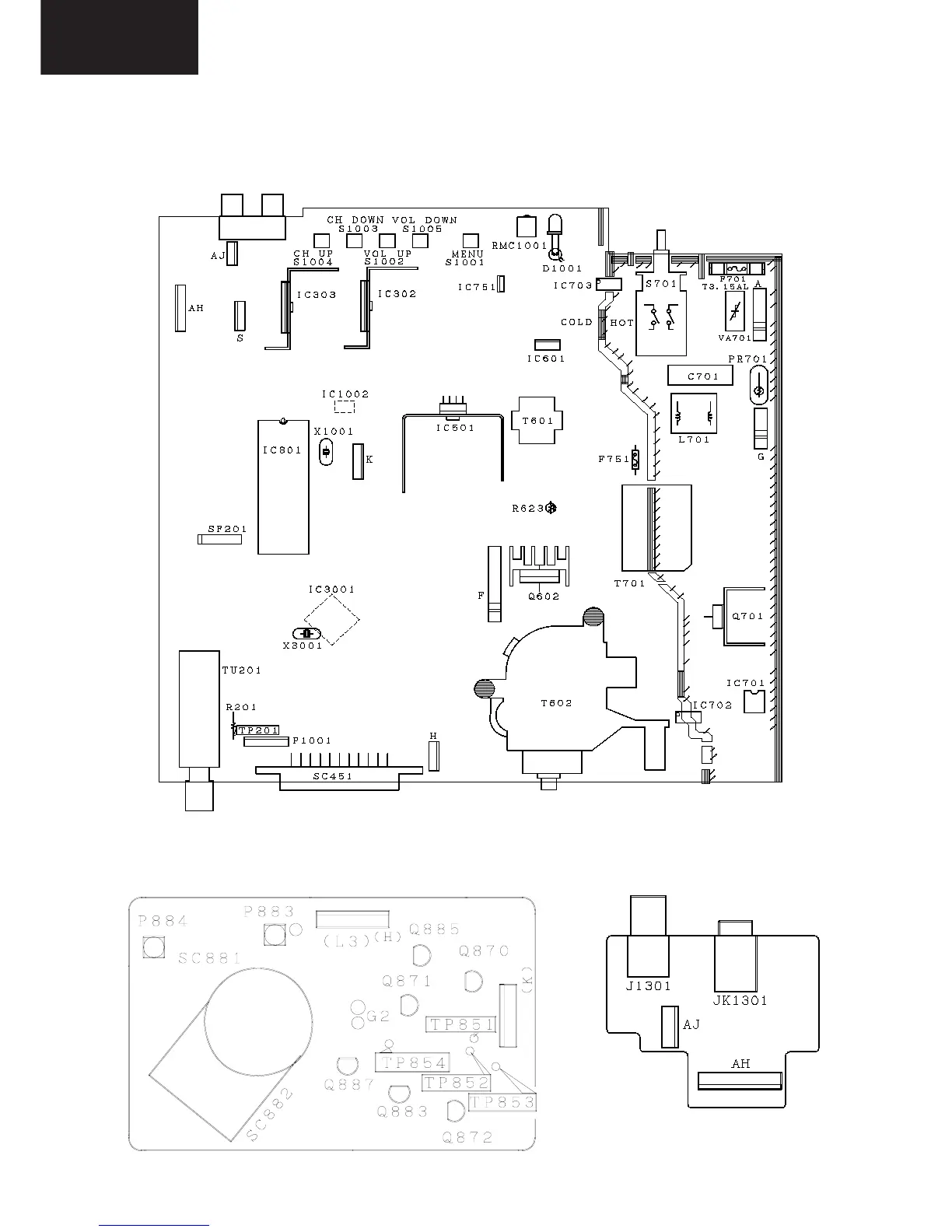

CHASSIS LAYOUTS
PWB A - Mother unit, F7340N8
PWB B - CRT unit, F7341N0 PWB C - Jack unit, FB758ZZ
21HS50F
21HS50C
21HS50C
