Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code
41
25L-M100/180/S100/180
CL25M10,CL25S18
Ref. No. Part No. ★ Description Code
Ref. No. Part No. ★ Description Code
LISTE DES PIECES
CHANGE DES PIECES
Les pi`eces de rechange qui pr élelesentent ces caract éleristiques
sp éleciales de s élecurit éle, sont identifi élees dans ce manuel : les
pi`eces élelectriques qui pr élesentent ces particularit éles, sont rep
éler élee par la marque å et sont hachur élees dans les listes de
pi`eces et dans les diagrammes sch élematiques.
La substitution d'une pi`ece de rechange par une autre qui ne pr
éLesente pas les m éoemes caract éLeristiques de s élecurit éle que
la pi`ece recommand élee parl'usine et dans ce manuel de service,
peut provoquer une éLelectrocution, un incendie ou toutautre sinistre.
"COMMENT COMMANDER LES PIECES DE RECHANGE"
Pour que votre commande soit rapidement et correctement remplie,
veuillez fournir les renseignements suivants.
1. NUMERO DU MODELE 2. NO. DE REF
3. NO. DE PIECE 4. DESCRIPTION
in CANADA: Contact SHARP Electronics of Conada Limited
Phone (416) 890-2100
★MARQUE: SECTION LIVRAISON DES PIECES DE RECHANGE
ç
MARQUE : PIECES RELATIVE AUX RAYONS X
PICTURE TUBE
PWB-A: DUNTK9806WEK0 (25L-M100/CL25M10)
PWB-A: DUNTK9806WEK1 (25L-M180)
PWB-A: DUNTK9806WEK2 (25L-S100)
PWB-A: DUNTK9806WEK3 (25L-S180/CL25S18)
MAIN UNIT
TUNER
NOTE: THE PARTS HERES SHOWN ARE SUPPLIED
AS AN ASSEMBLY BUT NOT INDEPENEDENTLY.
å TU51 VTU115B8035AT M VHF Tuner AU
or
VTUVTST5UF78/
INTEGRATED CIRCUITS
IC101 VHiKA78S05P-1 J KA78S05P AD
çå IC201 RH-iX3253CEZZ J TA1268AN AV
IC351 VHiAN7511//-1 J I.C. AK
(25L-S100/180, CL25S18)
IC352 VHiAN7511//-1 J I.C. AK
å IC501 VHiTA8403K/-1 J TA8403K AL
å IC701 VHiSTRF66261E J STR-F6626 AX
å IC702 RH-FX0034CEZZ J PC817 AE
å IC703 VHiSE120N//-1 J SE120N AG
å IC750 VHiKA7809Pi-1 M KA7809PI AE
å IC751 VHiKA7809Pi-1 M KA7809PI AE
IC951 VHiMM1111XF1E J MM1111XFBE AE
(25L-S100/180, CL25S18)
IC2001 RH-iX3256CEZZ J TMPA8701CMF142 AX
IC2040 VHiKiA7045P-1 J KIA7045P AD
IC2101 VHiM24C01B/-1 J M24C01-BN6 AF
IC3001 VHiCXA2074Q-1 J CXA2074Q AY
(25L-S100/180, CL25S18)
TRANSISTORS
You can substitute "VS2SD601AR/-1" for "VS2SC2412-C-1".
Q201 VS2SC2735//1E J 2SC2735 AC
Q301 VS2SD601AR/-1 J 2SD601AR AC
(25L-S100/180, CL25S18)
Q401 VS2SD601AR/-1 J 2SD601AR AC
Q402 VS2SB709AR/-1 J 2SB709AR AC
Q403 VS2SD601AR/-1 J 2SD601AR AC
Q421 VS2SB709AR/-1 J 2SB709AR AC
Q451 VS2SB709AR/-1 J 2SB709AR AC
PWB-A DUNTK9806WEK0 – MAIN Unit —
(25L-M100, CL25M10)
PWB-A DUNTK9806WEK1 – MAIN Unit (25L-M180) —
PWB-A DUNTK9806WEK2 – MAIN Unit (25L-S100) —
PWB-A DUNTK9806WEK3 – MAIN Unit —
(25L-S180, CL25S18)
PWB-B DUNTK9510WEK1 – CRT Unit —
PWB-H DUNTK9310WEK0 – FRONT AV Unit —
(25L-M100/180, CL25M10)
PWB-H DUNTK9310WEK1 – FRONT AV Unit —
(25L-S100/180, CL25S18)

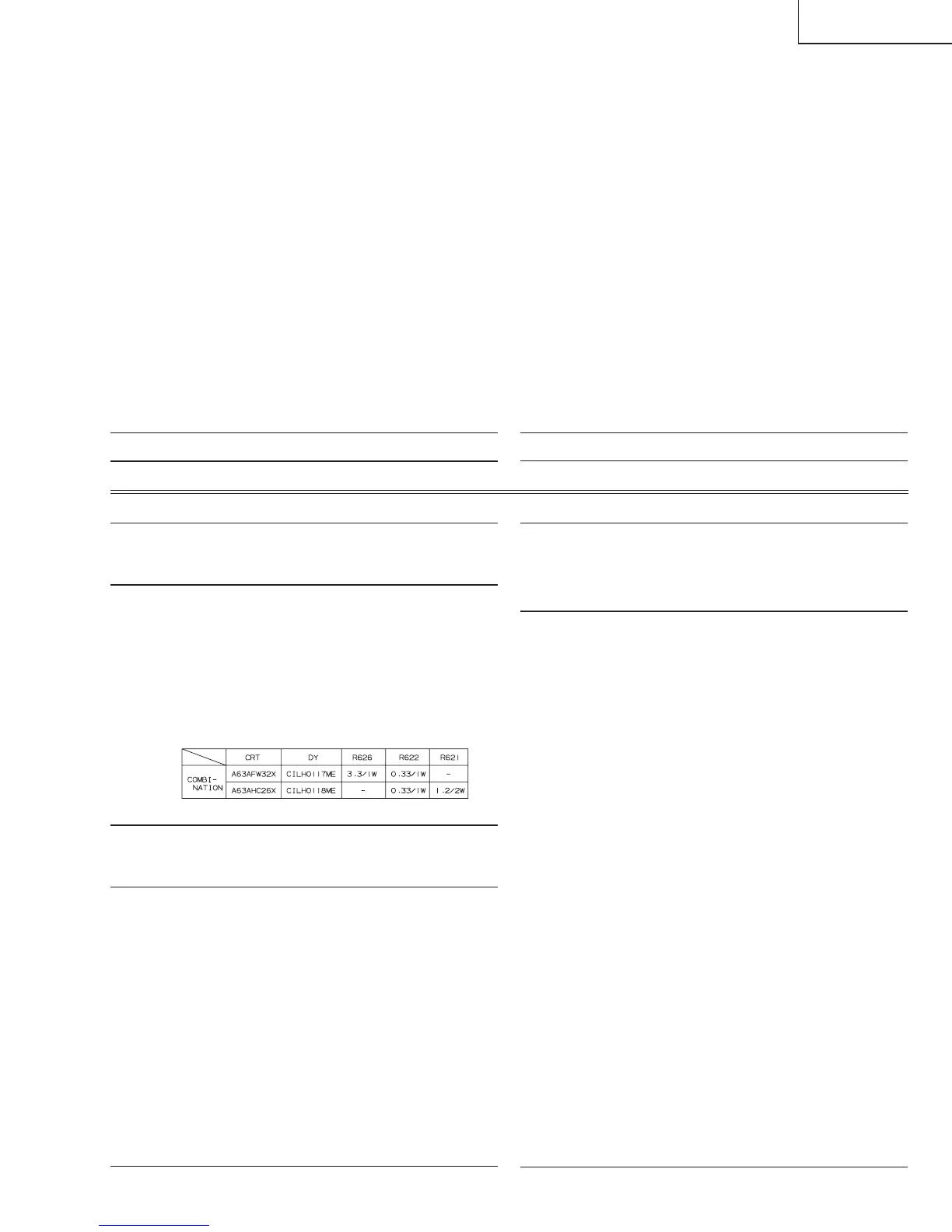

çå V101 VB63AFW32X/*S M Picture Tube CK
or
VB63AHC26X/*S
çå DY601 RCiLH0117MEZZ M Deflection Yoke BA
or
RCiLH0118MEZZ
å L702 RCiLG0036MEZZ M Degaussing Coil BB
MSPRT0002MEZZ M Spring for CRT AA
PMAGF3003CEZZ M Magnet Ass'y AK
QEARC2508MEZZ M Grounding Part AF
PRINTED WIRING BOARD ASSEMBLIES
(NOT REPLACEMENT ITEM)
PARTS LIST
PARTS REPLACEMENT
Replacement parts which have these special safety characteristics
identified in this manual; electrical components having such features
are identified by å and shaded areas in the Replacement Parts Lists
and Schematic Diagrams. The use of a substitute replacement part
which dose no have the same safety characteristic as the factory
recommended replacement parts shown in this service manual may
create shock, fire or other hazards.
"HOW TO ORDER REPLACEMENT PARTS"
To have your order filled promptly and correctly, please furnish the
following informations.
1. MODEL NUMBER 2. REF. NO.
3. PART NO. 4. DESCRIPTION
in USA: Contact your nearest SHARP Parts Distributor to order.
For location of SHARP Parts Distributor, Please call Toll-
Free; 1-800-BE-SHARP
★MARK: SPARE PARTS-DELIVERY SECTION
ç MARK : X- RAY RELATED PARTS
