6
Dimension: 140mm x 215mm

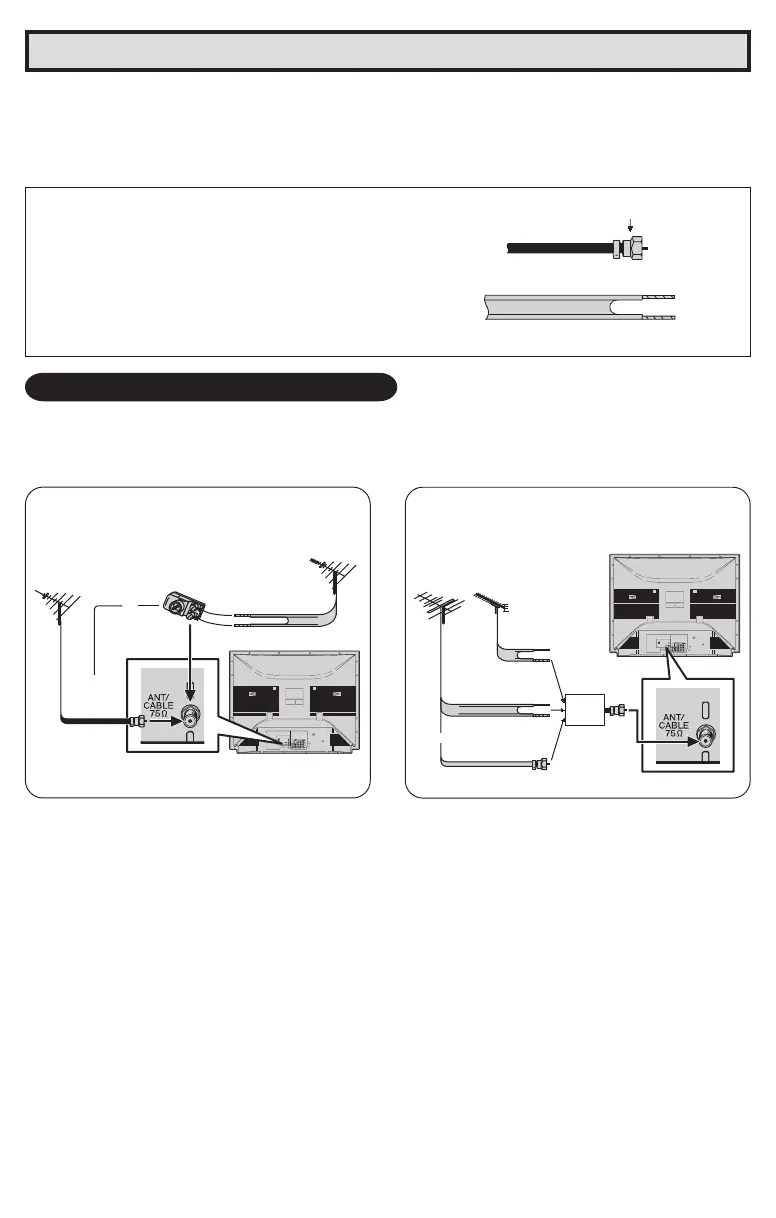

OUTDOOR ANTENNA CONNECTION
• Refer to one of the following two diagrams when connecting to an outdoor antenna.
A: Using a VHF/UHF combination outdoor antenna.
B: Using separate VHF and/or UHF outdoor antenna.
• Connect an outdoor antenna cable lead-in to the ANT/CABLE terminal on the rear of the TV set.
Antenna Connections
A. Combination VHF/UHF Antennas
B. Separate VHF/UHF Antenna
REAR OF TV
75-ohm
coaxial
cable
300-ohm
twin-lead
VHF/UHF
ANTENNA
VHF/UHF ANTENNA
300/75-ohm
ADAPTOR
(Not supplied)
or
REAR OF TV
IN OUT
300-ohm
twin-lead
300-ohm
twin-lead
75-ohm coaxial
cable
VHF
ANTENNA
UHF
ANTENNA
COMBINER
(not supplied)
or
Antennas
• The antenna requirements for good color television reception are more important than those for black
& white television reception. For this reason, a good quality outdoor antenna is strongly recommended.
The following is a brief explanation of the type of connections that are provided with the various
antenna systems:
1. A 75-ohm system is generally a round cable with
F-type connector that can easily be attached to
a terminal without tools (not supplied).
2. A 300-ohm system is a flat “twin-lead” cable that
can be attached to a 75-ohm terminal through a
300/75-ohm ADAPTOR (not supplied).
F-type connector
75-ohm coaxial cable (round)
300-ohm twin-lead cable (flat)
27SF560(05-07).p65 26/10/05, 6:52 PM6
