Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code
23
27U-S60
27U-S100
Ref. No. Part No. ★ Description Code
PICTURE TUBE
PRINTED WIRING BOARD ASSEMBLIES
(NOT REPLACEMENT ITEM)
PARTS LIST
PARTS REPLACEMENT
Replacement parts which have these special safety characteristics
identified in this manual; electrical components having such features
are identified by å and shaded areas in the Replacement Parts Lists
and Schematic Diagrams. The use of a substitute replacement part
which dose no have the same safety characteristic as the factory
recommended replacement parts shown in this service manual may
create shock, fire or other hazards.
"HOW TO ORDER REPLACEMENT PARTS"
To have your order filled promptly and correctly, please furnish the
following informations.
1. MODEL NUMBER 2. REF. NO.
3. PART NO. 4. DESCRIPTION
in USA: Contact your nearest SHARP Parts Distributor to order.
For location of SHARP Parts Distributor, Please call Toll-
Free; 1-800-BE-SHARP
★ MARK: SPARE PARTS-DELIVERY SECTION
▲ MARK: X- RAY RELATED PARTS
PWB-A: DUNTKA462WEA1
MAIN UNIT

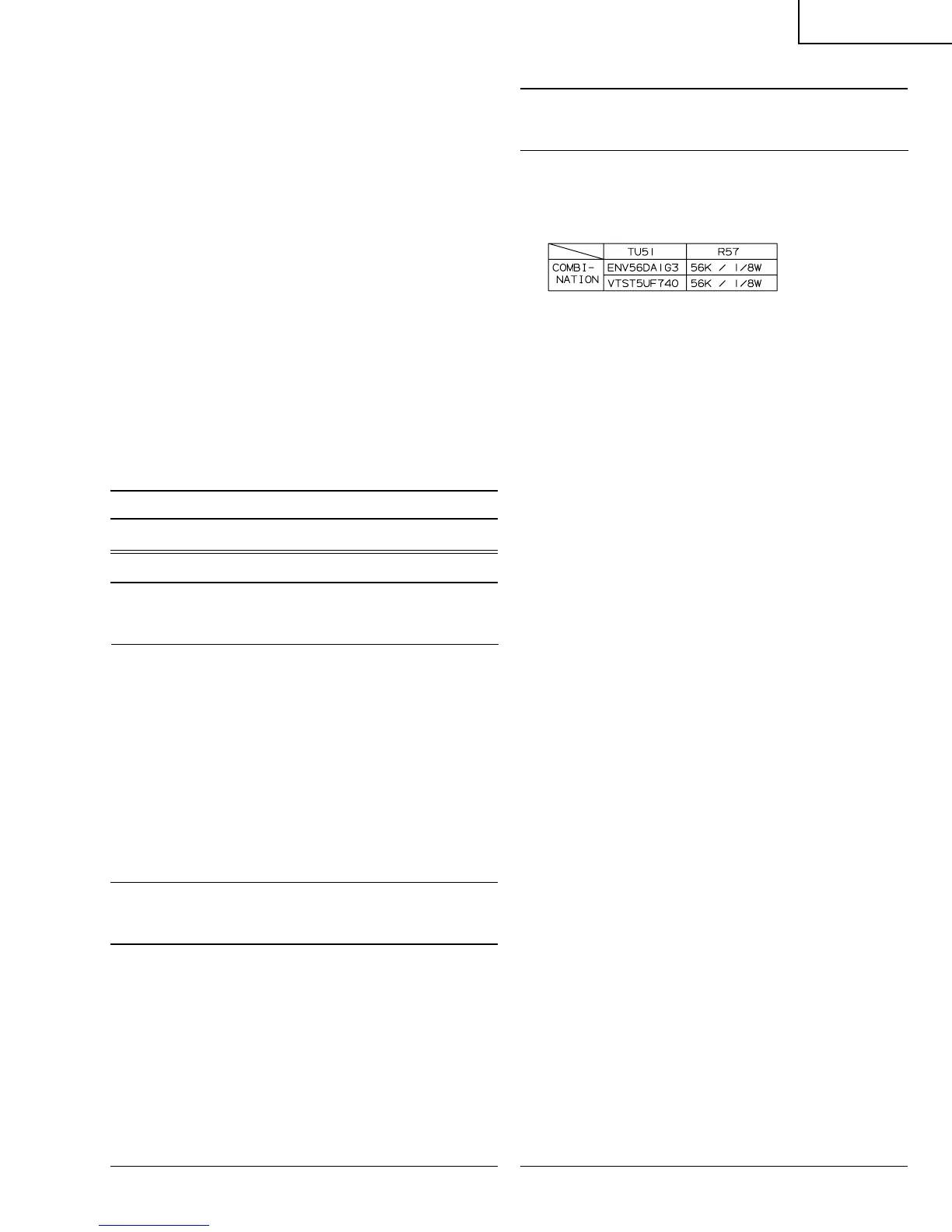

TUNER
NOTE: THE PARTS HERE SHOWN ARE SUPPLIED AS AN
ASSEMBLY BUT NOT INDEPENDENTLY.
å TU51 VTUVTST5UF740 X Tuner AX
or
VTUENV56DA1G3
INTEGRATED CIRCUITS
'åIC201 RH-iX3354CEN1 J LA76843N AT
IC351 VHiAN7511//-1 J AN7511 AK
å IC501 VHiLA7841//-1 J LA7841 AM
å IC701 VHiTEA1507/-1 J TEA1507P/N1 AL
å IC702 RH-FX0034CEZZ J PC817 AE
or
RH-FX0002GEZZ
or
RH-FX0029CEZZ
å IC703 VHiSE125N//-1 X SE125N AK
å IC751 VHiKA7809AP-1 J KA7809AP AE
å IC771 VHiKA7805AP-1 J KA7805AP AE
or
VHiTA7805S/-1
IC1401 VHiMM1111XF1E J MM1111XFBE AE
IC1403 VHiM52055FP-1 J M52055FP AH
IC2001 RH-iX3528CEZZ X TMPA8700CPF-3B AT
IC2040 VHiPST994C/-1 J PST994C AD
IC2101 VHiM24C16B/-1 J M24C16-BN6 AG
or
VHiBR24C16/-1
IC3001 VHiCXA2074Q-1 J CXA2074Q AY
IC3371 VHiAN7511//-1 J AN7511 AK
TRANSISTORS
Q101 VS2SC3198-Y-1 J 2SC3198-Y AA
or
VS2SC945AQ/-1
Q201 VS2SC2735//1E J 2SC2735 AC
Q301 VS2SD601AR/-1 J 2SD601AR AC
or
VS2SC3928AR/-1
Q401 VS2SC3928AR-1 J 2SC3928AR AB
or
VS2PD601ARQ-1
Q451 VS2SB709AR/-1 J 2SB709AR AC
Q452 VS2SA1266-Y-1 J 2SA1266-Y AA
Q491 VS2SB709AR/-1 J 2SB709AR AC
Q601 VS2SC2482//-1 J 2SC2482 AD
å Q602 VS2SD2539//1E J 2SD2539 AP
or
VS2SD2634//1E
Q631 VS2SC3198-Y-1 J 2SC3198-Y AA
or
VS2SC945AQ/-1
Q651 VS2SB709AR/-1 J 2SB709AR AC
Q652 VS2SA1266-Y-1 J 2SA1266-Y AA
Q653 VS2SD601AR/-1 J 2SD601AR AC
or
VS2SC3928AR/-1
å Q701 VSSPP07N60C-1 J SPP07N60C AM
or
VSSPP07N60S-1
or
VSSPP04N60S-1
or
VS2SK2708++1G
or
VS2SK2645//-G
'åV101 VB68ADT2506~S X Picture Tube(I.T.C) CK
or
VB68QDN891X1E
å L703 RCiLG0120GJZZ X Degaussing Coil AU
LHLDW0102GJKZ X Wire Holder, x4 AC
MSPRT0002MEZZ X Spring AE
QCNW-0239MEZZ X Connecting Cord(K) AM
QEARC2702MEZZ X Grounding Strap AF
PWB-A DUNTKA462WEA1 – MAIN Unit —
PWB-B DUNTK9510WEW3 – CRT Unit —
