Sharp 27U-S60 User Manual

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code
28
27U-S60
27U-S100
PWB-B: DUNTK9510WEW3
CRT UNIT
TRANSISTORS
Q851 VS2SC3198-Y-1 J 2SC3198-Y AA
Q852 VS2SC3789//2E J 2SC3789 AF
or
VS2SC3619LB1E
Q853 VS2SC3198-Y-1 J 2SC3198-Y AA
Q854 VS2SC3789//2E J 2SC3789 AF
or
VS2SC3619LB1E
Q855 VS2SC3198-Y-1 J 2SC3198-Y AA
Q856 VS2SC3789//2E J 2SC3789 AF
or
VS2SC3619LB1E
Q881 VS2SA1266-Y-1 J 2SA1266-Y AA
DIODES
D881 VHD1SS119//-1 J Diode AB
D882 VHD1SS119//-1 J Diode AB
D884 VHD1SS119//-1 J Diode AB
COIL
L851 VP-MK820K0000 J Peaking 82µH AB
CAPACITORS
[EL.··· Electrolytic]
C851 VCCSPA1HL391J J 390p 50V Ceramic AA
C852 VCCSPA1HL331J J 330p 50V Ceramic AA
C853 VCCSPA1HL391J J 390p 50V Ceramic AA
C854 RC-KZ0024CEZZ J 0.001 2kV Ceramic AC
or
VCKYPB3DE472Z J 0.00472kV Ceramic AC
C883 VCEA0A1HW106M J 10 50V EL. AB
RESISTORS
[M-Ox.··· Metal Oxide]
R851 VRD-RA2BE470J J 47 1/8W Carbon AA
R852 VRD-RA2BE181J J 180 1/8W Carbon AA
R853 VRD-RA2BE121J J 120 1/8W Carbon AA
R855 VRD-RA2BE471J J 470 1/8W Carbon AA
R856 VRD-RA2BE221J J 220 1/8W Carbon AA
å R857 VRS-VV3LB123J J 12k 3W M-Ox. AB
R858 VRD-RM2HD222J J 2.2k 1/2W Carbon AA
R859 VRD-RA2BE470J J 47 1/8W Carbon AA
R860 VRD-RA2BE181J J 180 1/8W Carbon AA
R861 VRD-RA2BE121J J 120 1/8W Carbon AA
R863 VRD-RA2BE471J J 470 1/8W Carbon AA
R864 VRD-RA2BE221J J 220 1/8W Carbon AA
å R865 VRS-VV3LB123J J 12k 3W M-Ox. AB
R866 VRD-RM2HD222J J 2.2k 1/2W Carbon AA
R867 VRD-RA2BE470J J 47 1/8W Carbon AA
R868 VRD-RA2BE181J J 180 1/8W Carbon AA
R869 VRD-RA2BE121J J 120 1/8W Carbon AA
R871 VRD-RA2BE471J J 470 1/8W Carbon AA
R872 VRD-RA2BE221J J 220 1/8W Carbon AA
å R873 VRS-VV3LB123J J 12k 3W M-Ox. AB
R874 VRD-RM2HD222J J 2.2k 1/2W Carbon AA
R881 VRD-RA2BE102J J 1k 1/8W Carbon AA
R882 VRD-RA2BE331J J 330 1/8W Carbon AA
R883 VRD-RA2BE561J J 560 1/8W Carbon AA
R884 VRD-RA2BE152J J 1.5k 1/8W Carbon AA
R895 VRD-RA2BE470J J 47 1/8W Carbon AA
MISCELLANEOUS PARTS
P851 QPLGN0541CEZZ J Plug, 5-pin(GBN) AB
P852 QPLGN0441CEZZ J Plug, 4-pin(YBN) AB
SC851 QSOCV0937CEZZ J CRT Socket AL
PWB-A: DUNTKA462WEA1
MAIN UNIT (Continued)
SWITCHES
S2501 QSW-K0003AJZZ J Power AB
or
QSW-K0079GEZZ
S2502 QSW-K0003AJZZ J VOL-Down AB
or
QSW-K0079GEZZ
S2503 QSW-K0003AJZZ J VOL-Up AB
or
QSW-K0079GEZZ
S2504 QSW-K0003AJZZ J CH-Down AB
or
QSW-K0079GEZZ
S2505 QSW-K0003AJZZ J CH-Up AB
or
QSW-K0079GEZZ
S2506 QSW-K0003AJZZ J Menu AB
or
QSW-K0079GEZZ
MISCELLANEOUS PARTS
RY701 RRLYJ0081CEZZ J Relay AL
å F701 QFS-B4023CEZZ J Fuse, 4A-125V AC
or
QFS-B4021GEZZ
FH701 QFSHD1013CEZZ J Fuse Holder AC
FH702 QFSHD1014CEZZ J Fuse Holder AC
FB601 RBLN-0047CEZZ J Ferrite Bead AB
FB2002RBLN-0037CEZZ J Ferrite Bead AB
J1401 QJAKGA009WJZZ X Front A/V Jack AD
J1404 QSOCD0430CEZZ J Socket, S-Video AE
J1701 QTANJ0340CEZZ X Rear A/V Terminal AG
P303 QPLGN0461CEZZ J Plug, 4-pin(S) AB
P401 QPLGN0561CEZZ J Plug, 5-pin(GBN) AB
P601 QPLGN0160FJZZ J Plug, 5-pin(K) AD
P651 QPLGN0361CEZZ J Plug, 3-pin(TP651-3) AB
P701 QPLGN0260CEZZ J Plug, 2-pin(M) AC
P751 QPLGN0461CEZZ J Plug, 4-pin(YBN) AB
P2001 QPLGN0561CEZZ J Plug, 5-pin(TP2001-5) AB

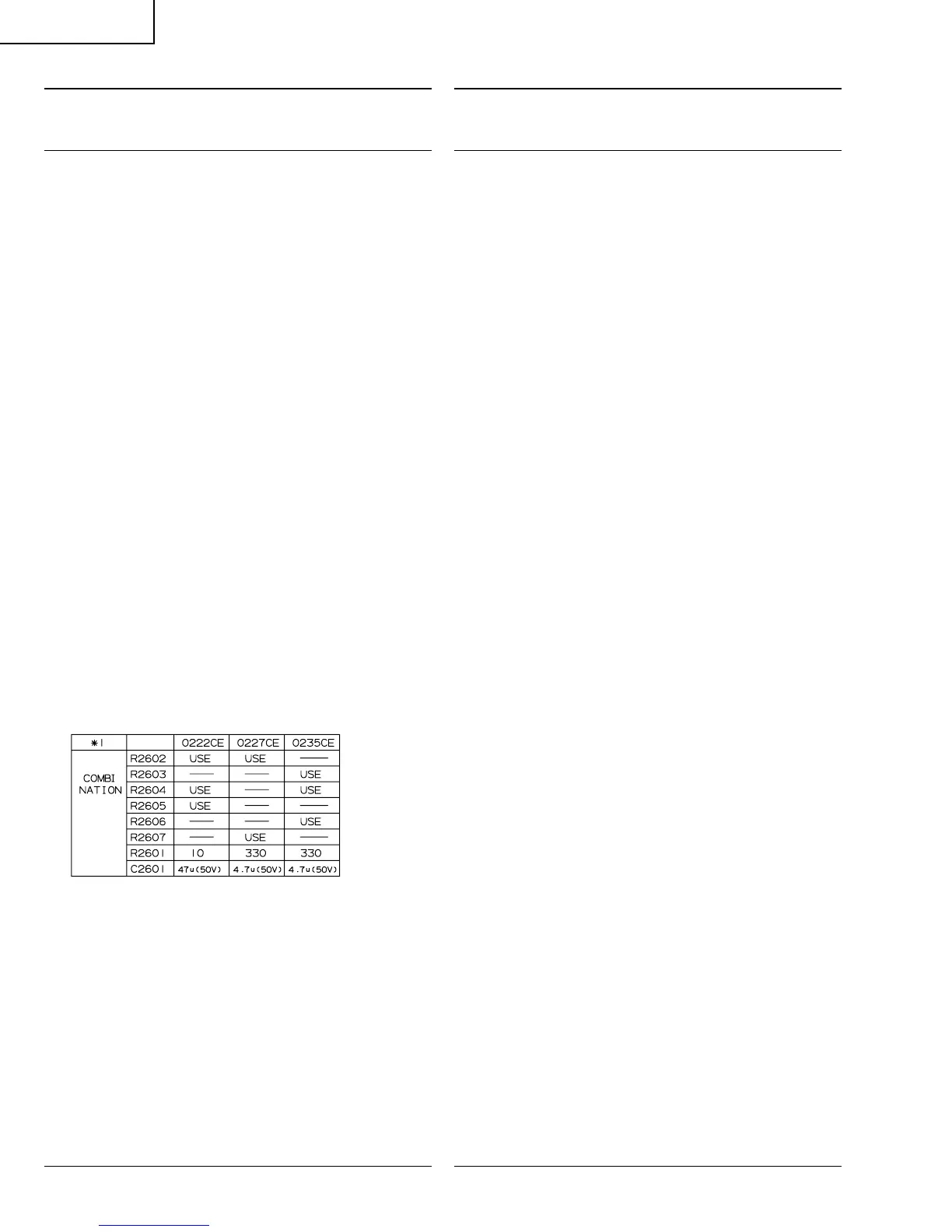

RMC2601 RRMCU0222CEZZ J R/C Receiver AL
RDA501 PRDAR0280PEFW R Heat Sink, for IC501 AF
RDA604 PRDAR0233PEFW R Heat Sink, for Q602 AK
RDA701 PRDAR0265PEFW R Heat Sink, for Q701 AD
TLABN0101GJZZ X Label AE
LX-BZ3049GEFD J Screw AA
LX-BZ3100CEFD J Screw AA
LX-TZ3004CEFD J Screw AA
