Sharp 70GS-61S - Control & Terminals

6
70GS-61S

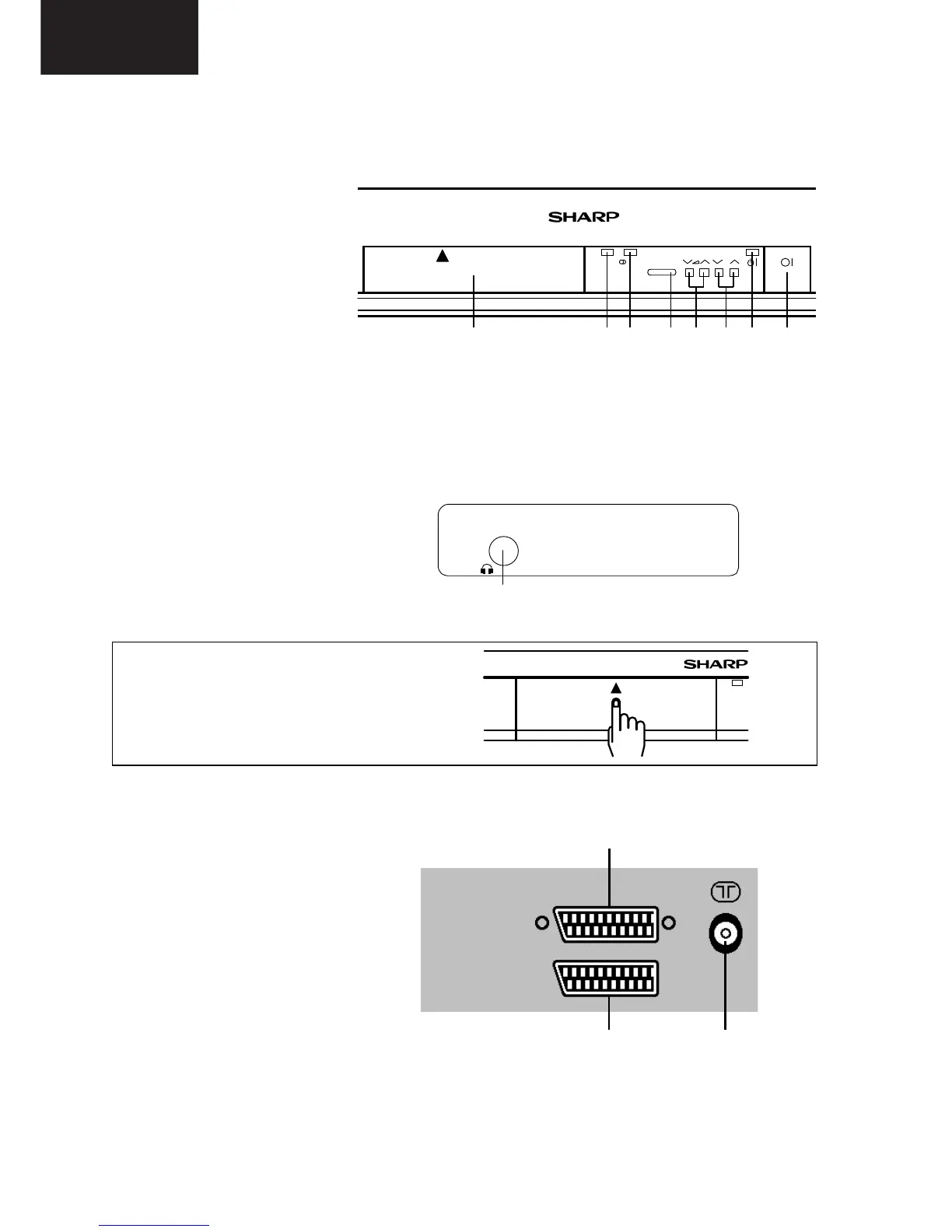

CONTROLS & TERMINALS
CH
1 5 3 2 6 6 4 8 7
/ I / II
OPC
FRONT TV
1.
Main Power
On/Off Switch
2.
Power Indicator
3.
Program Selector
(UP/DOWN)
4.
Volume Buttons
(UP/DOWN)
5.
Remote Control Sensor
6.
Sound Indicator
7.
Remote Control Indicator
8.
DOOR
Behind the door
9.
Headphone Socket
(3.5 mm Ø / 16~600 ȍ)
HOW TO OPEN THE DOOR
Press the top of the door, opening it slightly.
Hook your finger inside and pull open.
OPC
REAR TV
RF Input
1.
Antenna terminal
21-pin In/Out
2.
21-pin Euro SCART (RGB)
3.
21-pin Audio/Video (AV-1)
With S-Video Input
9
AV/TERMINAL
SCART
PERITELEVISION
2
3
1
