Sharp 70GS-61S

27

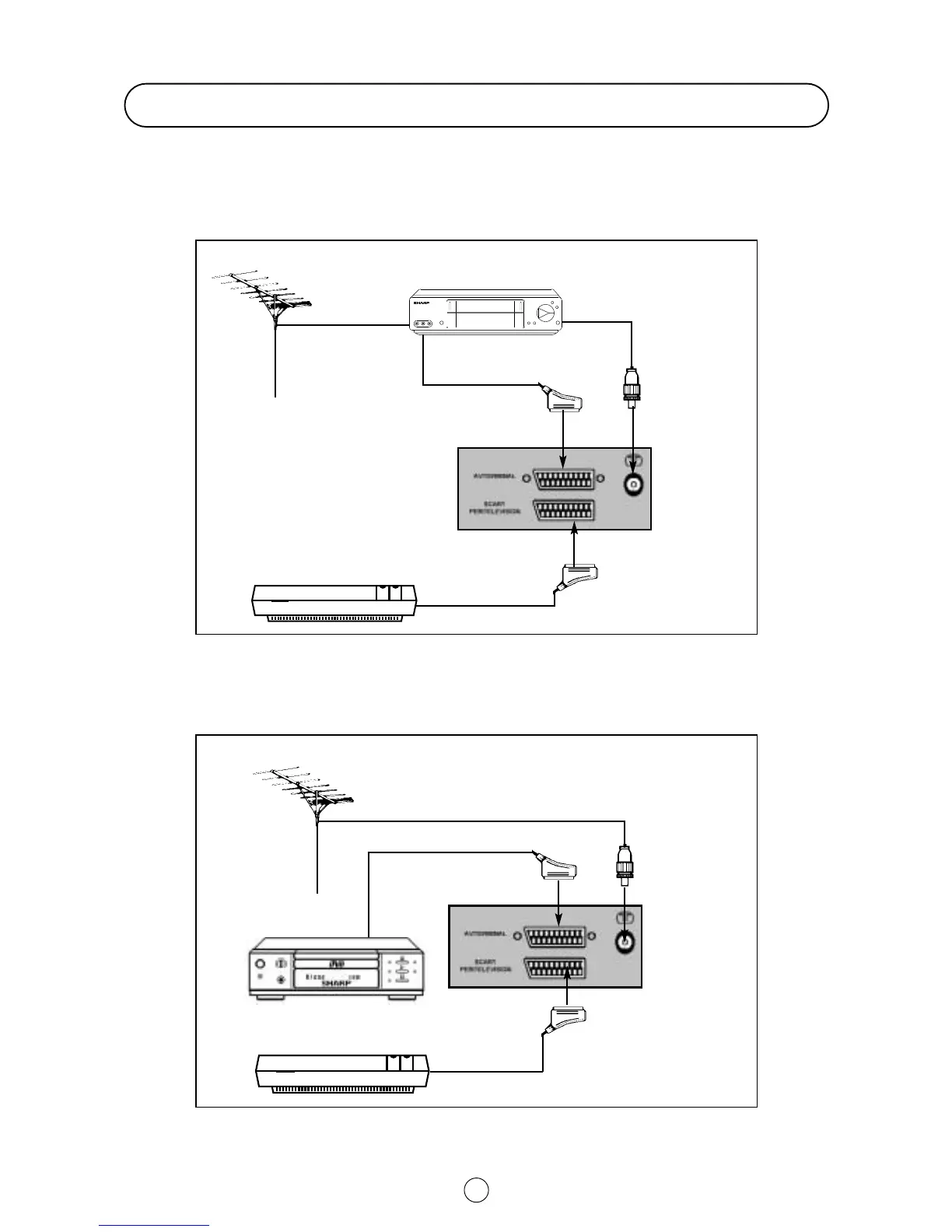

Typical connection (Videorecorder/Decoder) through the 21-pin Euro-SCART
Please refer to the operation manual of your VCR for details
RF in
RF in
VCR
RF out
SCART/AV TV
21-pin Euro-SCART
Typical connection (Videorecorder and TV) through the RF terminal and Decoder through the 21-pin Euro-SCART
RF in
21-pin Euro-SCART
Typical connection (DVD, Decoder and TV) through the 21-pin Euro-SCART
Decoder
Video out Audio out
SCART/AV TV
DVD Player
Decoder
