REFRIGERATION CYCLE

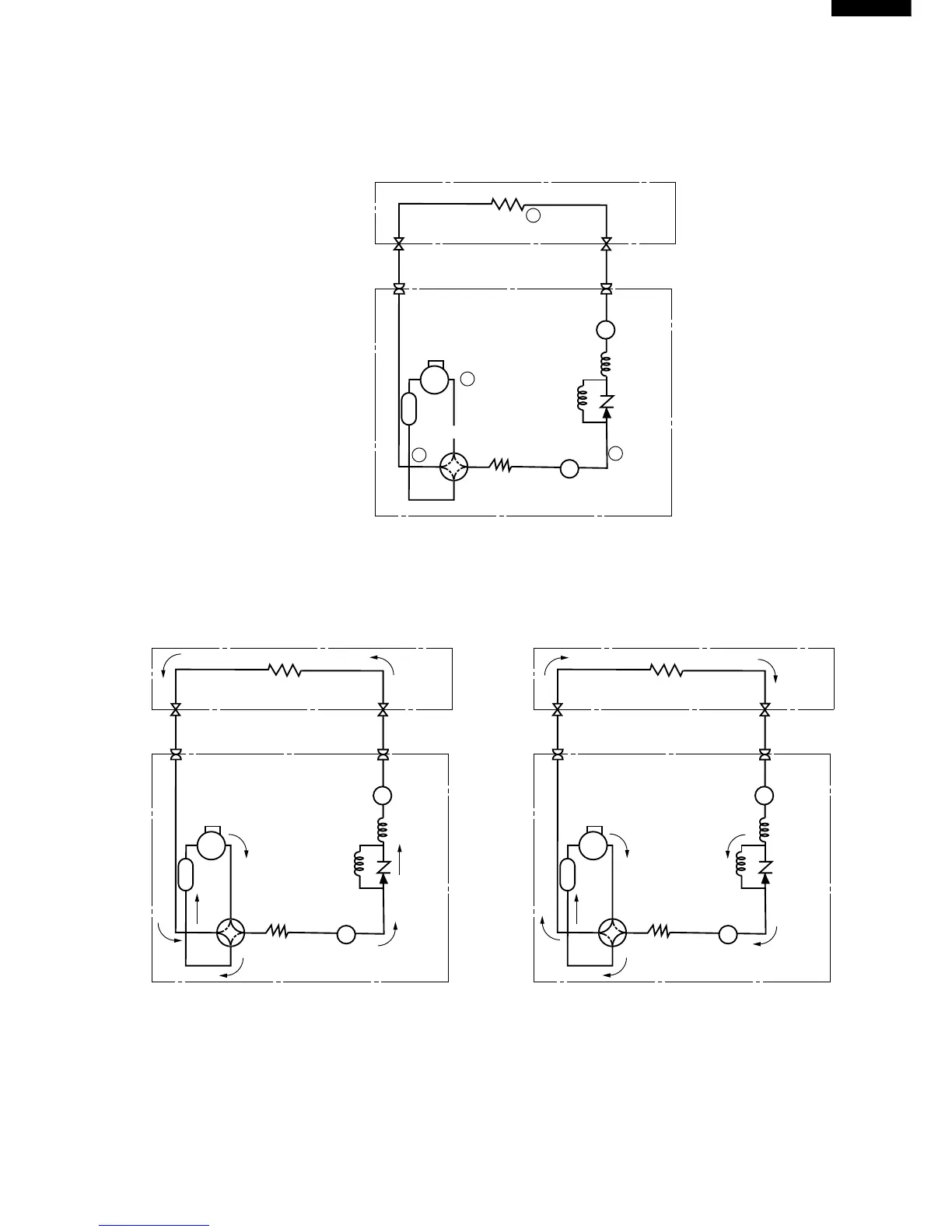

Figure R-1. Refrigeration Cycle for AY-A079E and AY-A099E
Figure R-2. Flow of Refrigerant for AY-A079E and AY-A099E
At Cooling At Heating
Indoor unit
Outdoor unit
Flare coupling
Evaporator
Strainer
Condenser
Accumulator
Compressor
Reverse
valve
Check 
valve
Capillary 
tube B
Strainer
Capillary 
tube A
Flare coupling
Flare coupling
Flare coupling
1
4
2
3
S
S
