Sharp AE-X12PSR User Manual

SHARP(CHINA)INVESTMENT CO.,LTD
TEMP.
Resistance
(k Ohm)
Votalge of
resisitance TEMP.
Resistance
(k Ohm)
Votalge of
resisitance TEMP. R(k Ohm)
Votalge of
resisitance
-12 24.984 4.152 33 3.697 2.101 78 0.843 0.710
-11 23.795 4.117 34 3.563 2.057 79 0.819 0.692
-10 22.671 4.082 35 3.435 2.012 80 0.795 0.675
-9 21.606 4.045 36 3.313 1.969 81 0.773 0.658
-8 20.598 4.008 37 3.195 1.926 82 0.751 0.641
-7 19.644 3.969 38 3.082 1.883 83 0.729 0.625
-6 18.732 3.930 39 2.974 1.842 84 0.709 0.610
-5 17.881 3.890 40 2.870 1.800 85 0.689 0.595
-4 17.068 3.850 41 2.770 1.760 86 0.669 0.580
-3 16.297 3.808 42 2.674 1.720 87 0.651 0.566
-2 15.565 3.766 43 2.583 1.681 88 0.633 0.552
-1 14.871 3.723 44 2.494 1.642 89 0.615 0.538
0 14.212 3.680 45 2.410 1.604 90 0.598 0.525
1 13.586 3.635 46 2.328 1.567 91 0.582 0.512
2 12.991 3.590 47 2.250 1.530 92 0.566 0.499
3 12.426 3.545 48 2.174 1.495 93 0.550 0.487
4 11.889 3.499 49 2.102 1.459 94 0.535 0.475
5 11.378 3.452 50 2.032 1.425 95 0.521 0.463
6 10.893 3.406 51 1.965 1.391 96 0.507 0.452
7 10.431 3.358 52 1.901 1.357 97 0.493 0.441
8 9.991 3.310 53 1.839 1.325 98 0.480 0.430
9 9.573 3.262 54 1.779 1.293 99 0.467 0.419
10 9.174 3.214 55 1.721 1.262 100 0.455 0.409
11 8.795 3.165 56 1.666 1.231   
12 8.433 3.116 57 1.613 1.201   
13 8.089 3.067 58 1.561 1.172   
14 7.760 3.017 59 1.512 1.143   

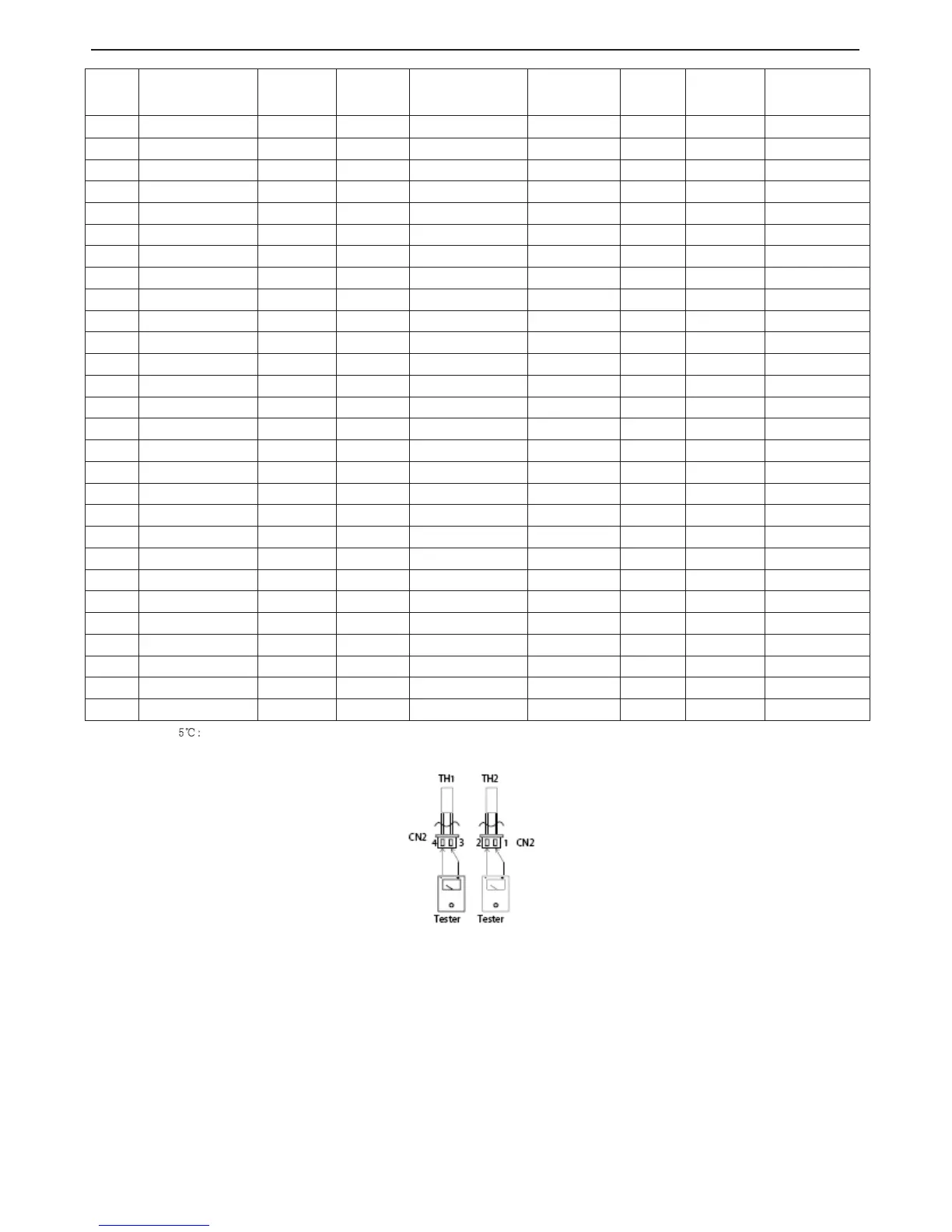

Resistance at 2ć 5 k.

TH1: indoor room temperature thermistor and outside air temperature thermistor
TH2: indoor exchange temperature themistor and outside exchange temperature thermistor
Before measuring resistance,disconnect connectors as shown above.
2. Outdoor unit thermistor temperature characteristics
3-4
Resistance
