Sharp AE-X12PSR - OUTDOOR UNIT DISASSEMBLY; [2] OUTDOOR UNIT DISASSEMBLY

SHARP(CHINA) INVESTMENT CO., LTD

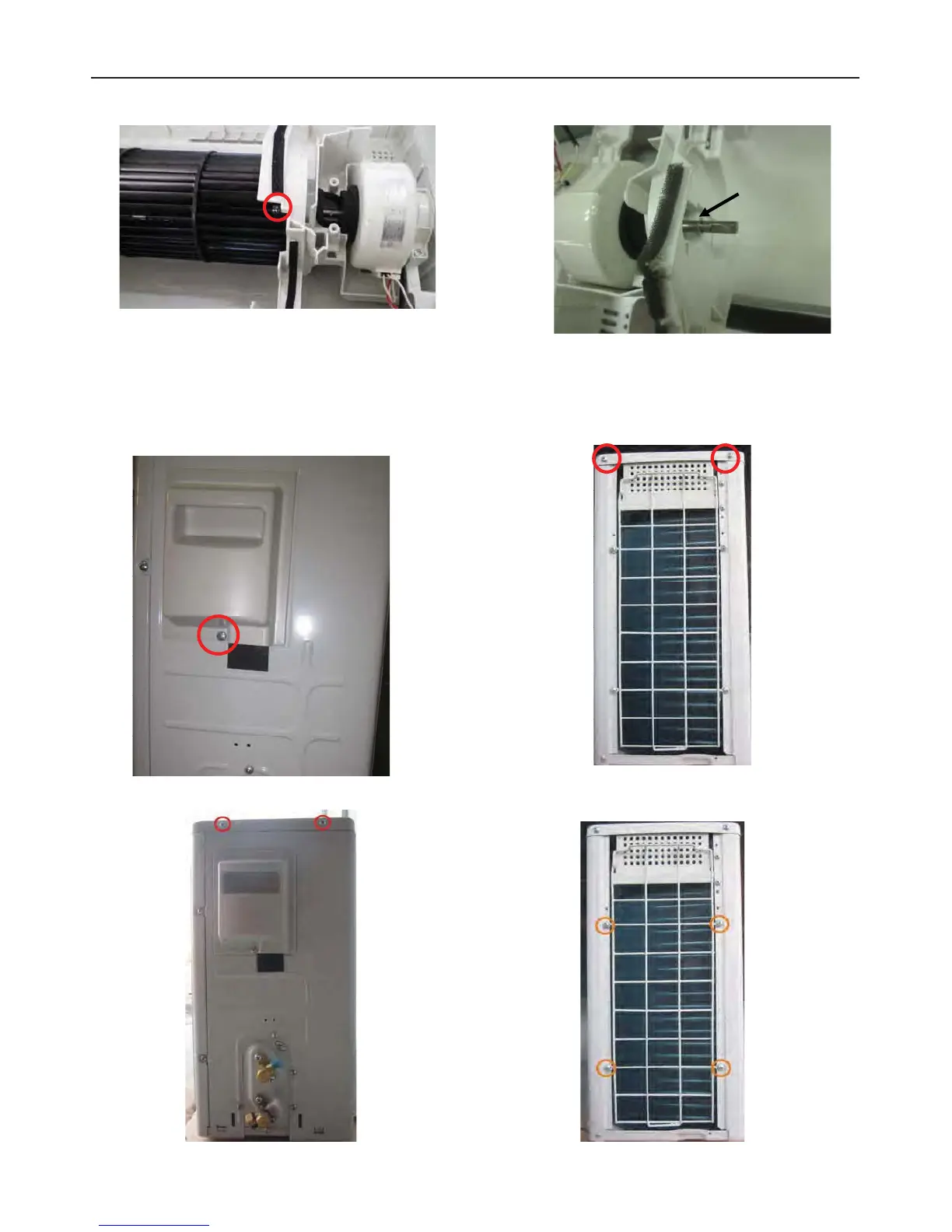

15) Loosen the screw of cross flow fan and separate the cross flow fan
and the fan motor
When assembling them, insert the motor shaft in the boss of thecross
flow fan to the ring position.
[2] OUTDOOR UNIT
1)The fixed screw of control box cover is removed and control
boxcover is removed.
3) The 2 screws on the left-hand side of top plate ass’y is removed.
2)The 2 screws on the right-hand side of top plate ass’y is removed. 4)The screw on the left-hand side of grille is removed
Ring
