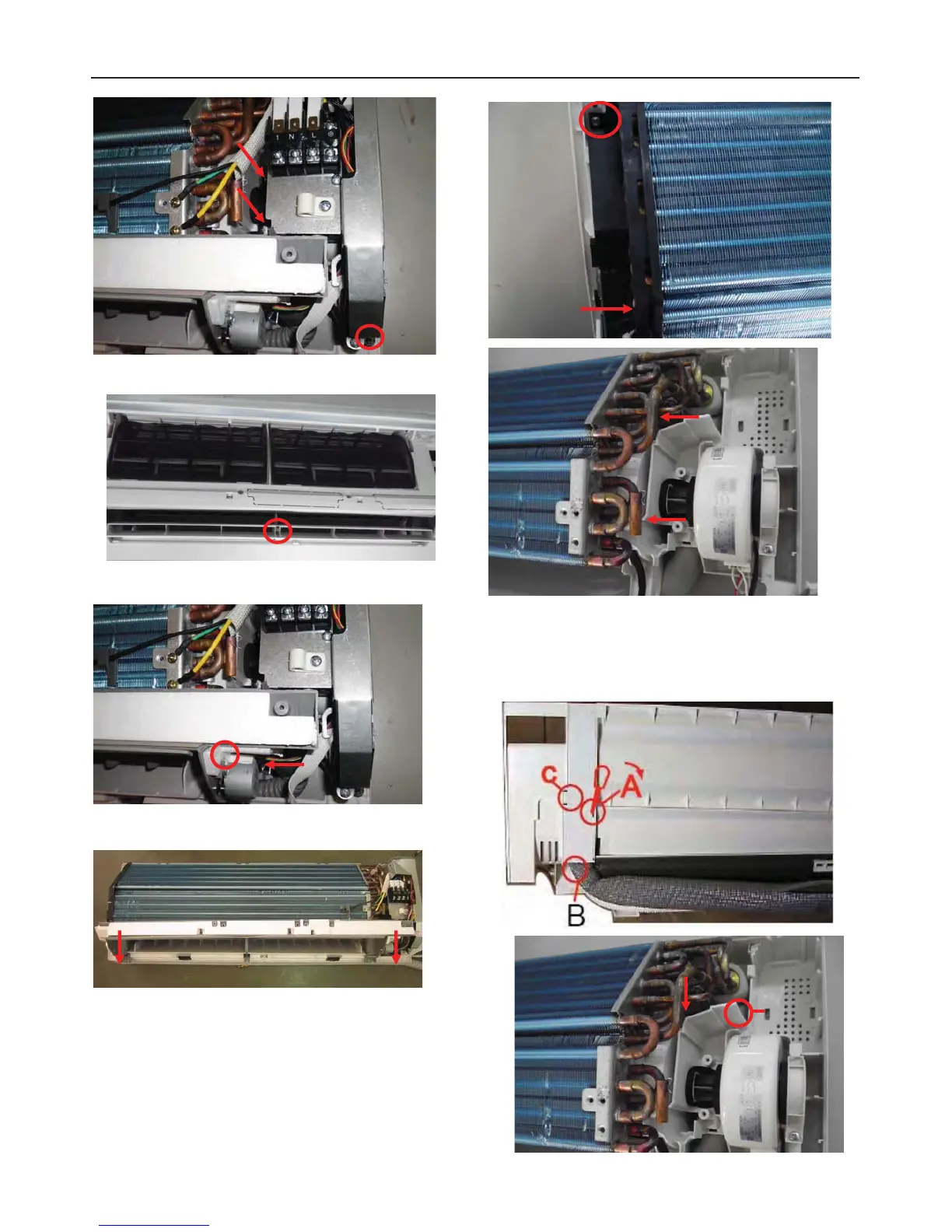

11) Remove the horizontal louver fromcabinet while warping.
12) Remove the two screw and remove the vane motor.
b) Remove the tube cover.
•Insert the (–) screwdriver to A hole, D clip and then lean it to theright
as lifting B part.
c) Remove the evaporator from the cabinet.
•Take off the catch of the tube cover from the plate and movethe evapo
13) Remove the water drainge assembly and take off .
14)
a) Remove the 4 screws fixing the side left and side right.
D
5-3
