5
AE-X15PU

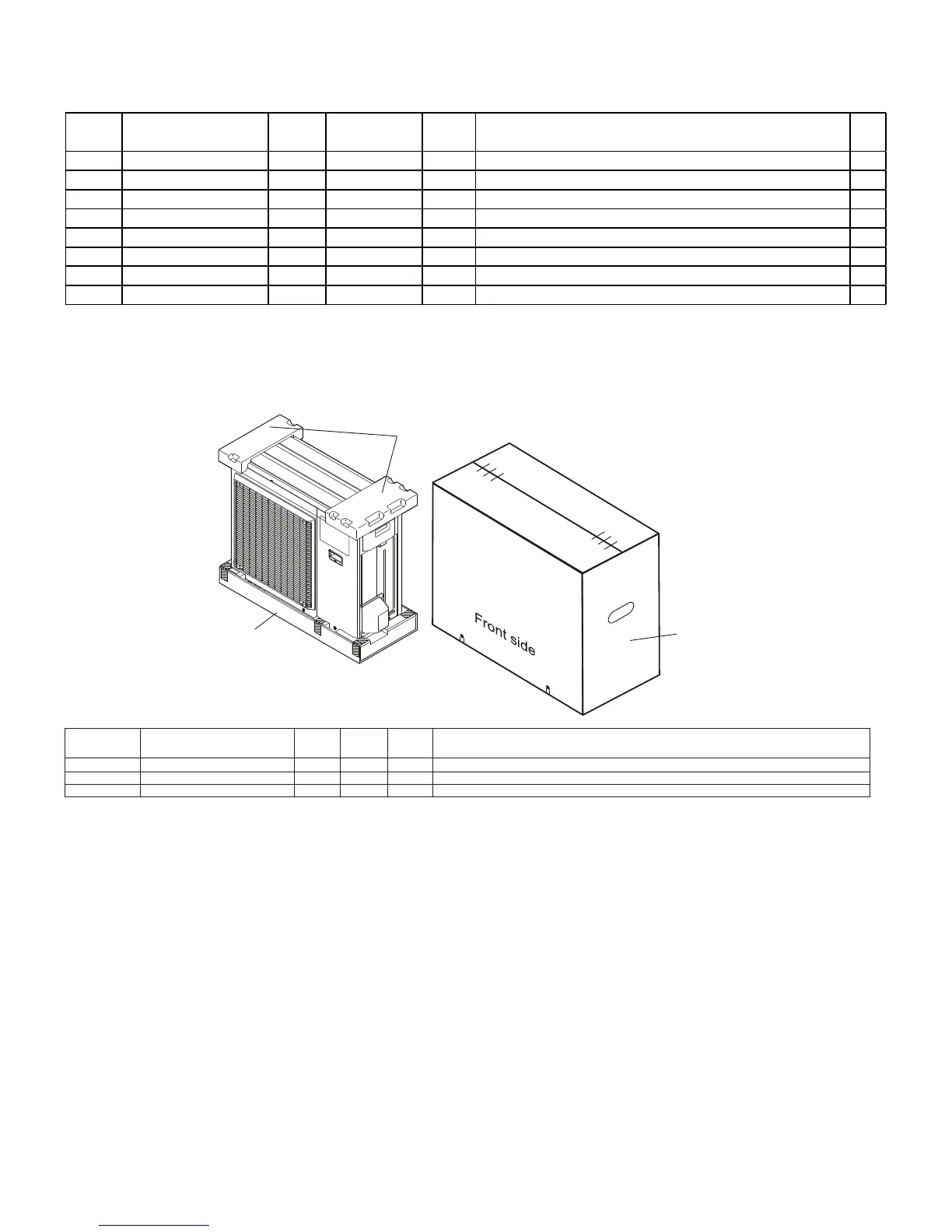

[4] OUTDOOR PACKAGE PARTS
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
5-1 CPADBA164JBKZ AZ Bottom Pad Assembly
5-2 CPADBA165JBKZ AN Packing Pad Assembly
5-3 SPAKCE213JBEZ BA Packing Case
5-3
5-1
5-2
NO. PARTS CODE
PRICE
RANK
NEW MARK
PART
RANK
DESCRIPTION Qty
4-11
QW-VZG615JBZZ AG Lead wire (BT14,BT15,BT16) 1
4-12
QW-VZG713JBZZ AF Lead wire (BT5) 1
4-13
QW-VZG762JBZZ AE Lead wire (BT4) 1
4-14
QW-VZG772JBZZ AE Lead wire (JPL1A-JPL1B) 1
4-15
QW-VZG773JBZZ AE Lead wire (JPL2C-JPL2D) 1
4-16
QW-VZG775JBZZ AE Lead wire (BT3) 1
4-17 RC-EZA371JBZZ
BB Capacitor(C8,C9,C10) 2
4-18 VHVTVR10511-B+
AD Varistot(NR1,NR2) 2
