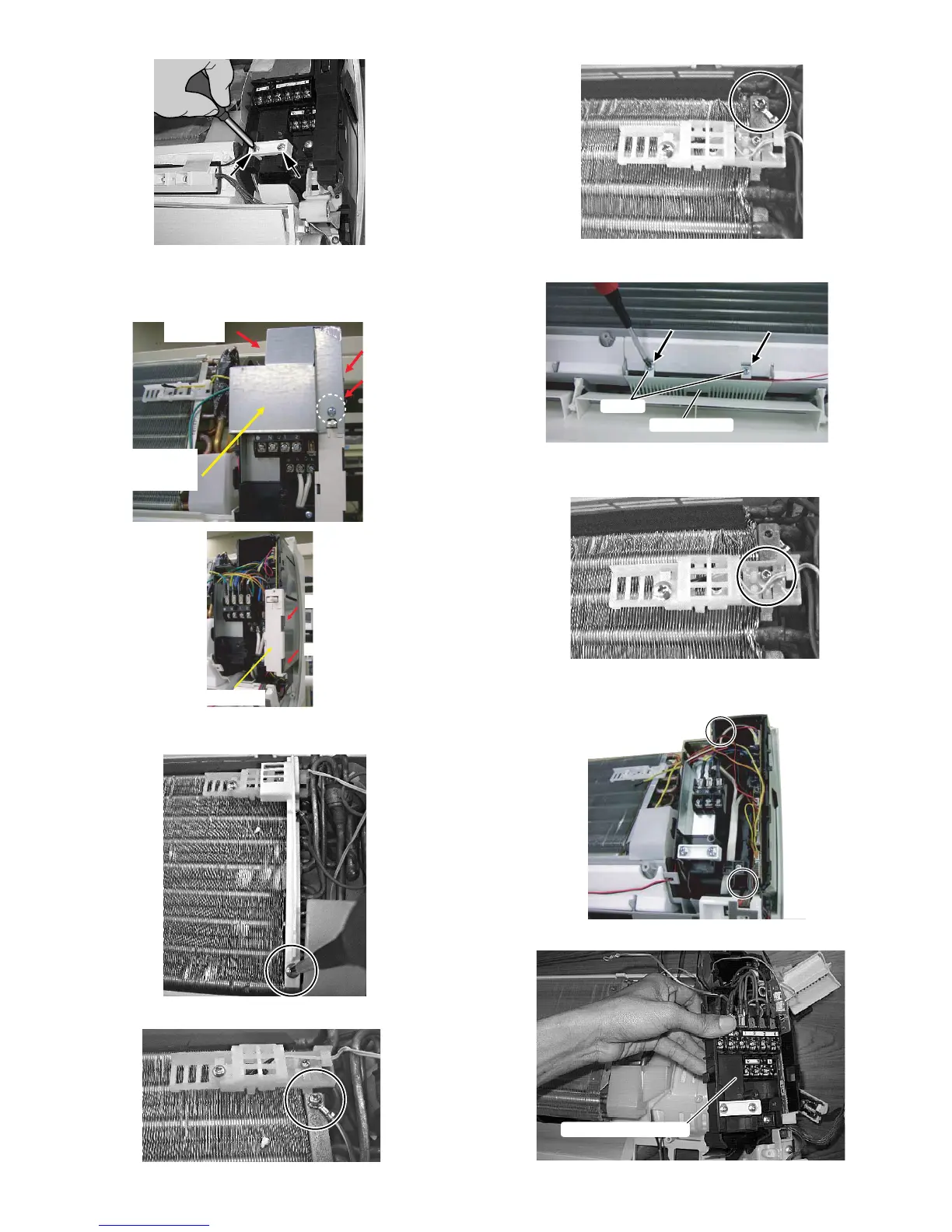

7) Remove a screw fixing the control cover.
Unfix 2 hooks and remove the control cover.
Unfix 2 hooks and remove the PWB holder.
8) Remove a screw fixing the cover and unhook the cover in the direc-
tion of an arrow. (18000BTU model only)
Remove a screw fixing the ground wire.
18000BTU MODEL
24000BTU MODEL
9) Remove 2 screws fixing the cover.
10)Remove a screw fixing the thermistor holder.
Remove the thermistor holder.
11)Disconnect the connector and remove 2 screws fixing the control
box assembly.
12)Remove the control box assembly.
㪟㪦㪦㪢
㪟㪦㪦㪢
㪪㪚㪩㪜㪮
㪚㫆㫅㫋㫉㫆㫃
㪺㫆㫍㪼㫉
