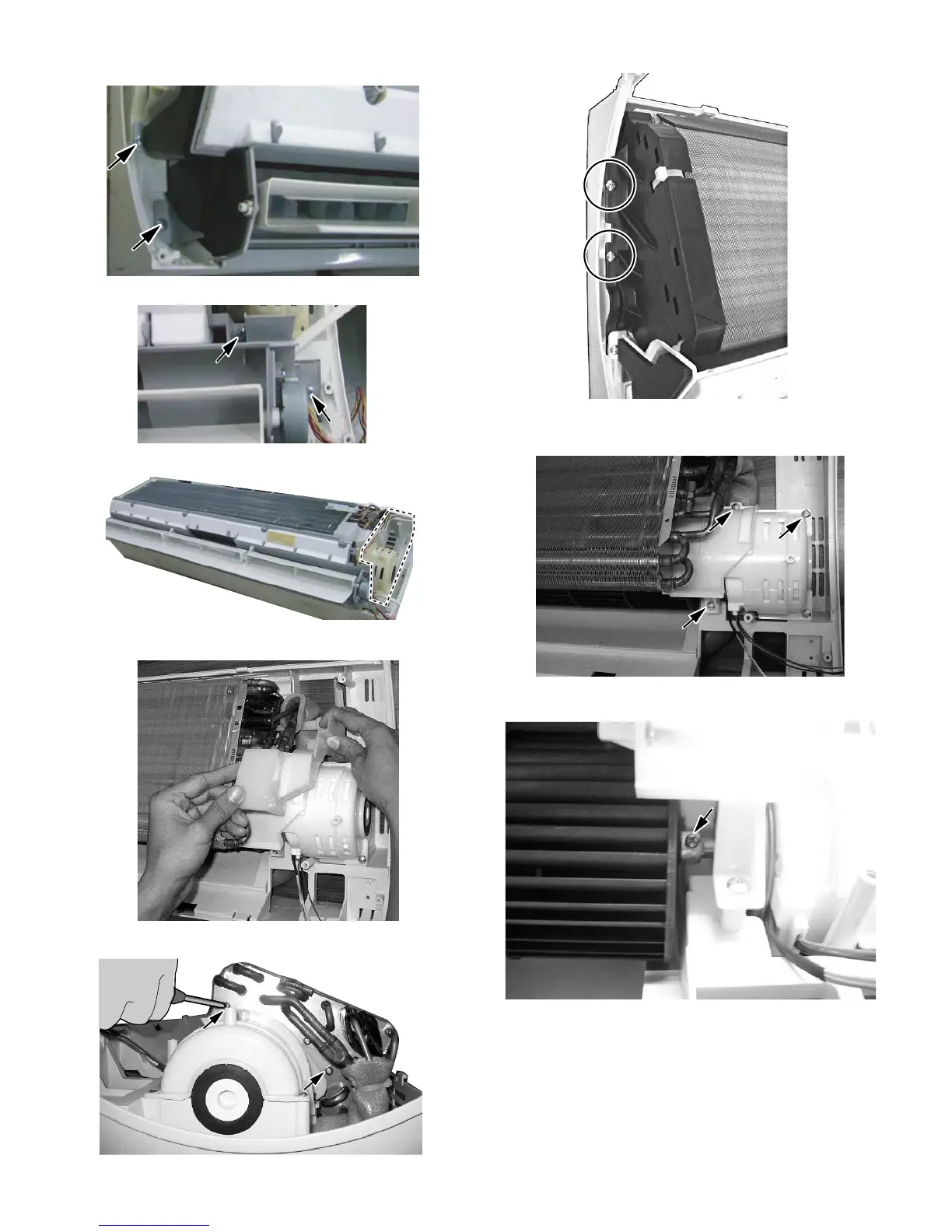

13)Remove 4 screws fixing the drain pan and pull drain pan toward
you.
Left side
Right side
14)Remove the drain cover from the evaporator.
15)Remove 2 screws fixing the evaporator.
16)Remove the 2 screws fixing the side coder L.
17)Remove 3 screws fixing the side cover R and remove the and
remove the evaporator from the cabinet.
18)Loose a screw fixing cross flow fan.
