A
YXPC18LR
5 – 4

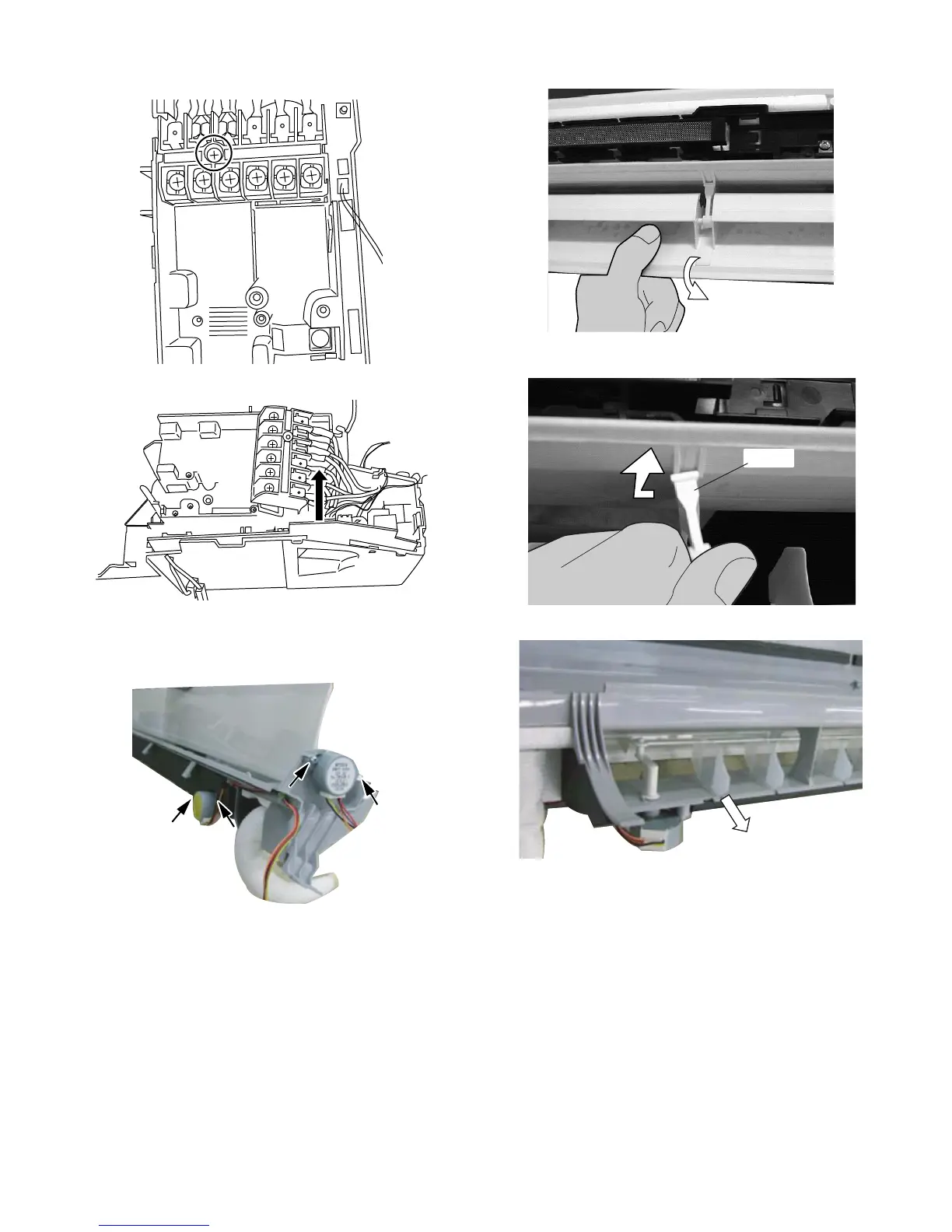

2. ELECTRIC CONTROL BOX
1)
Remove a screw fixing the term
inal board.
2)
Pull the control board unit.
3. The louver and related
1)
Remove the two screw fixing the louver motor.
2)
Open the horizontal louver to
remove it from the holders.
3)
Remove the holders.
4)
T
ilt the hooks of ver
tical louvers inside, and pull them up.
Holder
31
33
Table of Contents
Default Chapter
1
Table of Contents
1
Service Manual
1
Chapter 1. Product Specifications
2
Specification
2
External Dimentions
4
Wiring Diagrams
6
Electrical Parts
6
Chapter 2. Explanation of Circuit and Op- Eration Block Diagrams
7
Microcomputer Control System
9
Function
14
Startup Control
14
Full Power Operation
16
Self Clean Operation
16
Energy Saving Operation
17
Chapter 3 . Function and Operation of Pro-
20
Troubleshooting Guide
20
Tective Procedures 1] Troubleshooting Guide
20
Chart
21
Chapter 4. Refrigeration Cycle
26
Refrigeration Cycle
26
Performance Curves
27
Refrigerant Pipe Installation Works
28
Chapter 5. Disassembling Procedure
29
Indoor Unit
29
Outdoor Unit
33
Parts List
39
5
