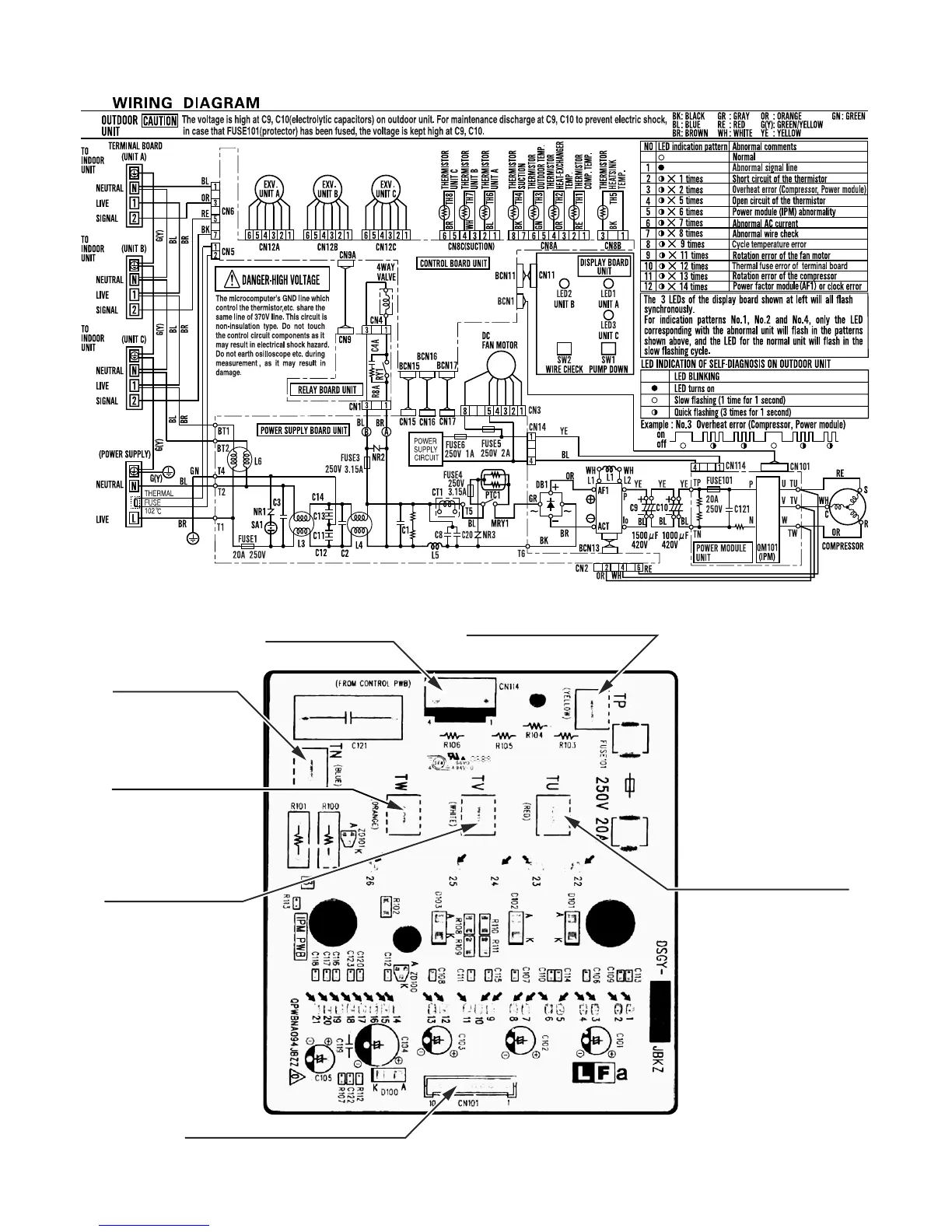

[5] WIRING DIAGRAMS
IPM P.W.B.
from ELECTROLYTIC CAPACITOR C10(+)
from ELECTROLYTIC
CAPACITOR C10(-)
from COMPRESSOR TERMINAL
W "ORANGE"
from COMPRESSOR TERMINAL
V "WHITE"
from COMPRESSOR TERMINAL
U "RED"
from CONTROL PWB CN14
from CONTROL PWB BCN1
