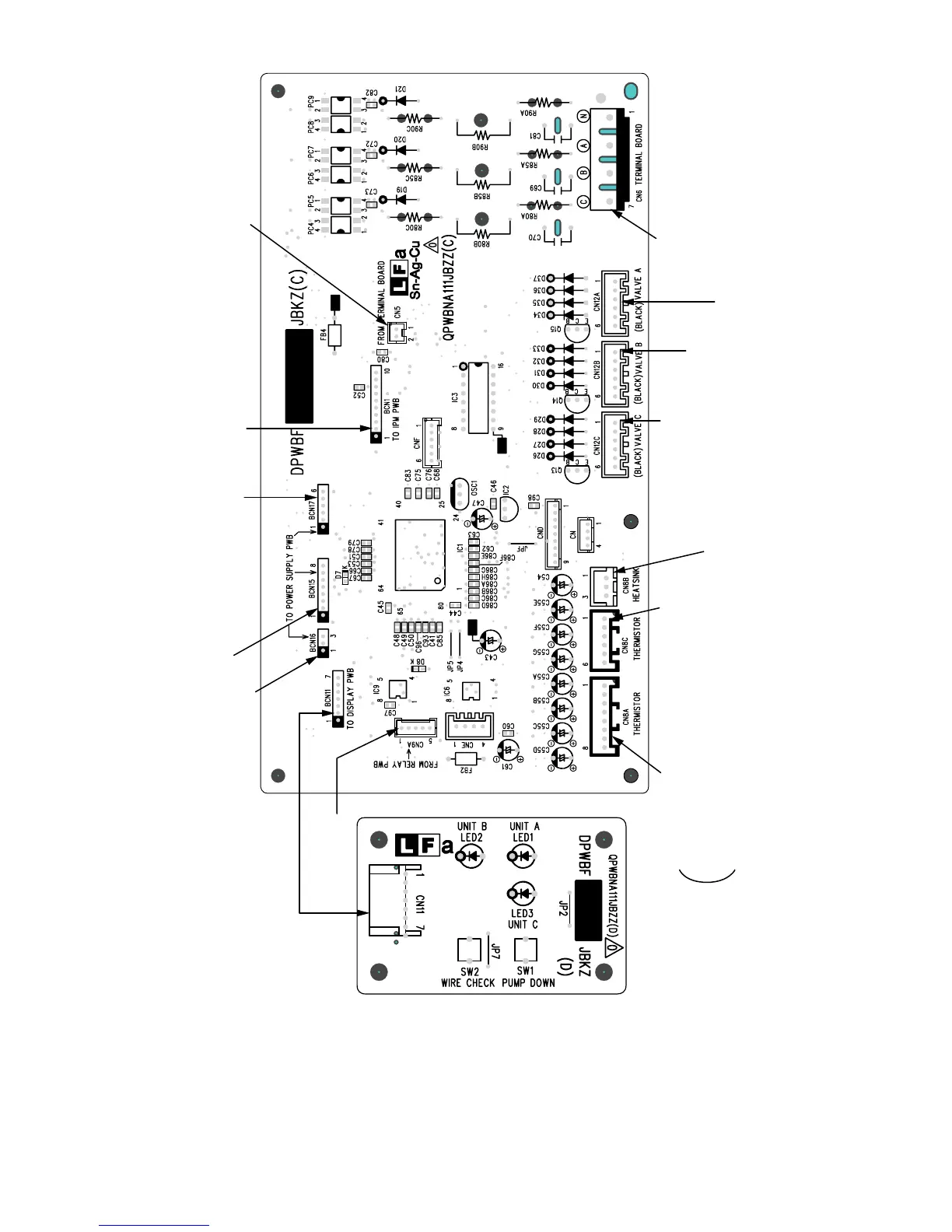

CONTROL P.W.B and DISPLAY P.W.B
from THERMISTOR
from HEAT SINK THERMISTOR
from SUCTION THERMISTOR
from IPM PWB "CN101"
from RELAY P.W.B. "CN9"
from POWER SUPPLY P.W.B. "CN16"
from POWER SUPPLY P.W.B. "CN15"
from POWER SUPPLY P.W.B. "CN17"
from EXPANSION VALVE C
from EXPANSION VALVE B
from EXPANSION VALVE A
from TERMINAL BOARD POWER SUPPLY
from TERMINAL BOARD UNIT A - "N" UNITA~C-"2"
COMP. TENP. HEAT EXCHANGER TEMP. OUT DOOR TEMP. SUCTION TEMP.
DISPLAY P.W.B
CONTROL P.W.B
