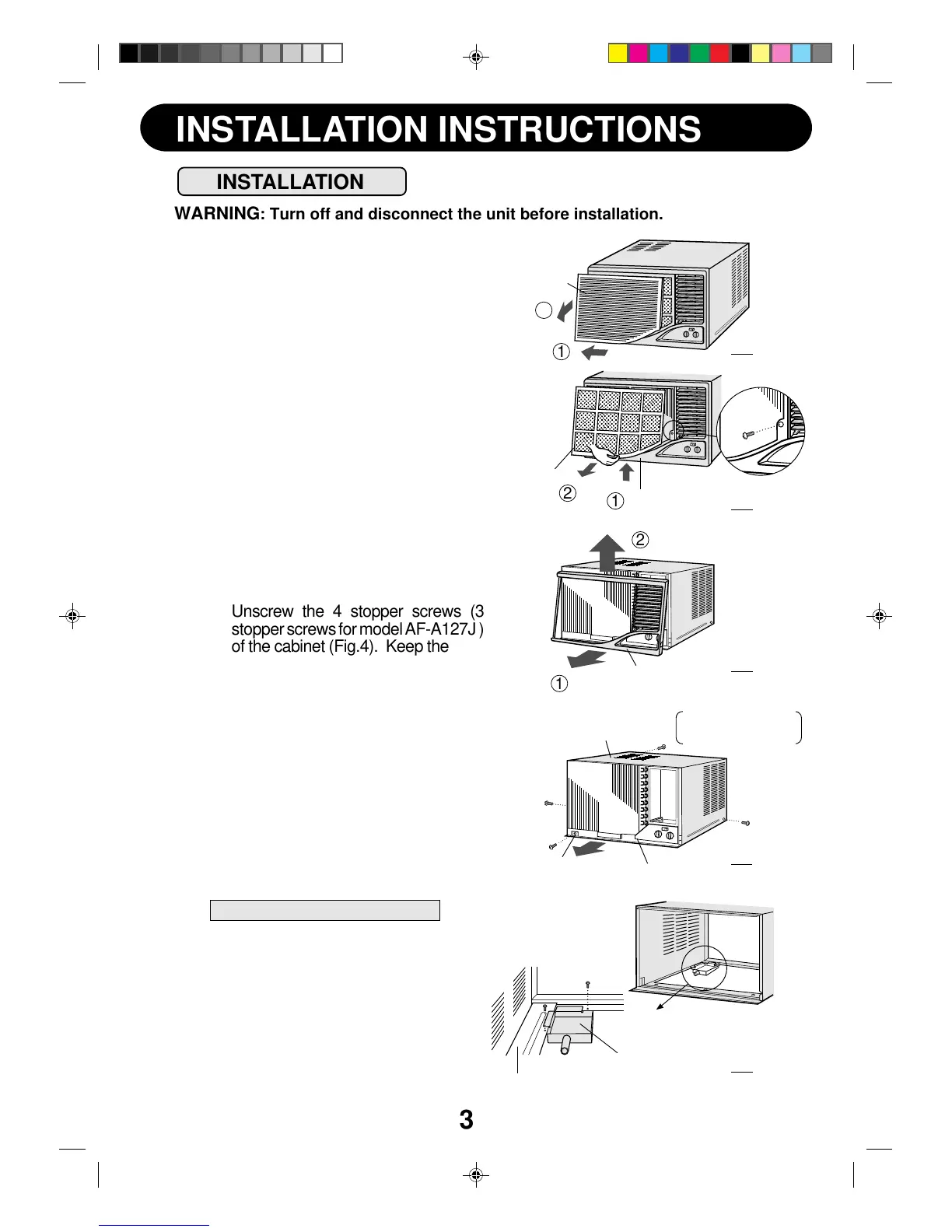

INSTALLATION INSTRUCTIONS
INSTALLATION
WARNING: Turn off and disconnect the unit before installation.
Unscrew the 4 stopper screws (3
stopper screws for model AF-A127J )
of the cabinet (Fig.4). Keep the front
screw and the angle as they will be
used later in step 6.
Slide the chassis out from the cabi-
net by pulling the hand hold located
at the bottom centre of the chassis.
(Fig.4)
WARNING:
To avoid injury, observe correct
lifting practices when handling
the unit.
When drainage is necessary
Grille
Fig.1
Air filter
Front panel
Fig.2
Front panel
Fig.3
Only for models
AF-A077J and AF-A097J
Cabinet
Angle
Chassis
Fig.4
Cabinet
Drain tray
Fig.5
Water (humidity) is removed from
the room and collected in the bottom
of the unit, at times the water can be
heard splashing inside the unit, this
is normal.
If you find the splashing sound an-
noying, the water can be drained
away by installing the drain feature
as follows:
Remove the grille (Fig.1) and the
air filter (Fig.2) from the front panel.
Unscrew the screw fixing the front
panel to the chassis. (Fig.2)
Keep the screw as it will be used
later.
Remove the front panel by pulling
the front panel at the lower corners
towards you for about 3 cm (1" ).
Then lift it up and pull it towards
you. (Fig.3)
2
1
2
3
(1)
(2)
(1)
(2)
AF-A077J 2çZ-2 98.1.6, 0:11 PM4
