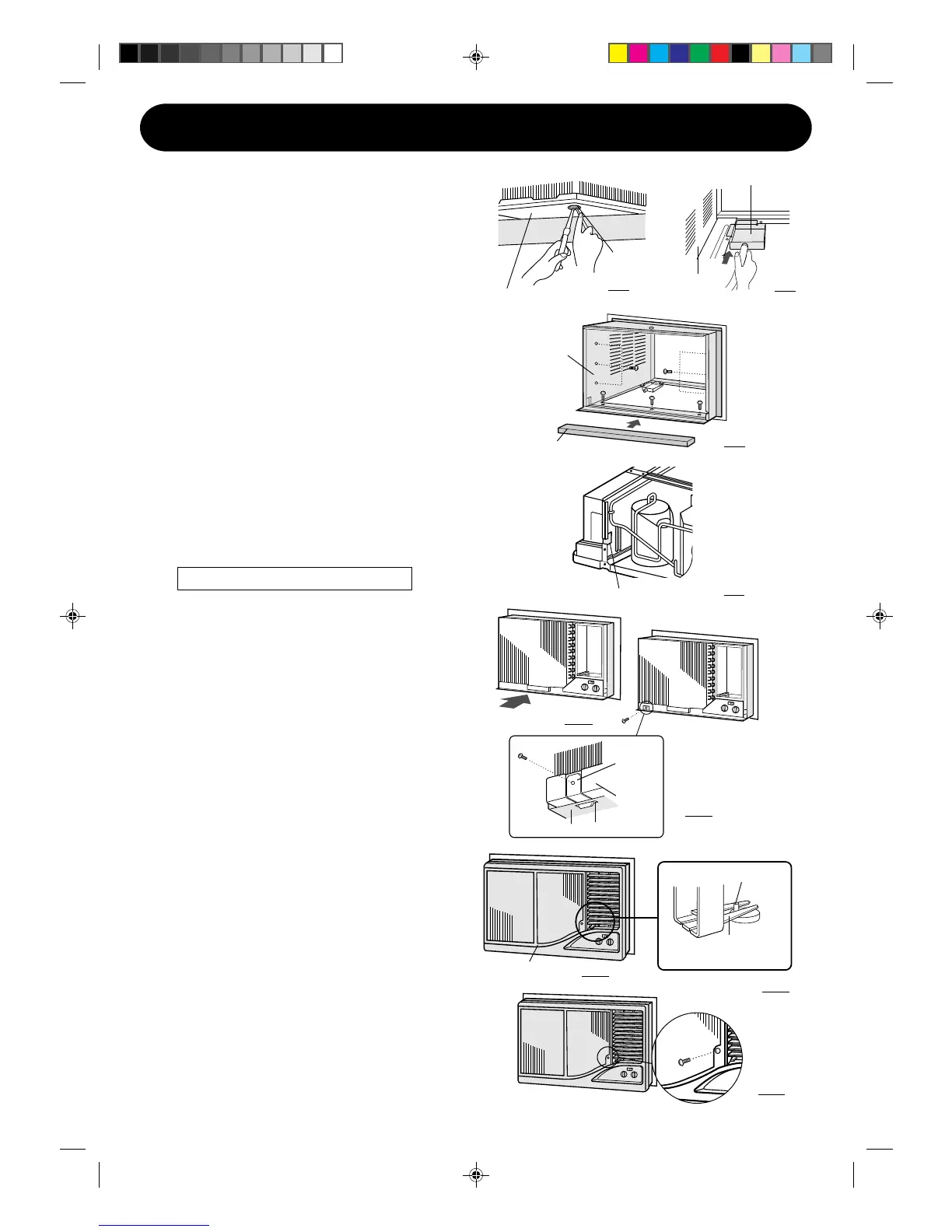

Attach the provided drain tray to the
cabinet using the 2 short gold screws
( also provided ) as shown in Fig. 5.
Remove the rubber cap in the base of
the unit as depicted in Fig. 6.
Fit a suitable hose to the drain tray as
shown in Fig. 7.
Install the cabinet into the installation
opening.(Fig.8)
Secure the cabinet to the mounting
frame using the 9 long gold screws.
(2.5cm/1"). (Fig.8)
Squeeze the gasket into the gap be-
tween the mounting frame and the
unit to seal outside air. (Fig.8)
Models AF-A077J, AF-A097J
After the power cord is taken out, there is
an opening at the back side of the chas-
sis's metal panel. Please use the pro-
vided insulator to fill it up. (Fig.9)
Chassis
Rubbur cap
Fig.6
Cabinet
Drain tray
Fig.7
Cabinet
Gasket
Fig.8
Insulator
Fig.9
Fig.10
Fig.11
Front panel
Fig.12
Crank shaft
Louvre link
Front panel back view
Fig.13
Fig.14
4
5
(1)
(2)
(3)
(1)
(2)
(3)
Slide the chassis back into the cabi-
net. (Fig. 10)
Secure the chassis to the cabinet
using the screw and angle removed in
step 2. Push the angle into the gap
between the chassis and the cabinet.
Hook the angle into the slit of the
cabinet, and then screw it onto the
chassis. (Fig. 11)
Replace the front panel. (Fig.12)
Slide the crank shaft into the opening
of the louvre link at the back of the
front panel. (Fig.13)
Secure the front panel with the screw
removed in step 1 (Fig.14) and re-
place the air filter and the grille.
