AFS120FX
1 – 10

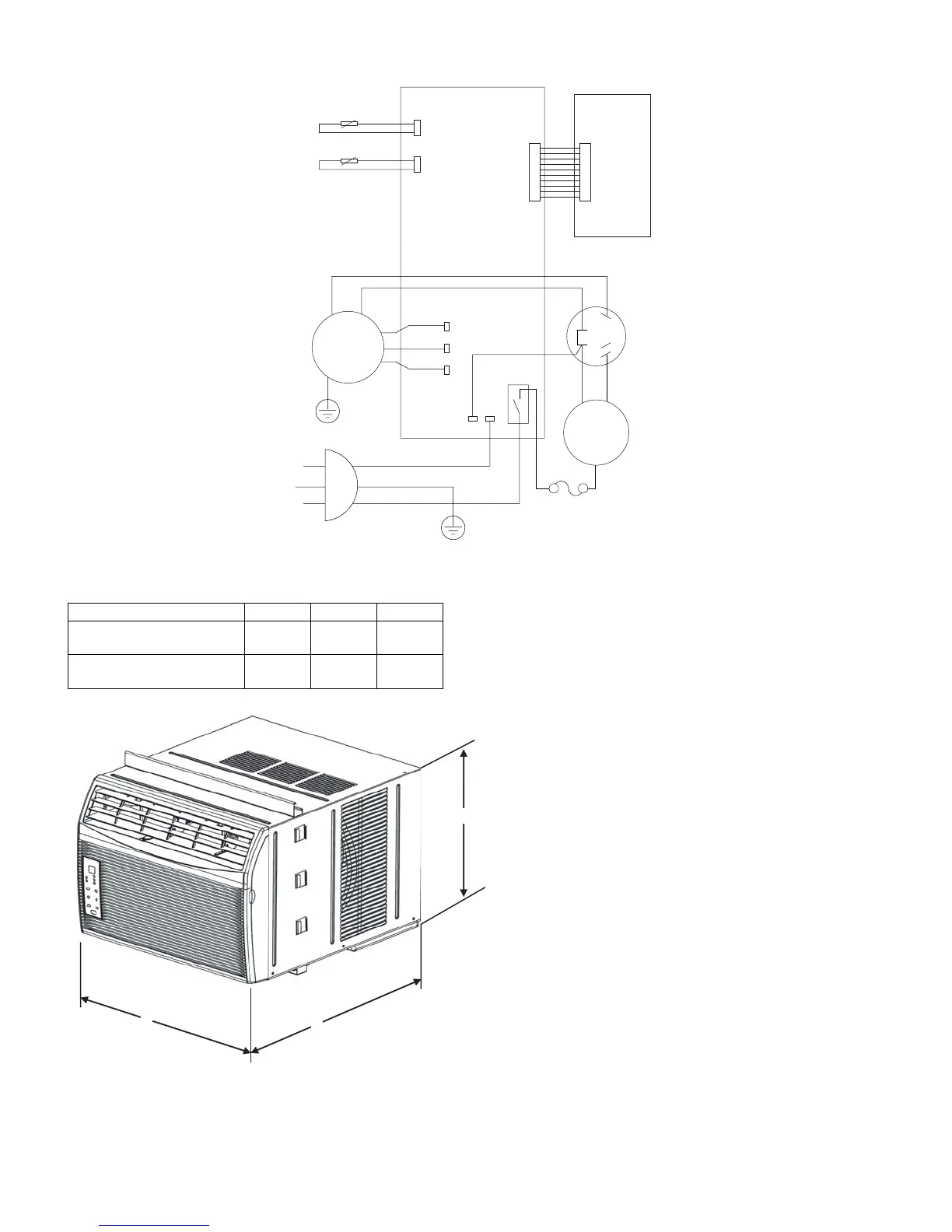

[2] WIRING DIAGRAM
[3] EXTERNAL DIMENSION
Model A (mm) B (mm) C (mm)
AF-S60FX
470 415 320
AF-S80FX AF-R80FX
AF-S100FX AF-R100FX
485 585 365
AF-S120FX AF-R120FX
CONTROL BOARD
EVAPORATOR SENSOR
AMBIENT SENSOR
CN1
CN3
CN7
P1
P2
P3
P4
COMP
L
CAPACITOR
COMPRESSOR
OVERLOAD RELAY
POWER SUPPLY
FAN MOTOR
P5
DISPLAY BOARD
BLACK
BLACK
BLACK
BLUE
BLUE
WHITE
WHITE
GREEN
YELLOW
RED
RED
Y/G
BLUE
A
B
C
