Sharp AF-S60FX User Manual

AFS120FX
3

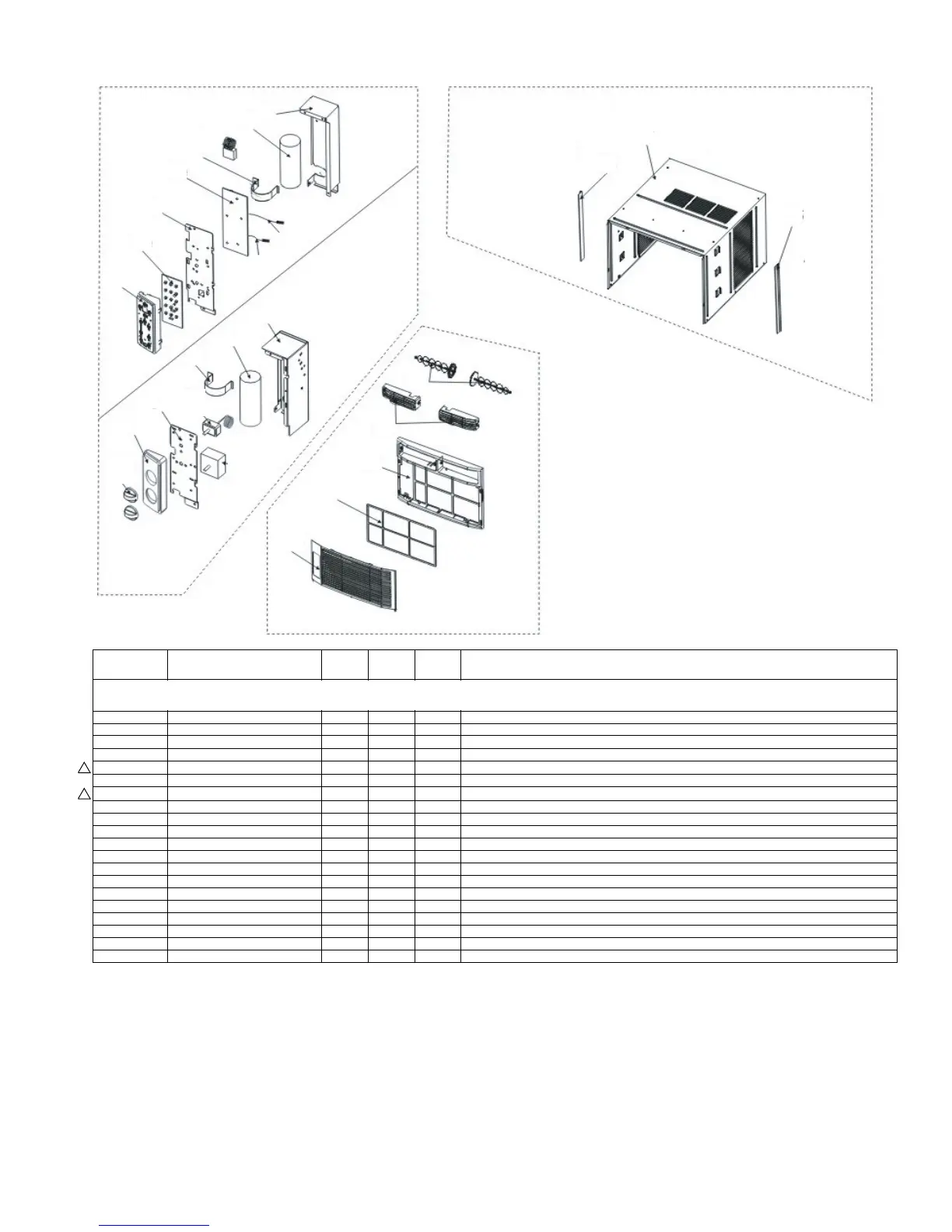

[2]  Electric control system  Cabinet and shutter  Front panel ass'y (Small)
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
[2]  Electric control system  Cabinet and shutter  Front panel ass'y (Small)
3 LPLTMA2 13JBPZ AK Electric part box
4 RC-HZA525JBEZ BA Capacitor[S60FX]
4 RC-HZA540JBZZ BB Capacitor[R80FX][S80FX][S85FX]
6 LBNDKA134JBPZ AD Capacitor clamp
!
7e DPWBFA420JBKZ BM Main control board
8 LPLTMA2 14JBPZ BR Installation board for e-parts
!
9e DPWBFA421JBKZ BA Display board
10 HPNLCA879JB FA AM Control box
10 HPNLCA880JB E A AD display panel
11 RH-HXA050JBZZ AM Evaporator temp sensor
12 RH-HXA049JBZZ AM Indoor temp sensor
16 LANGKA195JBFA AD Connection bar to cabinet
17 GCAB-A300JBTA BC Cabinet
20 GWAKPA171JBFA BA Front panel (included in 44)
21 PFILMA207JBEA AG Air filter (included in 44)
22 GWAK-A320JBFA AV Panel frame (included in 44)
23 MLOV-A405JBFA AM Horizontal louver (included in 44)
24 MLOV-A406JBFA AD Vertical louver (included in 44)
24 MLOV-A421JBFA AD Vertical louver B (included in 44)
24 MJNTPA121JBFA AD Louver link (included in 44)
