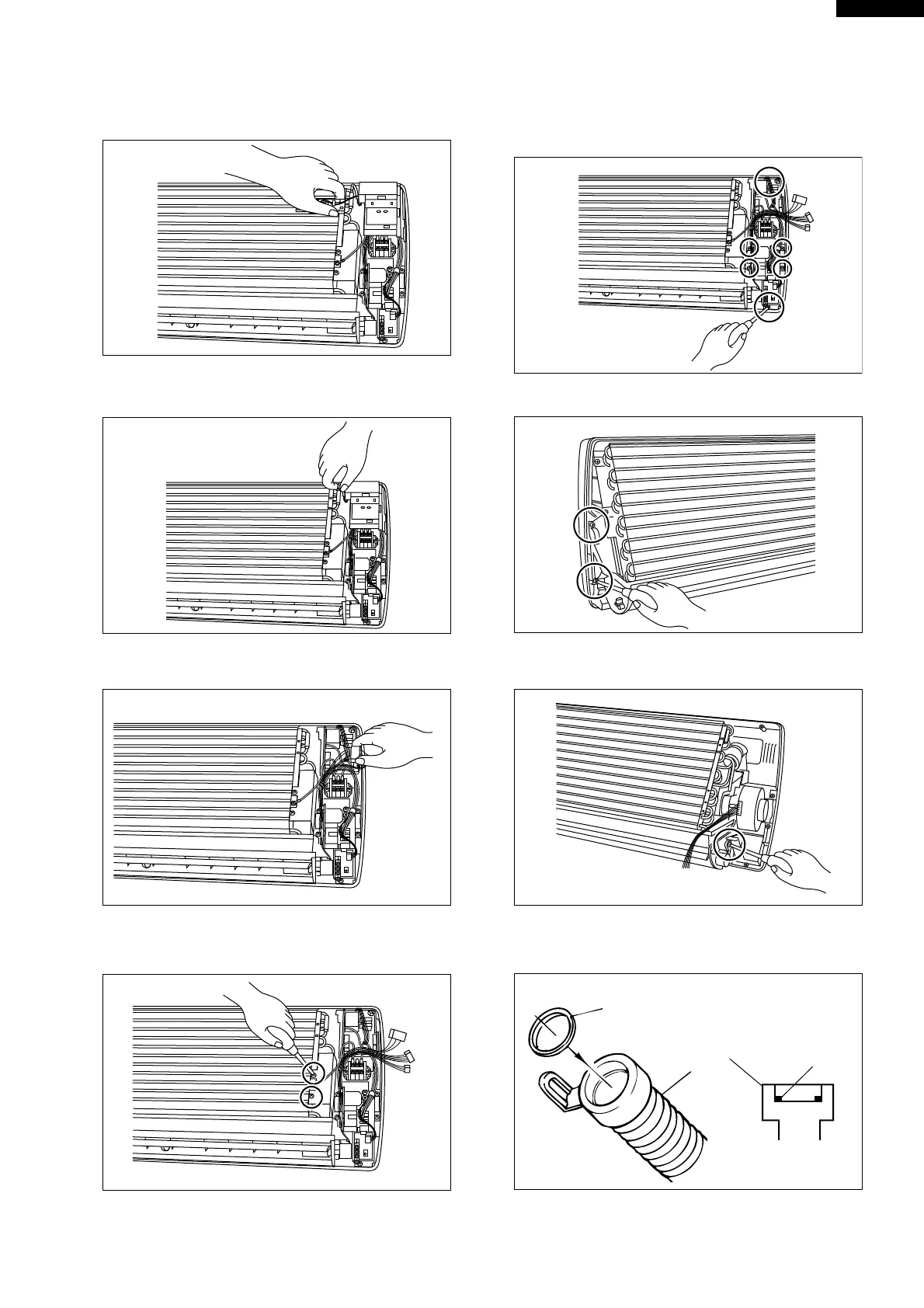

7. Take the thermistor holder from evaporator.
8. Take out the thermistor from evaporator.
9. Disconnect fan motor connectors and others.
10.Loose 2 screws for a pipe cover and take it out.
Loose the earth screw.
11.Loose 6 screws fixing control box and take out control
ass’y.
12.Loose 2 screws fixing drain pan ass’y. (Left side)
13.Loose a screw fixing drain hose.
14.When assembling, make sure that O ring is fitted to
the drain hose.
O-ring
O-ring
Drain hose
(Section)
To Next Page
