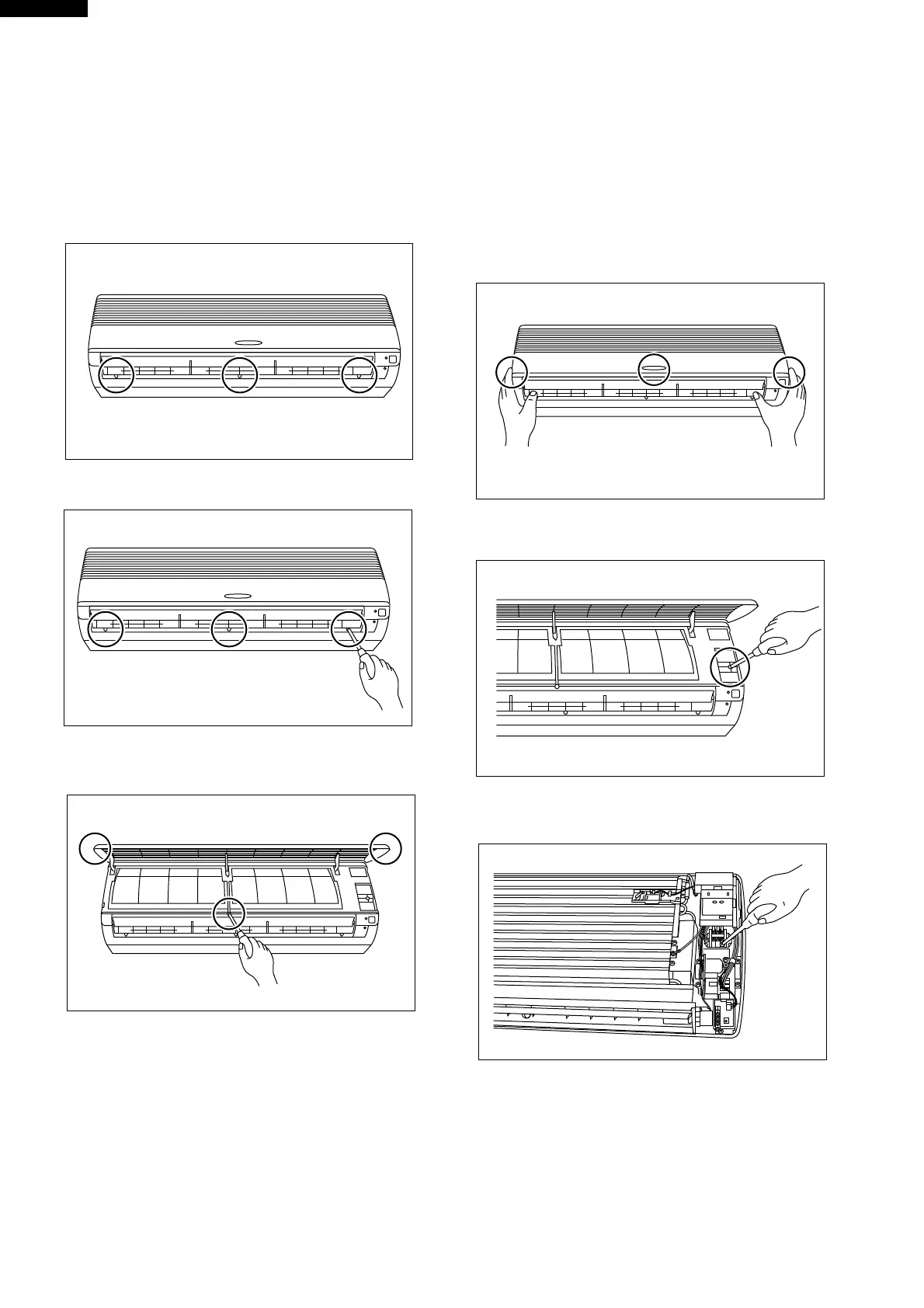

1. Remove the 3 screw covers in the front panel.
2. Remove 3 fixed screws.
4. Close the open panel softly, and then press B and C
of it securely.
Remove the front panel ass’y as to lift up.
DISASSEMBLING PROCEDURE
INDOOR UNIT
CAUTION: DISCONNECT THE UNIT FROM THE POWER SUPPLY BEFORE ANY SERVICING
5. Loose a cord clamp screw and take it out.
6. Loose 3 screws on the terminal board and take out
the unit-to-unit cord from it.
3. Pull the open panel at A toward you.
Remove a fixed screw.
