EN-2
INDOOR UNIT

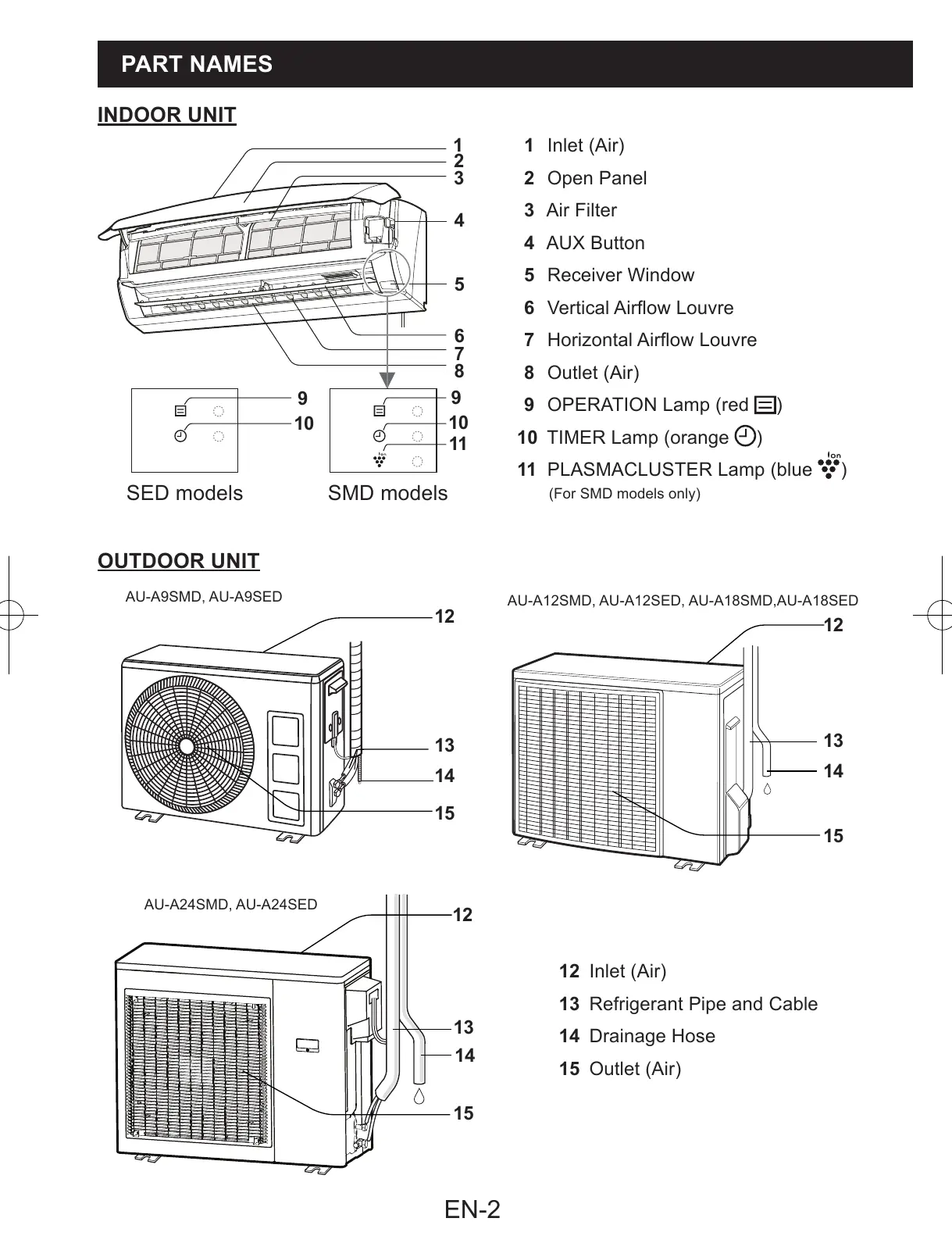

PART NAMES
1
Inlet (Air)
2
Open Panel
3
Air Filter
4
AUX Button
5
Receiver Window
6
7
8
Outlet (Air)
9
OPERATION Lamp (red )
10
TIMER Lamp (orange )
11
PLASMACLUSTER Lamp (blue )
(For SMD models only)
9
1
2
3
4
5
6
7
8
11
10
9
1
0
OUTDOOR UNIT
12
13
14
15
12
13
14
15
12
Inlet (Air)
13
Refrigerant Pipe and Cable
14
Drainage Hose
15
Outlet (Air)
AU-A9SMD, AU-A9SED
AU-A12SMD, AU-A12SED, AU-A18SMD,AU-A18SED
SED models SMD models
12
13
14
15
AU-A24SMD, AU-A24SED
