Sharp AQUOS 4P-B55EJ2U User Manual

[ENGLISH]
Contents
1.
Part Names
2.
Introduction
3.
Direct Button Operation
4.
On
-Screen Display Menu
5.
Application
6.
Using a PC
7.
Using the touch function
8.
Appendix
1.
Setting the TV on the Wall
2.
Troubleshooting
9.
Specifications
10.
Trademarks
11.
Dimensional Drawings
>>
<<
Ver. 1.1
4W-B55FT5U and 4W-B65FT5U 4W-B75FT5U 4W-B86FT5U

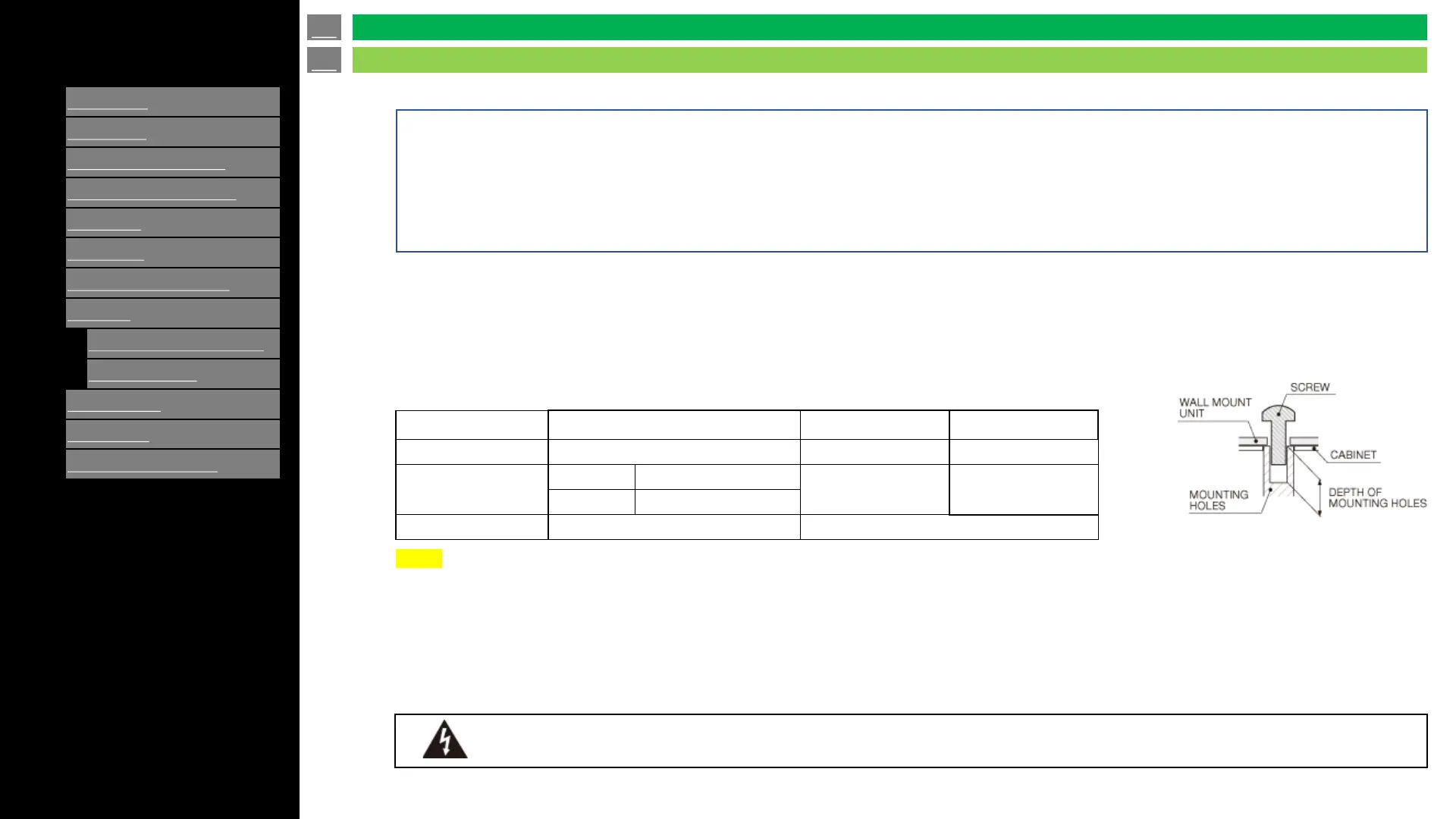

Standard screws
M6 (1.0 pitch) M8 (1.25 pitch) M8 (1.25 pitch)
Length(Depth of
mounting holes)
Upper side
33 mm
24 mm 30 mm
Lower side
10 mm
Quantity
4 pcs. (set in the box) 4 pcs.
Unit mm
For the screws, refer to the table shown below.
NOTE
• To use this TV mounted on a wall, remove the cable tie as needed.
• Do not use screws that do not comply with the VESA standard screw specifications.
• Do not use screws that are longer than the standard length. Screws that are too long may cause damage to the inside of the TV.
• Do not fasten the screws too firmly or loosely. This may damage the product or cause the product to fall, leading to personal injury. SHARP is not
liable for these kinds of accidents.
• SHARP is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used, or the consumer fails to follow the
product installation instructions.
Do not install the wall mount kit while your TV is turned on. It may result in personal injury due to electric shock.
• Screws which suits for each models are set in the box.
• Especially, 55”, 65” models are different length screws required for either upper side and lower side.
• Screws for each upper and lower side are packed to separate bags (55”, 65” models).
• Please take care length of screws.
- Long length screws: for upper side
- Short length screws: for lower side
For 4W-B55FT5U and 4W-B65FT5U
For Rest of models
• Screw length is the same for upper side and lower side.
• 4 pcs. of sleeves are set in the box. Please insert these to each VESA holes before fasten screws.
en-US 62
Setting the TV on the Wall
Appendix

Sharp AQUOS 4P-B55EJ2U Specifications

General

Screen shape	Flat
LED backlight	Yes
Response time	6 ms
Display diagonal	55 \
Display brightness	300 cd/m²
Display technology	LCD
Native aspect ratio	16:9
Native refresh rate	60 Hz
LED backlighting type	Direct-lit LED
Supported video modes	480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
Contrast ratio (typical)	1300:1
Display number of colors	1.07 billion colors
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1920 x 1080 (HD 1080), 3860 x 2160
Motion interpolation technology	-
Tuner type	Analog & digital
Analog signal format system	NTSC
Digital signal format system	ATSC
RMS rated power	16 W
Number of speakers	2
Stand type	Legs stand
Product color	Black
High Dynamic Range (HDR) technology	High Dynamic Range 10 (HDR10)
HDMI ports quantity	3
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Control type	Wireless
Power consumption (standby)	- W
Power consumption (typical)	130 W
Operating temperature (T-T)	0 - 40 °C
Package type	Box
Package depth	123.95 mm
Package width	1346.2 mm
Package height	805.94 mm
Package weight	15998 g

Weight and Dimensions

Depth (with stand)	73.66 mm
Width (with stand)	1227 mm
Height (with stand)	711.2 mm
Height (without stand)	710 mm
Weight (without stand)	12800 g
