Sharp AQUOS 9JDJ3BX0131A

15

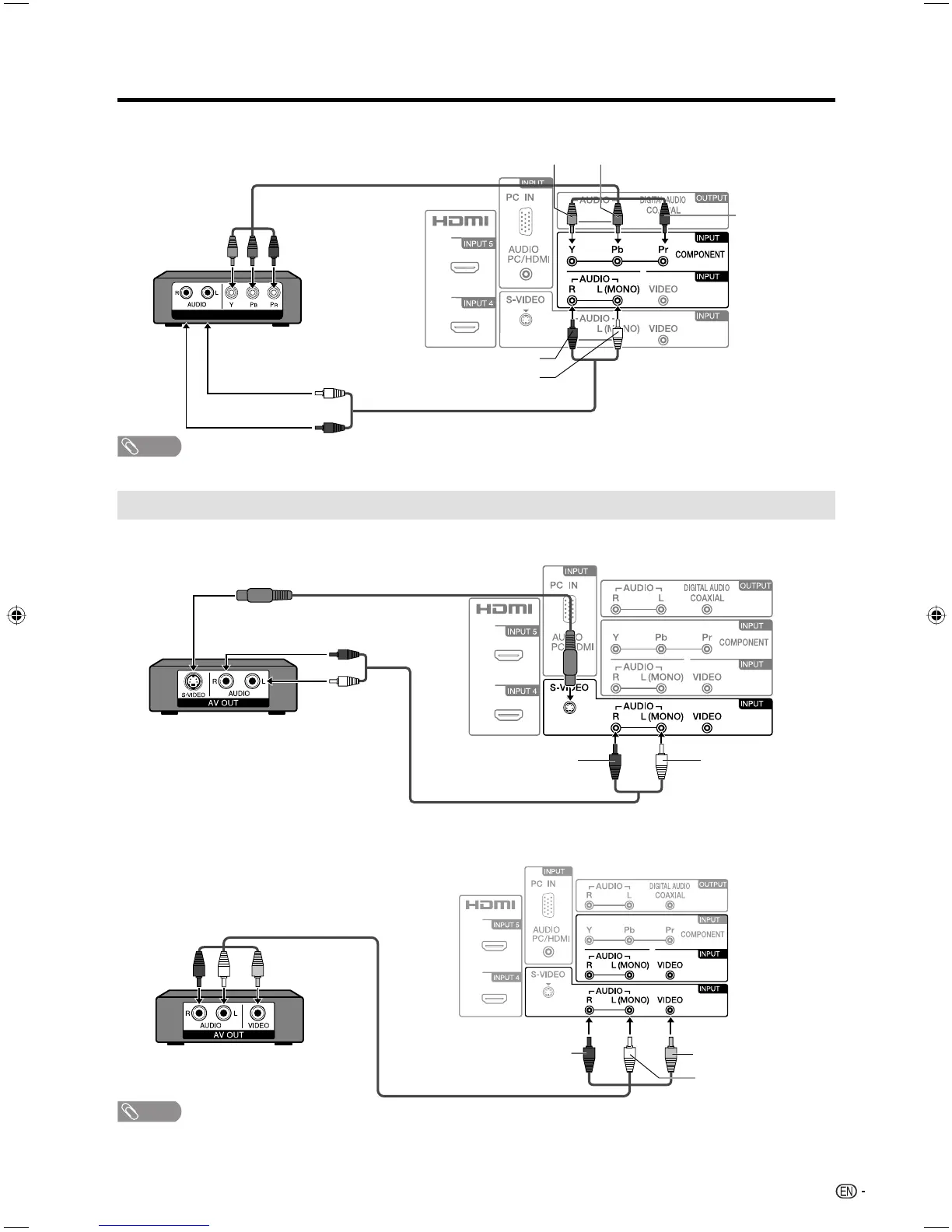

■ When using Component cable (INPUT 3):
Blu-ray disc player
DVD player
HD cable/satellite set-top box
6
1
2
3
COMPONENT OUT
Rear of the TV
Audio cable
Component video cable
AUDIO-L (White)
AUDIO-R (Red)
Pr (Red)
Pb (Blue)Y (Green)
NOTE
See page 14 for connecting a Blu-ray disc player, DVD player or an HD cable/satellite set-top box to the HDMI terminal.
Connecting a VCR, Game Console, Camcorder or Cable/Satellite Set-top Box
■ When using S-VIDEO cable (INPUT 1):
Game Console
Camcoder
VCR
6
1
2
3
Rear of the TV
S-VIDEO cable
Audio cable
AUDIO-L (White)AUDIO-R (Red)
■ When using Composite cable (INPUT 1 or 2):
Game console
VCR
Camcorder
Cable/Satellite set-top box
AV cable
1
2
6
3
AUDIO-R (Red)
AUDIO-L (White)
VIDEO (Yellow)
Rear of the TV
NOTE
The S-VIDEO terminals take priority over the Video terminals.
•
•
•
•
•
•
•
•
•
•
•
•
Connecting to External Equipment
