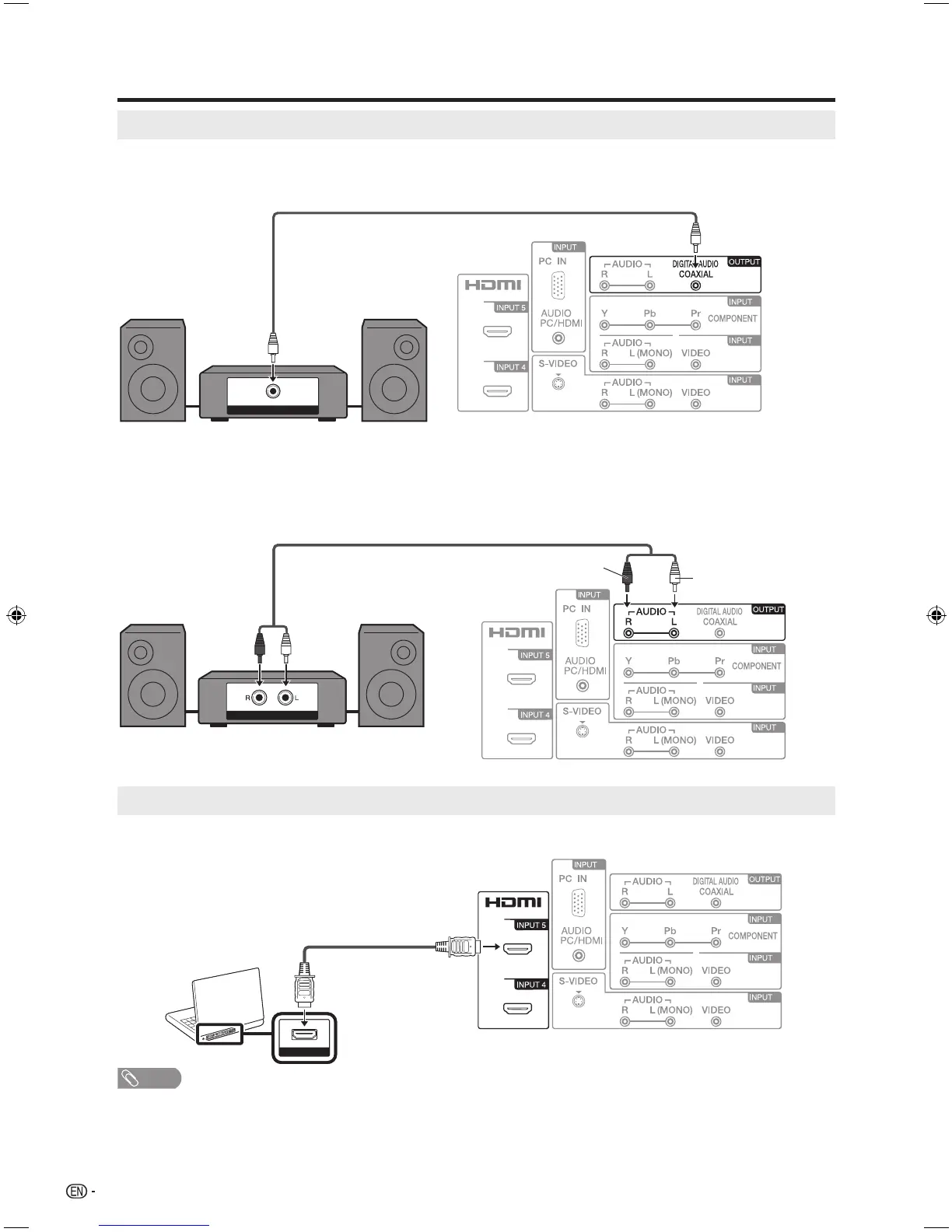

Connecting an Audio Amplifier
■ When using coaxial cable:
It is possible to output audio through the DIGITAL AUDIO COAXIAL terminal.
6
1
2
3
DIGITAL AUDIO INPUT
COAXIAL
Rear of the TV
Coaxial cable
■ When using audio cable:
This connection allows you to use an audio amplifier and external speakers, and adjust the audio level using the TV’s remote
control. (See page 27.)
6
1
2
3
ANALOG AUDIO INANALOG AUDIO IN
Rear of the TV
Audio cable
AUDIO-L (White)
AUDIO-R (Red)
Connecting a PC
■ When using HDMI cable (INPUT 4 or 5):
6
1
2
3
HDMI OUTHDMI OUT
HDMI-certified cable
Rear of the TV
NOTE
Depending on the board, only video signals may be output. In this case, in addition to connecting an HDMI-certified cable to
the INPUT 4 (HDMI1) terminal, connect an audio cable to the AUDIO PC/HDMI terminal and set “HDMI1 Audio” to “DVI”. (See
page 27.)
The HDMI terminals only support digital signal.
•
•
