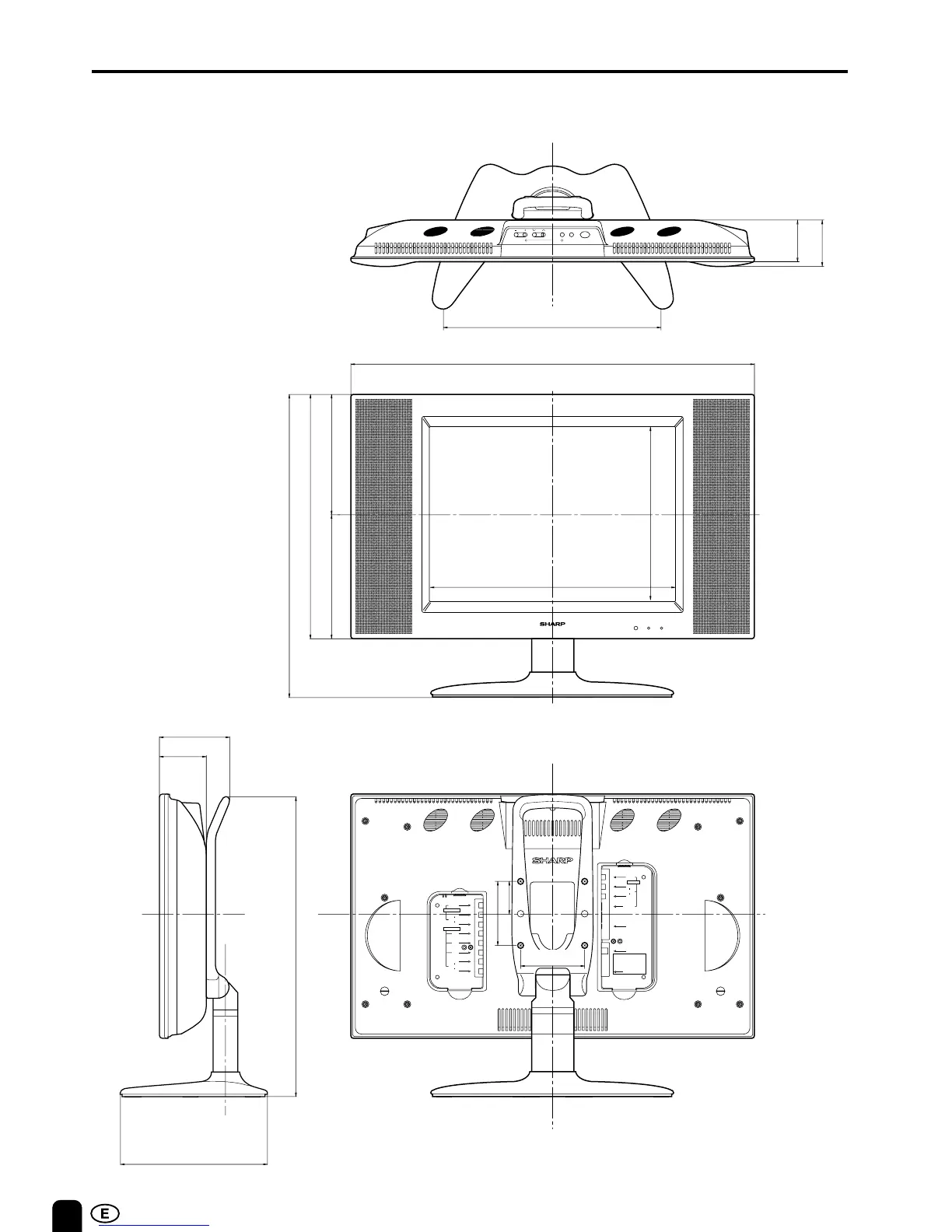

DIMENSIONAL DRAWINGS (Continued)
Unit: mm
LC-20B4M
ANT.
HEAD
PHONE
S-VIDEO
R
AUDIO
VIDEO
AV-IN1
L
AV-IN 2/OUT
COMPONENT
R
AUDIO
VIDEO
L
R
AUDIO
L
P
R
P B
Y
CHVOL TV/VIDEOMENU MAIN POWER
PRESET
1
2
POWER INPUT
DC13V
USE THE SUPPLIED
AC ADAPTER.
(PART NO. LOCATED ON
THE MODEL LABEL.)
68.6
471.5
300.8
381.5
193.5 188
76.1
420
630
470.3
110.7
249.6
76.1
403.3
100
51.5
100
POWER
SLEEP
