37

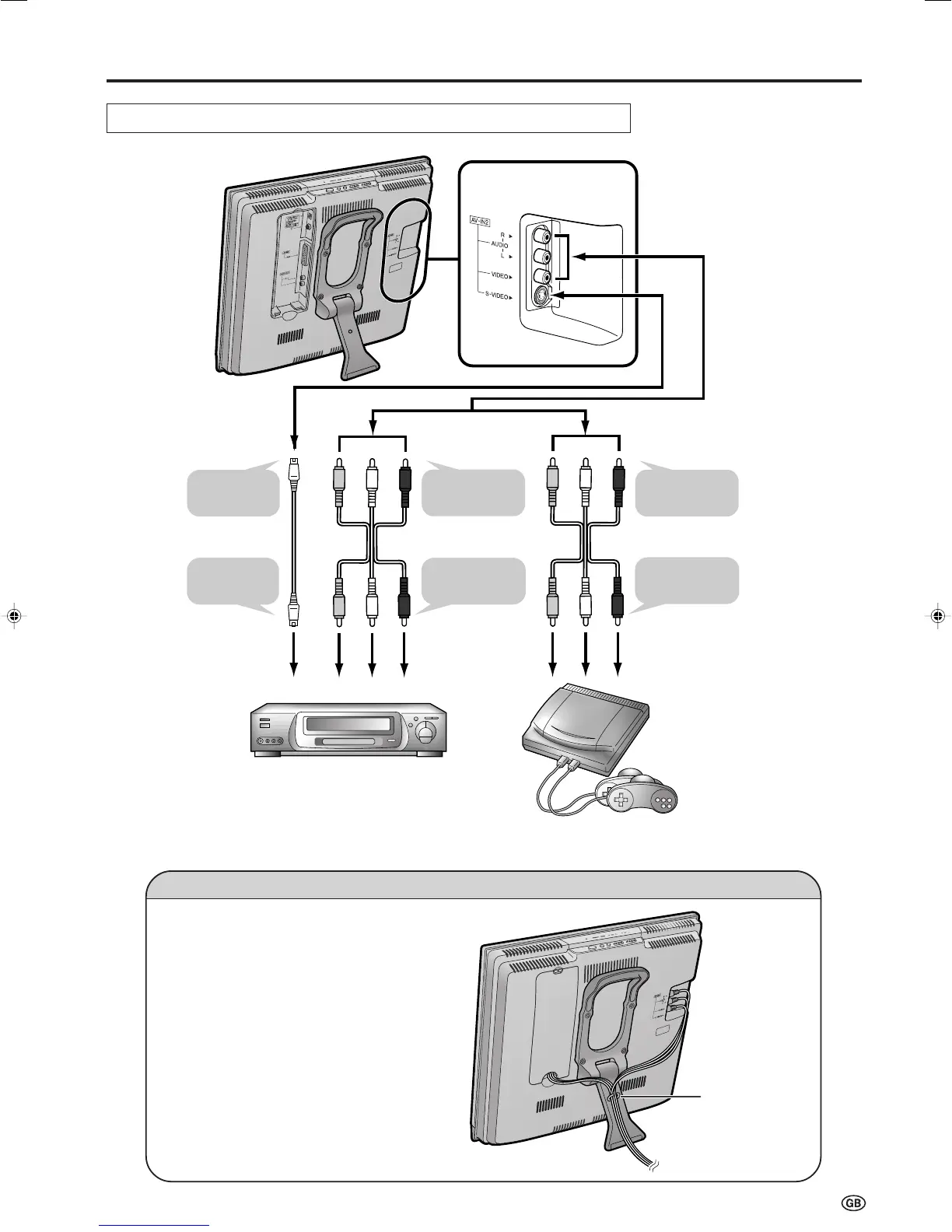

Connecting a VCR or a home video game system (AV-IN 2)
ANote:
• When connecting to both the VIDEO input and S-VIDEO input terminals for AV-IN 2, priority is given to the S-VIDEO input terminal.
Connecting External Devices (Continued)
How to fix the cables
• Secure cables and cords with the supplied
cable clamp so that they do not get caught
when mounting the cover.
Cable clamp
To S-VIDEO
input terminal
To S-Video
output terminal
S-Video cord
To AV-IN 2
terminals
To audio/video
output terminals
Audio/video cord
To AV-IN 2
terminals
To audio/video
output terminals
Audio/video cord
Video Audio
(L)
Audio
(R)
Video Audio
(L)
Audio
(R)
VCR
Home video
game system
LC-20S1E(E)-37-43 03.6.26, 10:09 AM37
