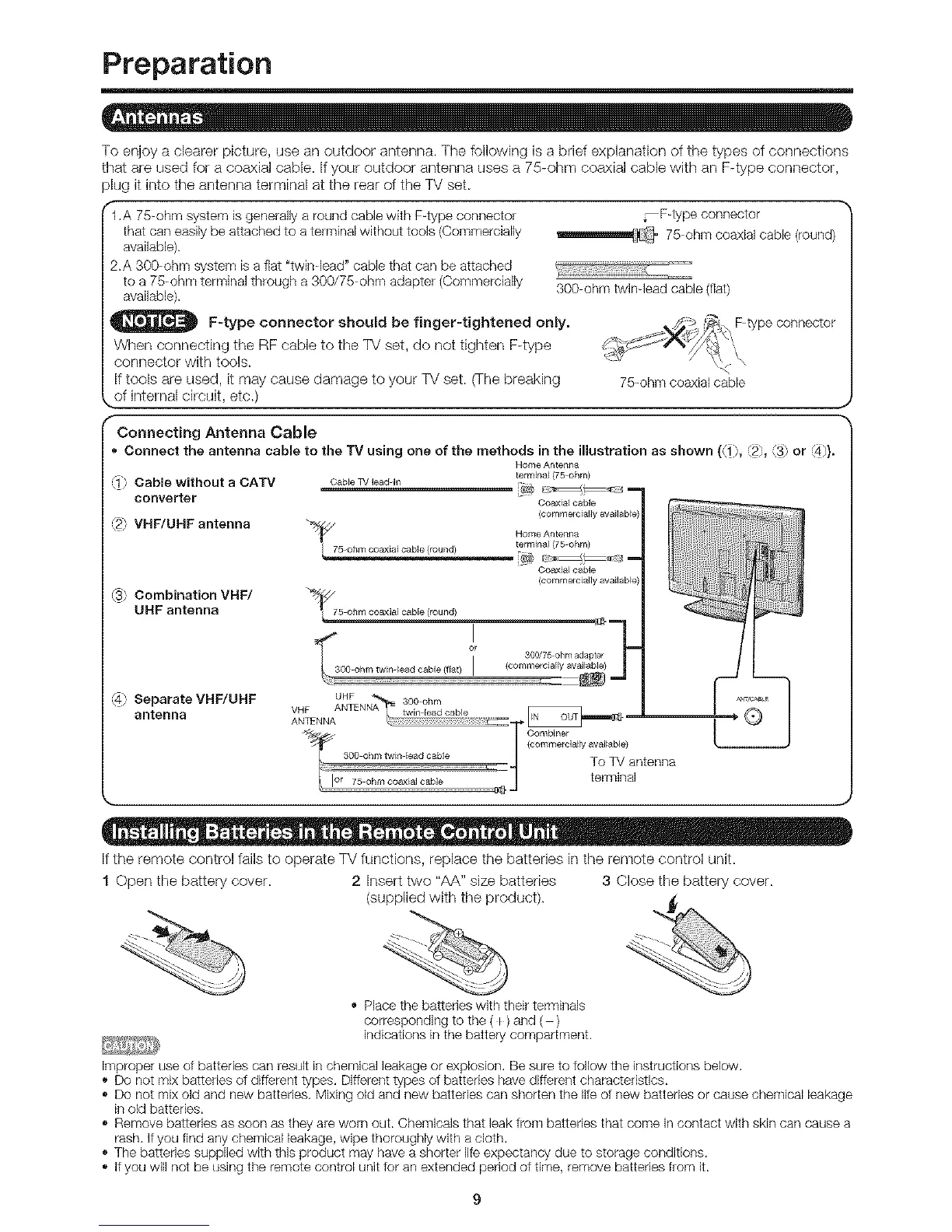

Preparation
To enjoy a clearer picture, use an outdoor antenna. The following is a brief explanation of tile types of connections
that are used for a coaxial cable. If your outdoor antenna uses a 75-ohrn coaxial cable with an F-type connector,
plug it into the antenna terminal at the rear of the TV set.
"-1.A 75_ohm system is generally a round cable with F4ype connector _F4ype connector "_
that can easily be attached to a terminal without tools (Commercially _ 75 ohm coaxial cable (round)
avaNable).
2.A 300-ohm system is a flat "twindead" cable that can be attached
to a 75-ohm terminal through a 300/75-ohm adapter (Commercially
available). 300 ohm twindead cable (fiat)
F-type connector should be finger-tightened only.
When connecting the RF cable to the TV set, do not tighten F-type
connector with tools.
If tools are used, it may cause damage to your TV set. (The breaking 75-ohm coaxial cable
of internal circuit, etc.)
Connecting Antenna Cable
• Connect the antenna came to the "IV using one of the methods in the illustration as shown (<1), ,2), 3, or ,,'4;).
Home Antenna
ter mina_ (75-ohm)
_1) Cable without a CATV Cable W leaddn ;;2 [-m_ m
converter ....
_,2_ VHF/UHF antenna
,,3, Combination VHF/
UHF antenna
_,4) Separate VHF/UHF
antenna
If the remote control fails to operate TV functions, replace the batteries in the remote control unit.
I Open the battery cover. 2 Insert two "AA" size batteries 3 Close the battery cover.
(supplied with the product).
o Place the batteries with their terminals
corresponding to the ( I ) and (-)
_*_J_[_F,_ indications in the battery compartment.
Improper use of batteries can resuR in chemical leakage or explosion. Be sure to follow the instructions below.
o Do not mix batteries of different types. Different types of batteries have different characteristics.
o Do not mix old and new batteries. Mixing old and new batteries can shorten the lite ot new batteries or cause chemical leakage
in old batteries.
o Remove batteries as soon as they are worn out. Chemicals that leak from batteries that come in contact with skin can cause a
rash. If you find any chemical leakage, wipe thoroughly with a cloth.
o The batteries supplied with this product may have a shorter life expectancy due to storage conditions.
o if you will not be using the remote control unit tot an extended period of time, remove batteries from it.
To Next Page
