12
To enjoy the AQUOS 1080p display capability, connect your external equipment using a component cable and set the
equipment to 1080p output.
See page 13 for connecting a Blu-ray disc player, DVD player or a Digital TV STB to the HDMI terminal.
The COMPONENT terminals take priority over the S-VIDEO (INPUT 2) terminal.
•
•
•

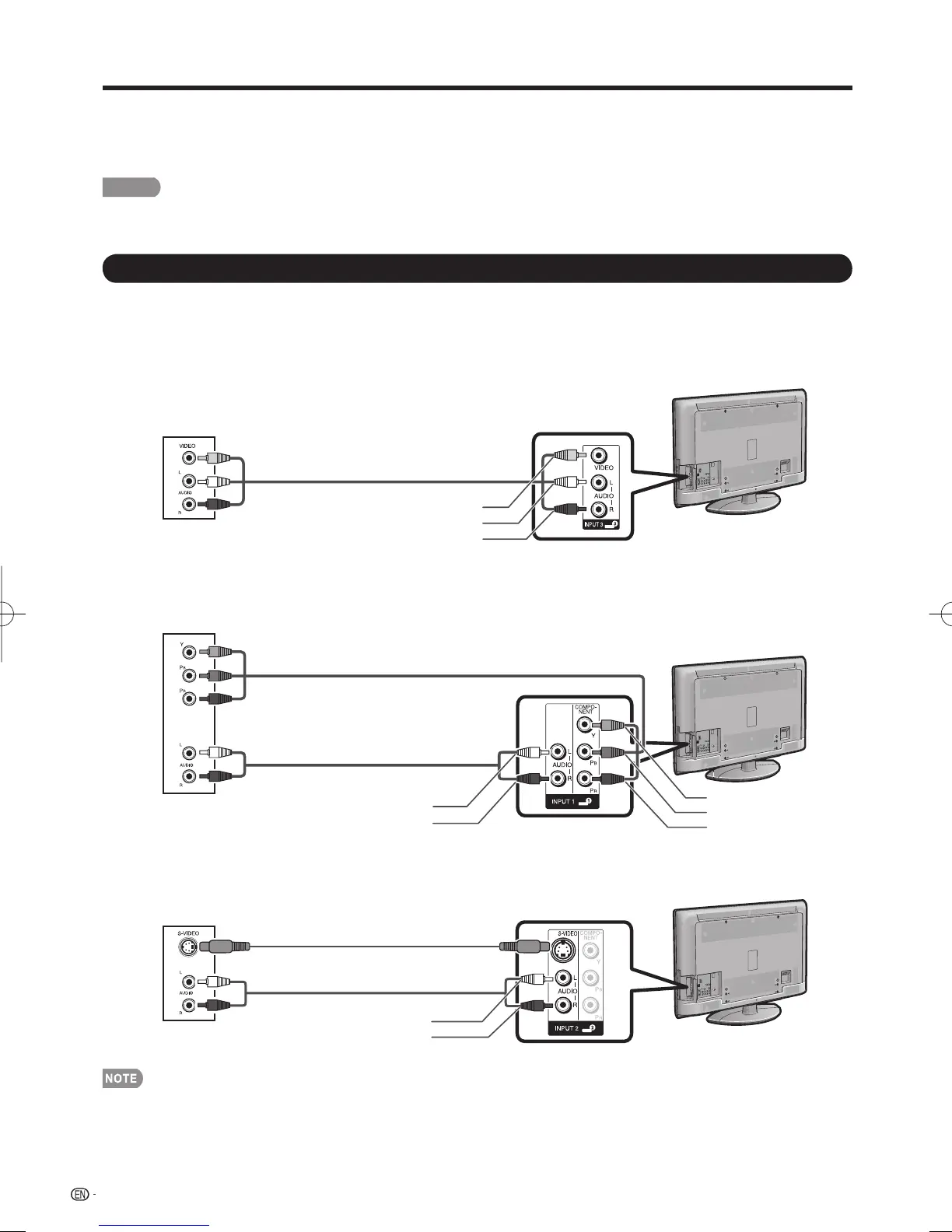

Connecting Audiovisual Equipment
You can use the INPUT 1, INPUT 2 or INPUT 3 terminals when connecting to a Blu-ray disc player, DVD player, a
Digital TV STB (Air or Cable), VCR, game console, and camcorder.
You can connect many types of external equipment to your TV like a Blu-ray disc player, DVD player, VCR, Digital
TV tuner, HDMI equipment, game console or camcorder. To view external source images, select the input source
from INPUT on the remote control unit or on the TV. (See page 15.)
CAUTION
To protect equipment, always turn off the TV before connecting any external equipment.
Please read the relevant operation manual (Blu-ray disc player, etc.) carefully before making connections.
•
•
When using S-VIDEO cable (INPUT 2):
AUDIO-L (White)
AUDIO-R (Red)
When using composite cable (INPUT 3):
AUDIO-L (White)
AUDIO-R (Red)
VIDEO (Yellow)
AV cable
(commercially available)
Blu-ray disc player/
DVD player/Digital TV STB
When using component cable (INPUT 1 or 2):
PR (Red)
PB (Blue)
Y (Green)
AUDIO-L (White)
AUDIO-R (Red)
Component video cable
(commercially available)
Audio cable
(commercially available)
Audio cable
(commercially available)
S-VIDEO cable
(commercially available)
Blu-ray disc player/
DVD player/Digital TV STB/VCR/
Game console/Camcorder
Connecting to External Equipment
VCR/Game console/
Camcorder
LC-40E67UNE77UNE.indb12LC-40E67UNE77UNE.indb12 2009/03/1316:20:132009/03/1316:20:13
