Sharp AQUOS LC-40LE820UN

14

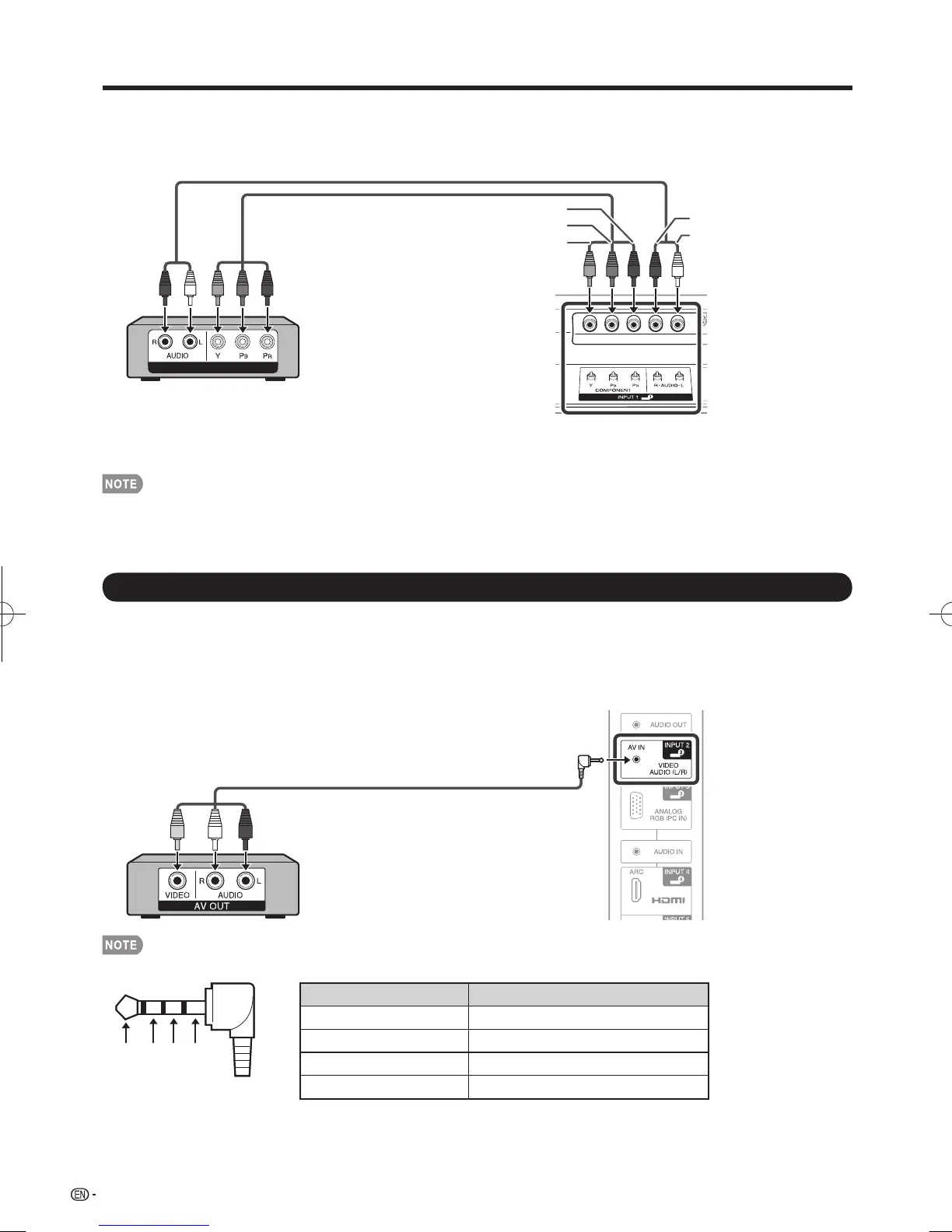

Connecting to External Equipment
■
When using Component cable (INPUT 1):
•
Blu-ray disc player
•
DVD player
• HD cable/satellite set-top box
COMPONENT OUT
Back panel
horizontal inputs
AUDIO-R (Red)
AUDIO-L (White)
Y (Green)
P
B
(Blue)
P
R
(Red)
Audio cable
Component video cable
• To enjoy 1080p display capability, connect your external equipment using an HDMI-certifi ed cable or a component cable and
set the equipment to 1080p output.
• See page 13 for connecting a Blu-ray disc player, DVD player or an HD cable/satellite set-top box to the HDMI terminal.
Connecting a VCR, Game Console, Camcorder or Cable/Satellite Set-top Box
■
When using Composite cable (INPUT 2):
•
Game console
•
VCR
•
Camcorder
• Cable/Satellite set-top box
Back panel
vertical inputs
AV cable (AV mini plug and RCA plugs)
• For the AV cable to connect to the INPUT 2 terminal, use a plug described below.
Pin number Description
1 AUDIO (LEFT)
2 Composite Video
3 A&V Ground (EARTH)
4 AUDIO (RIGHT)
12341234
