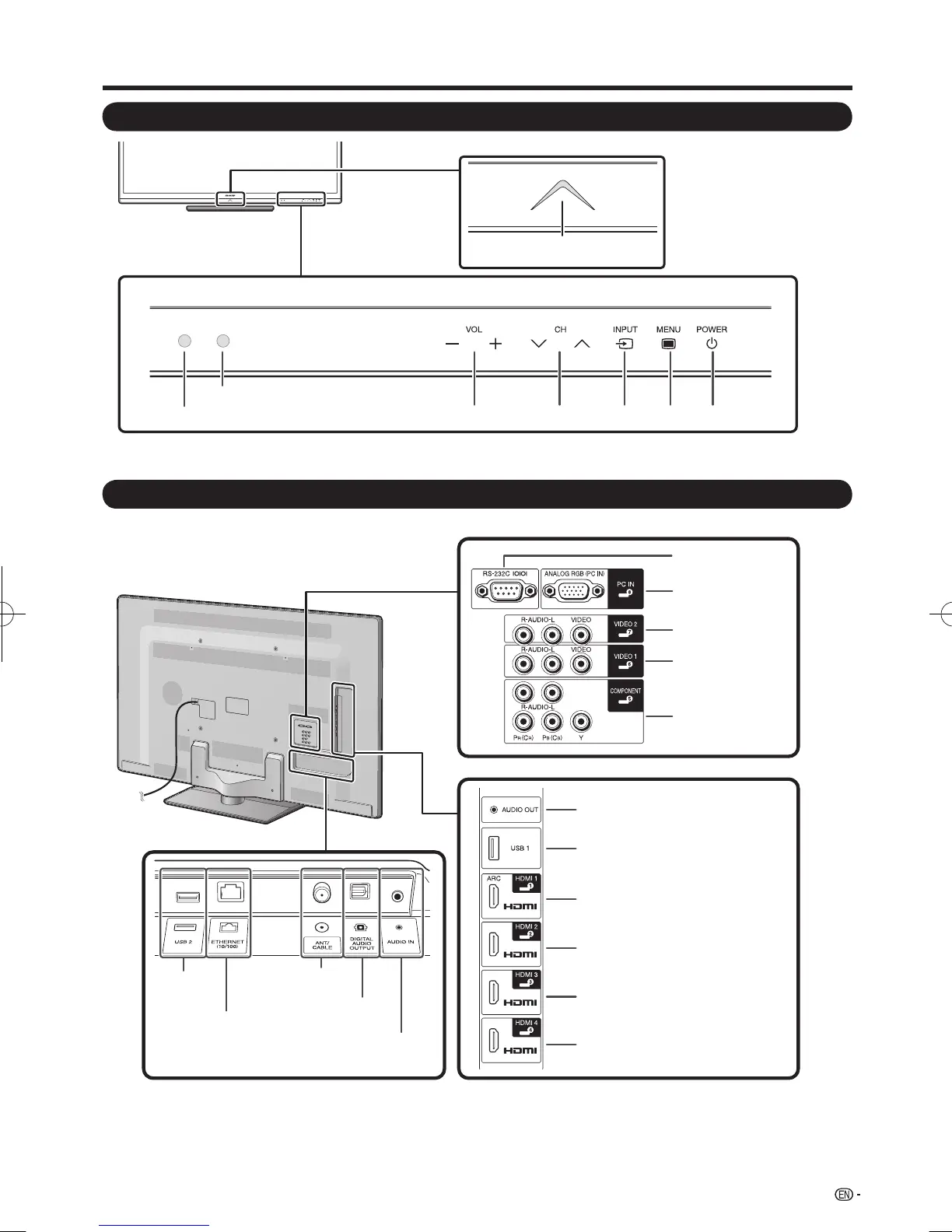

Part Names
TV (Front)
Center Icon illumination
(See page 33.)
POWER *2INPUT
VOL
l
/
k
MENU
Remote control sensor
OPC sensor *1
CH
V
/
U
*1 OPC: Optical Picture Control (See page 27.)
*2 See pages 18 and 25 for using the touch sensor panel.
TV (Rear)
RS-232C terminal
Antenna/
Cable in
COMPONENT
terminals
DIGITAL AUDIO
OUTPUT terminal
HDMI 3 terminal
HDMI 4 terminal
HDMI 1 terminal
ARC: Audio Return Channel
(See pages 52 and 53.)
VIDEO 2 terminals
VIDEO 1 terminals
AUDIO OUT terminal
USB 1 terminal
USB 2
terminal
ETHERNET
terminal
HDMI 2 terminal
PC IN terminal
*1
*1
*1
AUDIO IN terminal
(shared for PC IN
and HDMI 1)

*2
*1 See pages 13 to 17 and 52 for external equipment connection.
*2 See page 57 for details on the Audio Select function.
