Sharp AQUOS LC-42D64U

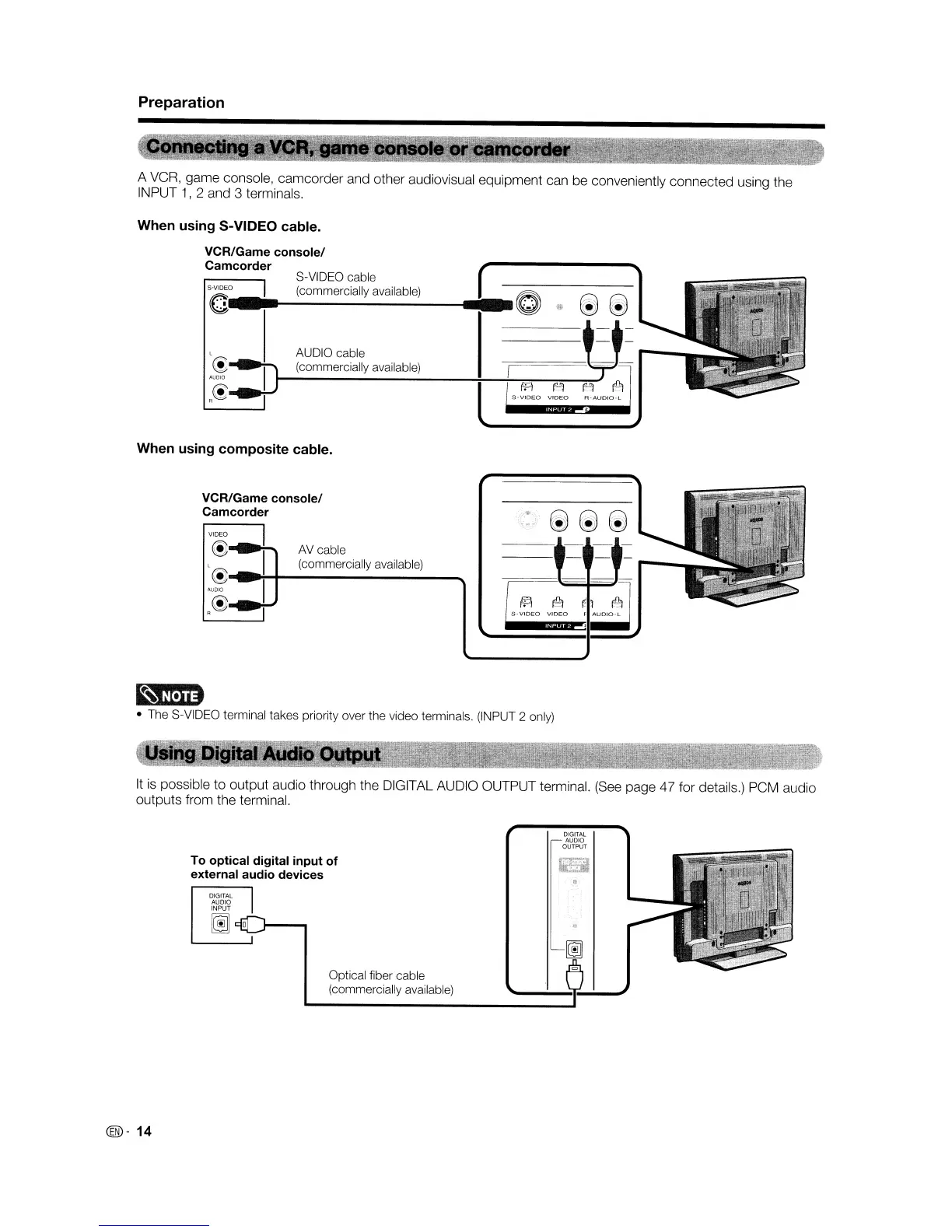

Preparation
A VCR, game console, camcorder and other audiovisual equipment can be conveniently connected using the
INPUT 1, 2 and 3 terminals.
When using S-VIDEO cable.
YCR/Game console/
Camcorder
S-VIDEO
0-
S-VIDEO cable
(commercially available)
AUDIO cable
(commercially available)
-0
When using composite cable.
YCR/Game console/
Camcorder
VIDEO
@ ~'""""" AV cable
L @ ~~_(_c_o_m_m_e_rc_i_al_ly_a_V_a_ila_b_le_) __ ,
R@-----
• The S-VIDEO terminal takes priority over the video terminals. (INPUT 2 only)
It is possible to output audio through the DIGITAL AUDIO OUTPUT terminal. (See page 47 for details.) PCM audio
outputs from the terminal.
DIGITAL
AUDIO
OUTPUT
To optical digital input of
external audio devices
DIGITAL
AUDIO
INPUT
~D
Optical fiber cable
(commercially available)
@- 14
