Part names (Continued)

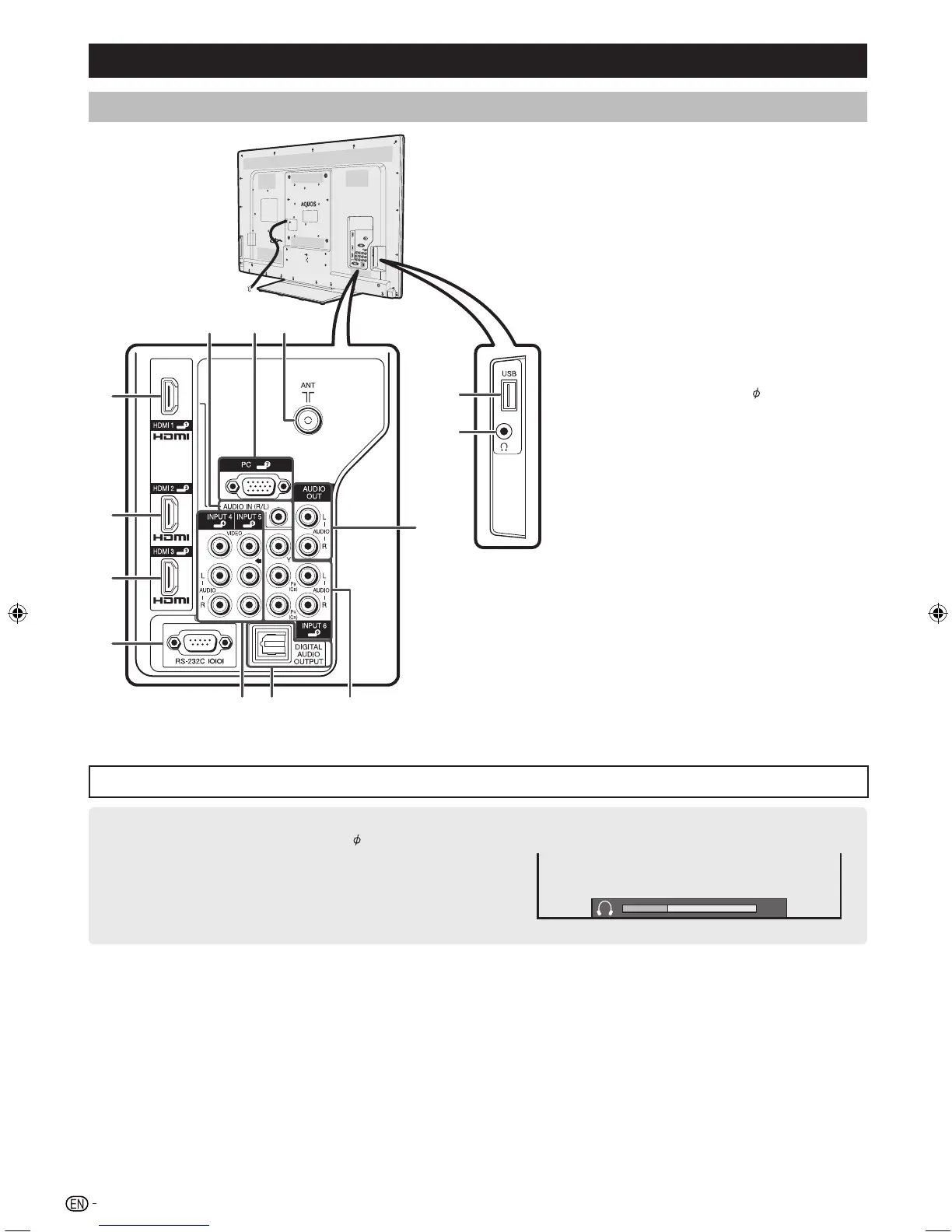

TV (Rear)
12
13
1
10
56 7
11
2
8
3
4
9
1 HDMI 1 terminal*
2 HDMI 2 terminal
3 HDMI 3 terminal
4 RS-232C terminal
5 INPUT 4/INPUT 5 terminals
6 DIGITAL AUDIO OUTPUT terminal
7 INPUT 6 terminals
8 AUDIO OUT terminals
9 AUDIO IN (R/L) terminal
10 PC terminals*
11 Antenna input terminal
12 USB terminal
13 Headphone jack (
3.5 mm)
•
The speakers do not output
volume when headphones are
plugged in.
* The HDMI1 and PC terminals can both use the same audio input terminal. However, the proper item must be selected in the “PC
audio select” menu. (See page 16)
• The illustrations in this operation manual are for explanation purposes and may vary slightly from the actual operations.
Regarding the headphone jack
• Use headphones with a stereo mini plug ( 3.5 mm).
• Be sure to unplug headphones from the jack when they are not
in use.
• The speakers do not output volume when headphones are
plugged in.
• The “Audio” menu cannot be operated when headphones are
plugged in.
Volume display when headphones are plugged in
