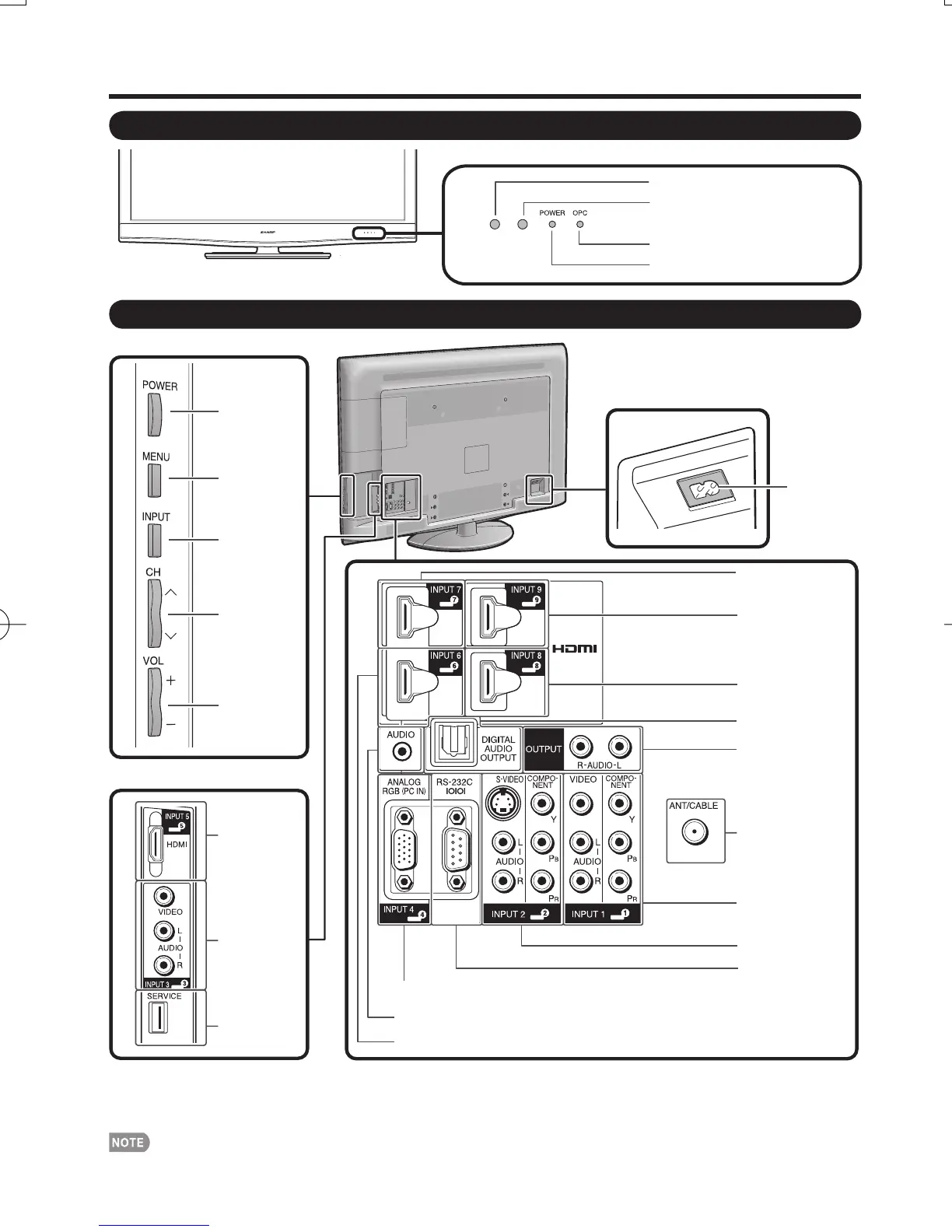

Part Names
TV (Front)
OPC indicator
(See page 18.)
POWER indicator
(See page 12.)
OPC sensor
* (See page 18.)
Remote control sensor
TV (Rear/Side)
AC INPUT
terminal
POWER
button
MENU
button
INPUT
button
Channel
buttons
(CH
U
/
V
)
Volume
buttons
(VOL
k
/
l
)
RS-232C terminal
DIGITAL AUDIO
OUTPUT terminal
INPUT 7 terminal
(HDMI)
INPUT 9 terminal
(HDMI)
INPUT 8 terminal
(HDMI)
INPUT 6 terminal (HDMI)
INPUT 4 terminal (PC-IN)
AUDIO terminal (shared for INPUT 4 and INPUT 6) *4
Antenna/Cable in
INPUT 1 terminals
INPUT 2 terminals
AUDIO OUTPUT
terminals
INPUT 3
terminals
SERVICE
terminal
INPUT 5
terminal
(HDMI)
*1
*2
*3
*1
*1 See page 11 for external equipment connection.
*2 See page 17 for button operations.
*3 See page 8 for connecting the AC cord.
*4 See page 24 for details on the PC Audio Select function.
• The illustrations in this operation manual are for explanation purposes and may vary slightly from the actual operations.
• The examples used throughout this manual are based on the LC-C5277UN model.
* OPC: Optical Picture Control
LC-C465277UNE.indb10LC-C465277UNE.indb10 2009/03/1818:18:042009/03/1818:18:04
