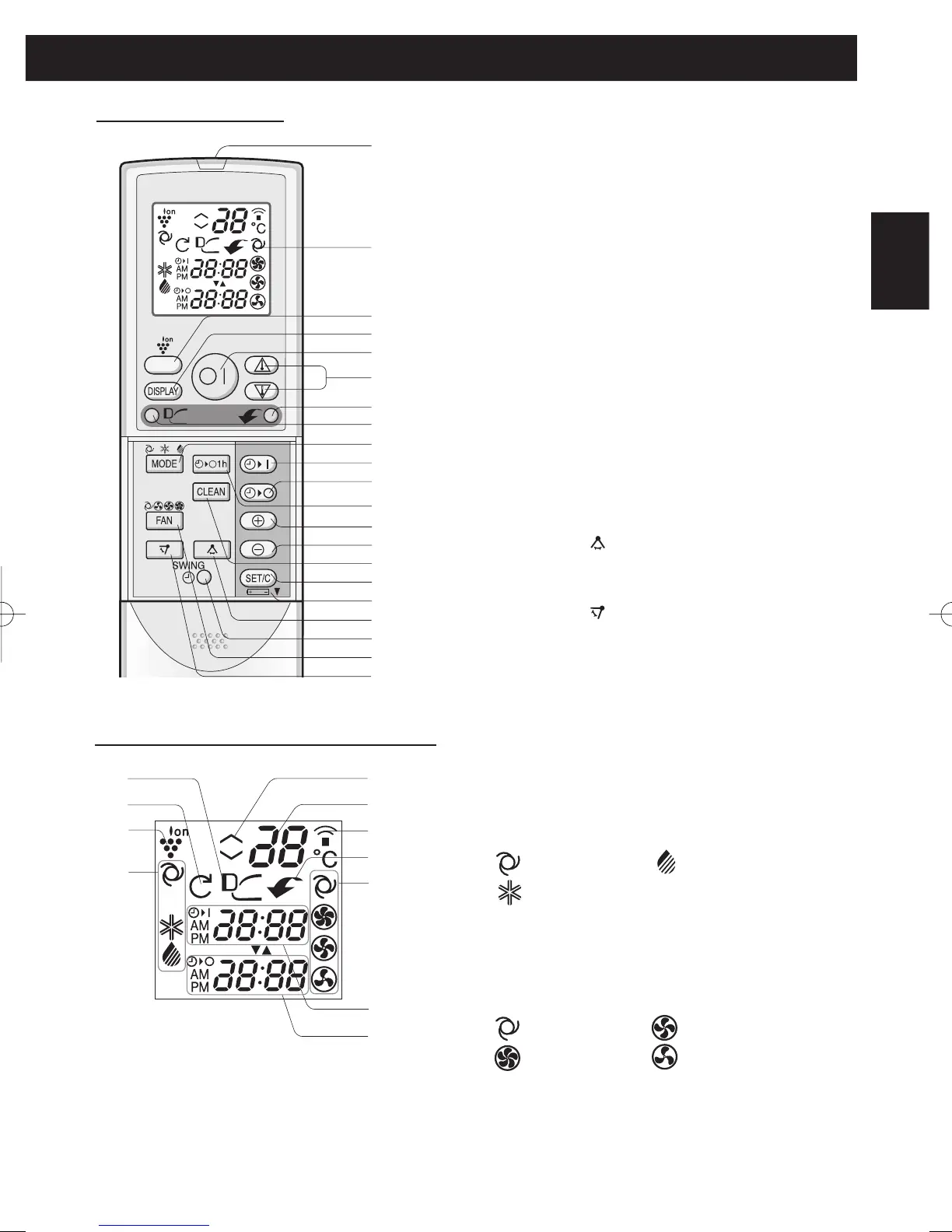

REMOTE CONTROL
1
TRANSMITTER
2
DISPLAY (Liquid Crystal Display)
3
PLASMACLUSTER Button
4
DISPLAY Button
5
ON/OFF Button
6
THERMOSTAT Button
7
POWERFUL JET Button
8
GENTLE COOL AIR Button
9
MODE Button
0
TIMER ON Button (for setting the timer)
q
TIMER OFF Button (for setting the timer)
w
ONE-HOUR OFF TIMER Button
e
TIME ADVANCE Button
r
TIME REVERSE Button
t
SELF CLEAN Button
y
TIMER SET/CANCEL Button
u
Indicates battery compartment is below this mark
i
SWING Button (
: horizontal direction)
o
CLOCK Button
p
FAN Button
a
SWING Button (
: vertical direction)
L.C.D. REMOTE CONTROL DISPLAY
!
GENTLE COOL AIR Symbol
@
SELF CLEAN Symbol
#
PLASMACLUSTER Symbol
$
MODE Symbols
: AUTO : DRY
: COOL
%
Thermostat setting for AUTO and DRY modes
^
TEMPERATURE Indicator
&
TRANSMITTING Symbol
*
POWERFUL JET Symbol
(
FAN SPEED Symbols
: AUTO : LOW
: HIGH : SOFT
)
TIMER ON Indicator/CLOCK
Indicates the on timer preset time or current time.
Q
TIMER OFF Indicator
Indicates the preset time for off timer or one-hour off
timer.
1
2
3
4
5
6
7
8
9
0
q
w
e
r
t
y
u
i
o
p
a
!
@
#
$
%
^
&
*
(
)
Q
