Sharp AY-AP7FHR - Component Identification; Indoor Unit Parts

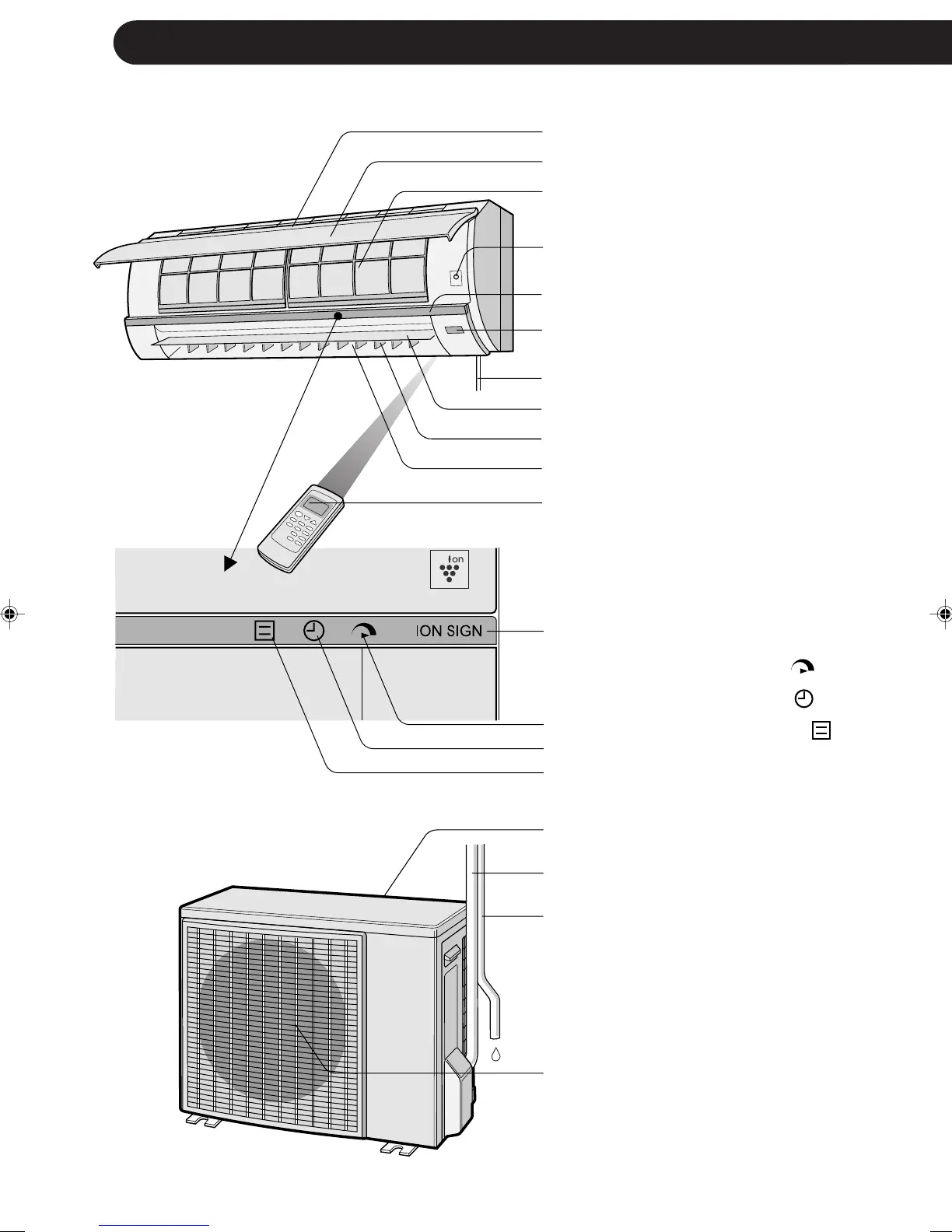

PART NAMES
1 Inlet (Air)
2 Open Panel
3 Air Filters
4 AUX. Button
5 Indicator
6 Receiver Window
7 Power Supply Cord
8 Vertical Adjustment Louvre
9 Horizontal Adjustment Louvres
0 Outlet (Air)
q Remote Control
w PLASMACLUSTER Lamp (blue)
e TURBO Lamp (green )
r TIMER Lamp (orange )
t OPERATION Lamp (red )
OUTDOOR UNIT
NOTE: Actual units might vary slightly from those shown above.
INDOOR UNIT (AY-AP7FHR/AY-AP9FHR)
1
2
3
4
5
6
7
8
9
0
q
y Inlet(Air)
u Refrigerant Tube and
Interconnecting Cord
i Drainage Hose
o Outlet(Air)
E-4
w
e
r
t
y
u
i
o
