Sharp AY-XP08CE - COMPONENT IDENTIFICATION; REMOTE CONTROL; L.C.D. REMOTE CONTROL DISPLAY

DISPLAY
FULL
POWER
SWING
CLEAN
FAN
MODE
SET/C
1h

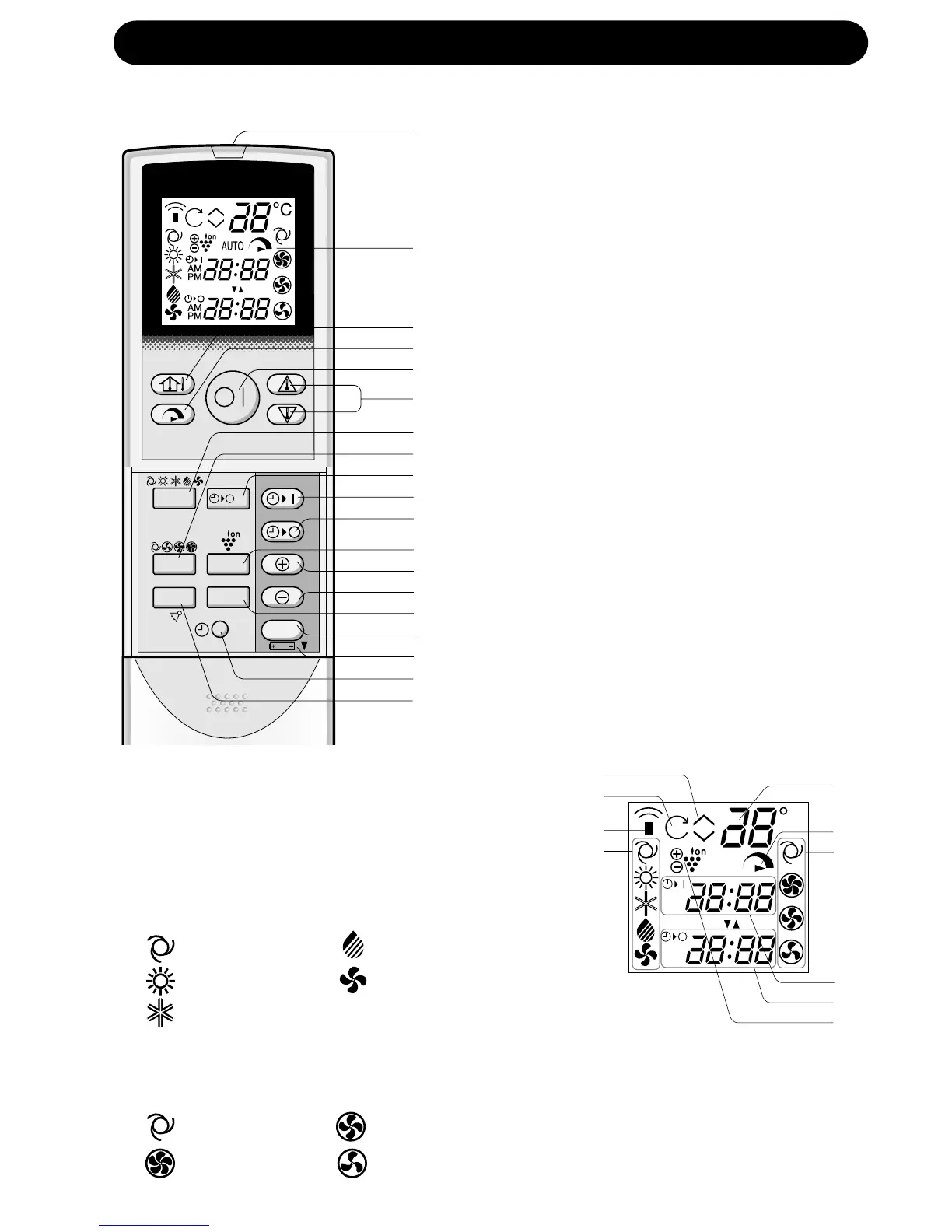

REMOTE CONTROL
1 TRANSMITTER
2 DISPLAY (Liquid Crystal Display)
3 DISPLAY Button
4 FULL POWER Button
5 ON/OFF Button
6 THERMO. (Thermostat) Button
7 MODE Button
8 FAN Button
9 ONE-HOUR OFF TIMER Button
0 TIMER ON Button (for setting the timer)
q TIMER OFF Button (for setting the timer)
w PLASMACLUSTER Button
e TIME ADVANCE Button
r TIME REVERSE Button
t SELF CLEAN Button
y TIMER SET/CANCEL Button
u Indicates BATTERY COMPARTMENT is
below this mark
i CLOCK Button
o SWING Button
j TIMER ON INDICATOR/CLOCK
Indicates the on timer preset time or current
time.
k TIMER OFF INDICATOR
Indicates the preset time for off timer or one-
hour off timer.
l PLASMACLUSTER SYMBOL
E-4
p THERMOSTAT SETTING FOR AUTO AND
DRY MODES
a SELF CLEAN SYMBOL
s TRANSMITTING SYMBOL
d MODE SYMBOLS
: AUTO : DRY
: HEAT : FAN ONLY
: COOL
f TEMPERATURE INDICATOR
g FULL POWER SYMBOL
h FAN SPEED SYMBOLS
: AUTO : LOW
: HIGH : SOFT
L.C.D. REMOTE CONTROL DISPLAY
PART NAMES
1
2
3
4
5
6
7
8
9
0
q
w
e
r
t
y
u
i
o
p
a
s
d
f
g
h
j
k
l
C
AM
PM
AM
PM
AUTO
