Sharp AY-XP24LR Service Manual

AYXPC18LR
9

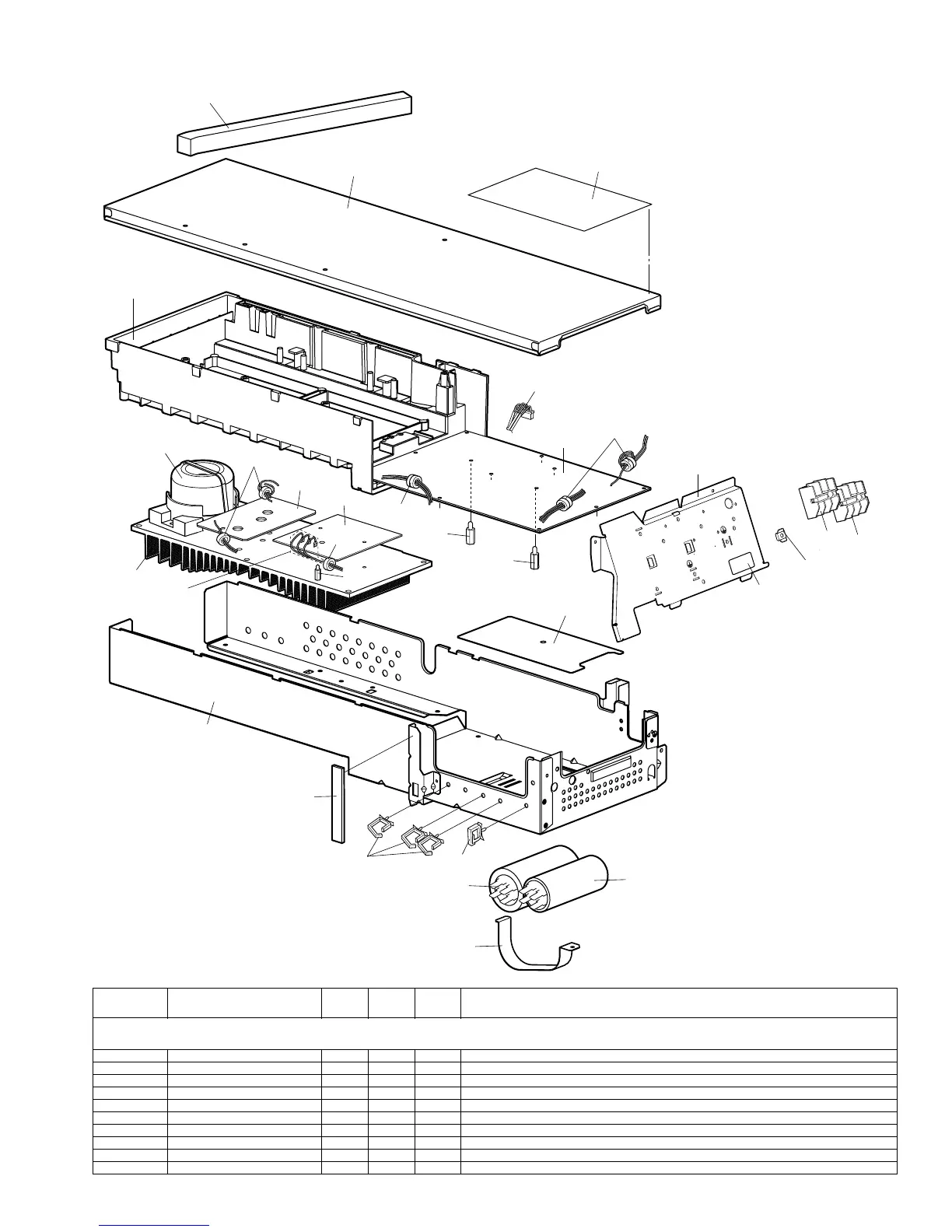

[7] CONTROL BOX PARTS
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
[7] CONTROL BOX PARTS
3-1 LANG-A733JBWZ AK Terminal Angle
3-3 LHLD-B067JBEZ AN Washer
3-5 QTANZA072JBZZ AR Terminal Board
3-7 QTANZA071JBZZ AV Terminal Board
3-13 RNF--A001VBE0 AF Ferrite Core
3-16 TLAB-E833JBRZ AK Label
3-17 DBOX-A087JBWZ AZ Control Box Assembly
3-19 DSGY-E129JBKZ BT Control Board Unit [18]
3-19 DSGY-E163JBKZ BZ Control Board Unit [24]
3-20 DSGY-E127JBKZ BW Power Transistor
(to CN8A)
x6
3-53
3-39
3-1
3-13
3-13
3-42
3-17
3-38
3-50
3-51
3-37
3-36
3-36
3-24
3-26
3-44
3-59
3-61
3-19
3-54
3-7
3-5
3-3
3-16
3-40
3-41
3-21
3-20
3-45
3-25
3-58
