This section provides general information about the machine, including the names and functions of the parts of the
machine and its peripheral devices, and the procedures for placing originals and loading paper.

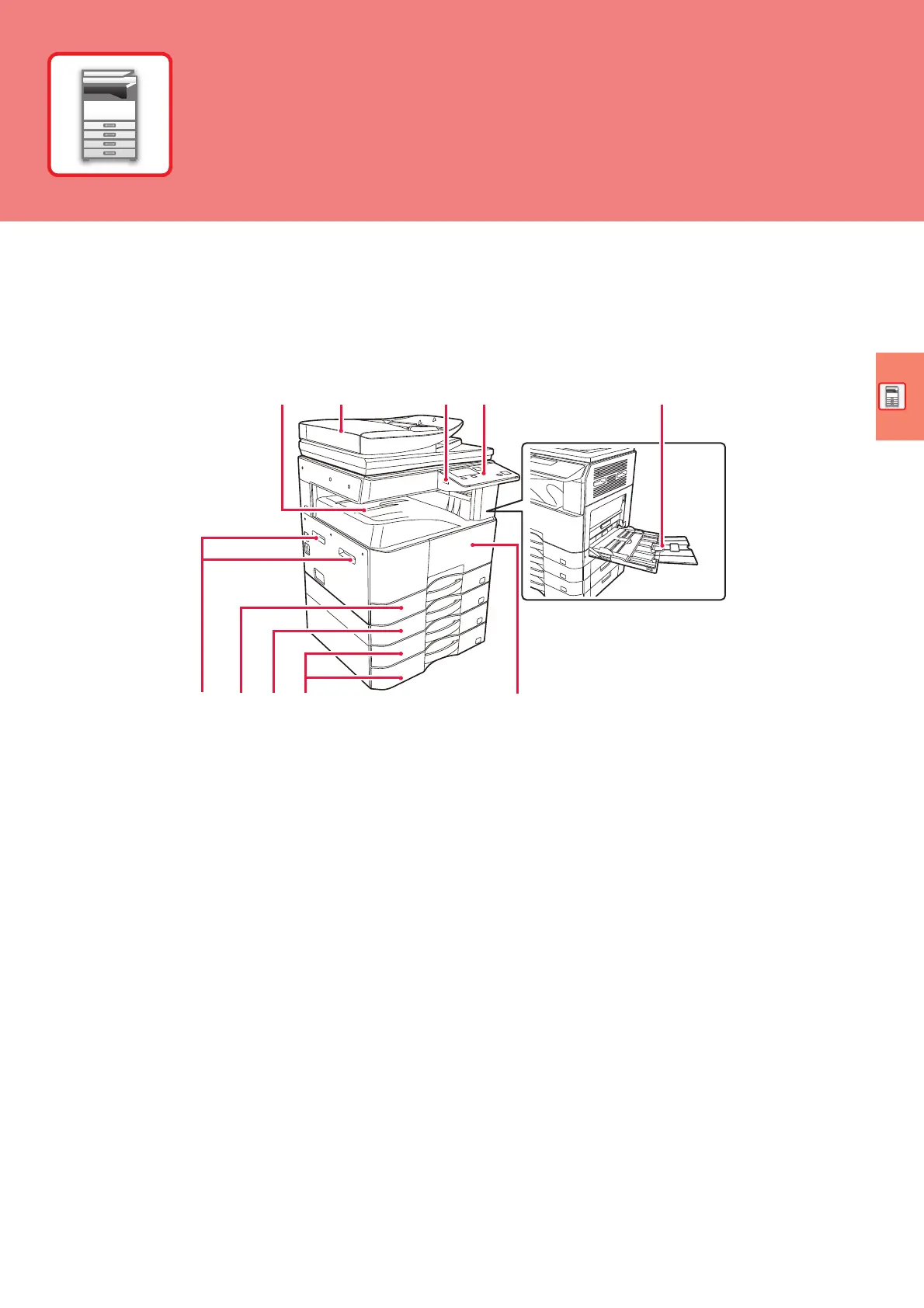

PART NAMES AND FUNCTION
(1) Output tray (exit tray cabinet)
Printed papers are delivered to this tray.
(2) Automatic document feeder
(BP-20M22/BP-21M22/BP-20M24/BP-20M28/BP-20M31)
It automatically feeds and scans multiple originals. 2-sided
originals can be automatically scanned.
(3) USB port (A type)
This is used to connect a USB device such as a USB
memory device to the machine.
Supports USB 2.0 (Hi-Speed).
(4) Operation panel
This panel hosts indicators and operation keys.
(5) Bypass tray
Use this tray to feed paper manually.
When loading paper, also open the extension tray.
(6) Handle
Grasp it when moving the machine.
(7) Tray 1
Store paper in this tray.
(8) Tray 2 (when a 500-sheet paper feed tray is
installed)
*1
Store paper in this tray.
(9) Tray 3 - 4 (when stand/2x500 sheet paper drawer is
installed)*
2
Store paper in this tray.
Can only be installed when a 500-sheet paper feed tray
is installed.
(10) Front cover
Open this cover to replace a toner cartridge.
*1 BP-20M22/BP-20M24/BP-20M24L: optional, BP-21M22/BP-20M28/BP-20M31: standard
*2 Optional
