LOADING PAPER

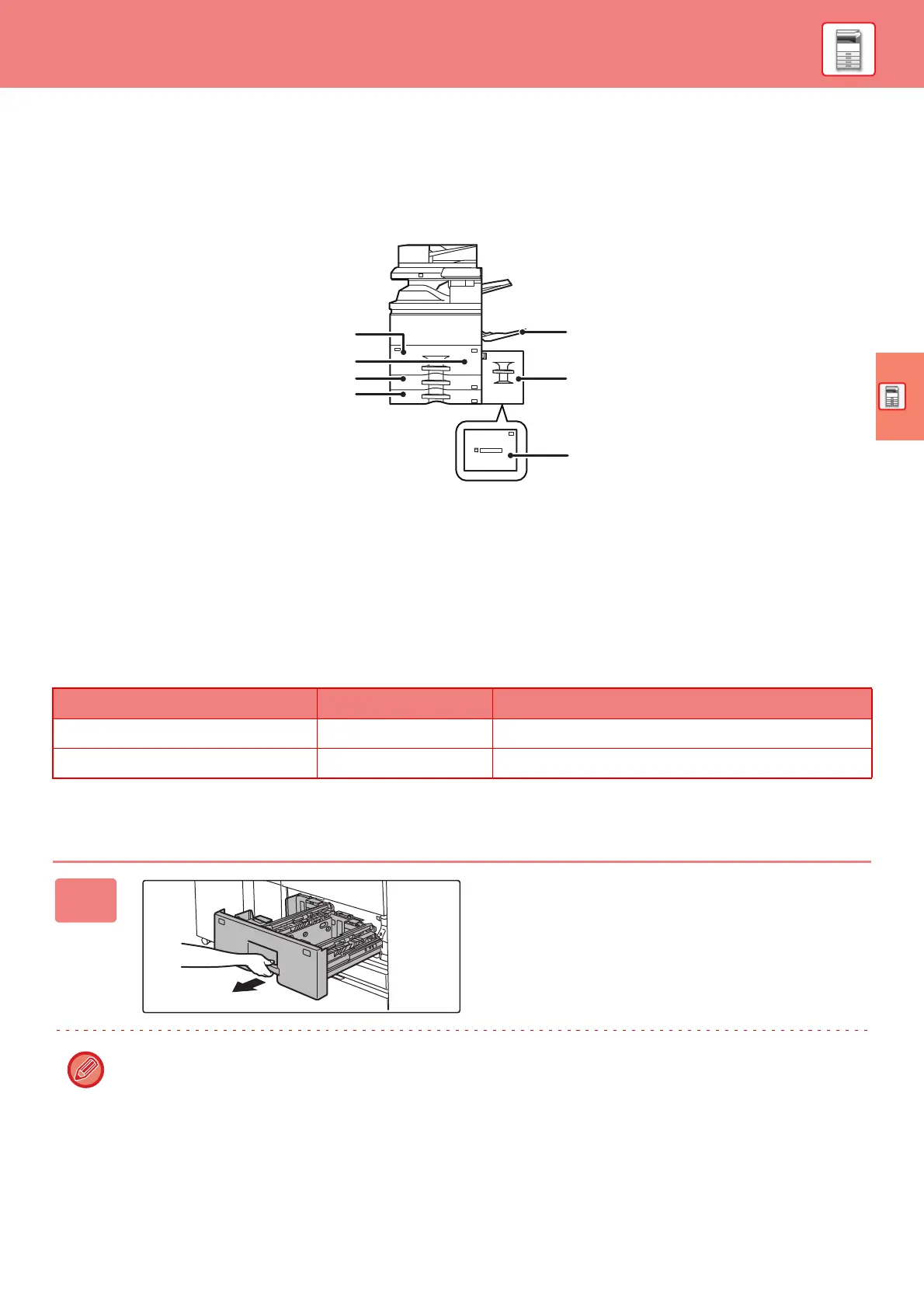

NAMES AND LOCATIONS OF TRAYS
The names of the trays are as follows.
(1) Tray 1
(2) Tray 2
(3) Tray 3
(4) Tray 4
(5) Bypass tray
(6) Tray 5 (BP-LC11)
(7) Tray 5 (MX-LC19)
Setting orientation of the print side
The setting orientation varies for the print side of paper, depending on the tray used. For "Letter Head" and
"Pre-Printed", set the paper in the reverse orientation.
Place with the print side facing the direction indicated below.
LOADING PAPER IN THE TRAY 1/2
Tray In normal status With letter head or pre-printed paper set
Trays 1 - 4 Facing up Facing down
Bypass tray, Tray 5 Facing down Facing up
1
Pull out the paper tray.
Gently pull the tray out until it stops.
Keep holding the handle until the lock is released.
To Next Page
