Sharp CD-C3400 - Exploded Views; CD Mechanism Exploded View

CD-C472/C3400/C3400C/C3800/C3800C
– 10 –
A
B
C
D
E
F
G
H
1
23456

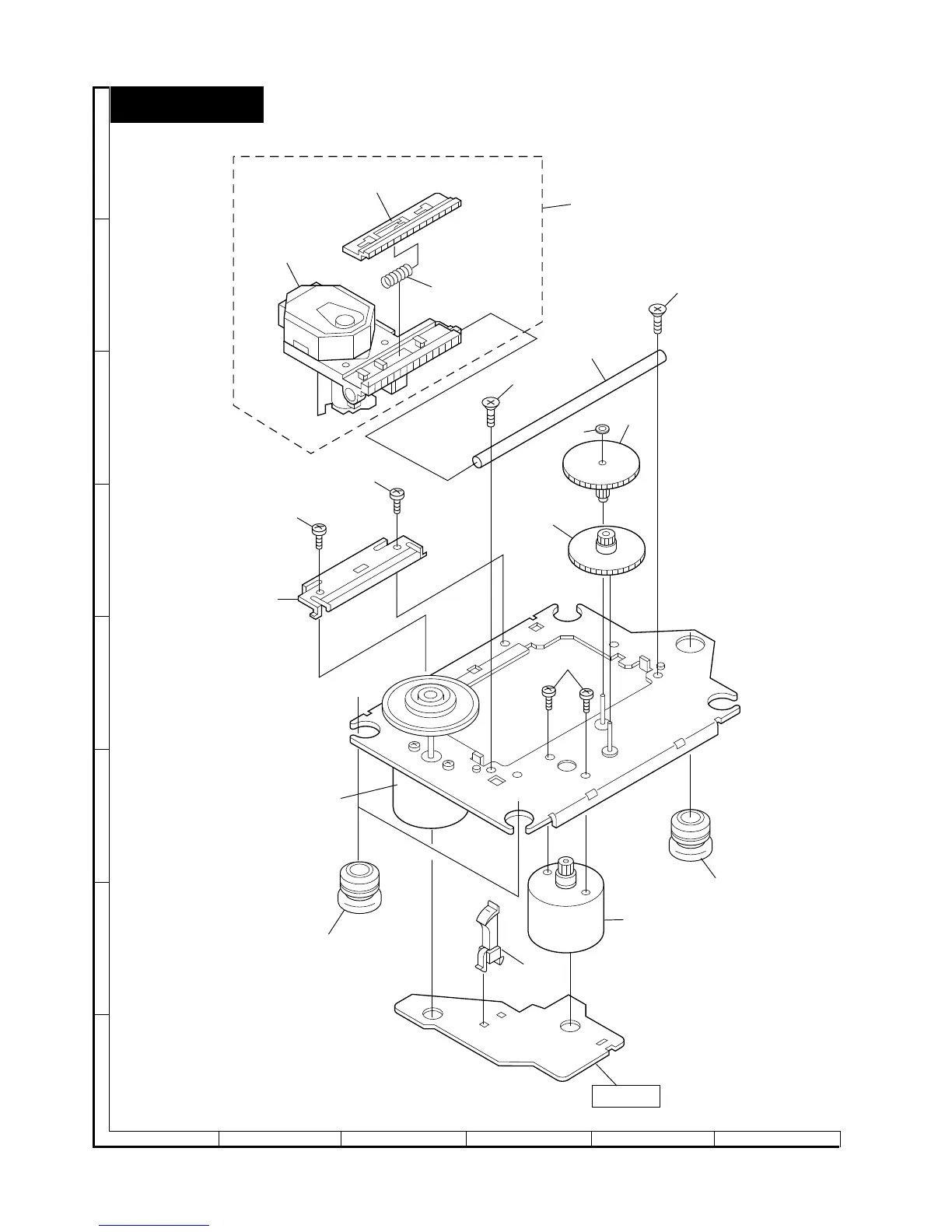

Figure 9 CD MECHANISM EXPLODED VIEW
– 9 –
CD-C472/C3400/
C3400C/C3800/C3800C
306-1
701
304
701
302
301
702
702
303
M1
703
305x2
SW4
M2
305
PWB-E
306-2
306-3
306
704
